Specifications
Octangle array of 14 lightheads which provide 360° seamless brightness.
Non-volatile memory recalls last flash pattern used at power up.
Split flash and colour option for various applications.
24 selectable flash patterns with rotating patterns.
Multiple unit synchronisation.
Reverse polarity protection.Product Specifications
Product code 06390013 Product Name Microbar EX - AA (1-Bolt Mount) Categories Warning Lamps, Microbar EX Minibar, Lightbars, Minibars Product Type Products Dimensions Height 37mm (1.45") Dimensions Width 172mm (6.77") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 6.2A@12VDC / 3.1A@24VDC Operating Temperature -30°C~+65°C Maximum Power 74W Synchronisation 15 Unit Sync Lightbar Length 0400mm (16") LED Colour Amber LEDs Fuse Rating 9A Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option 1-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 42x LEDs Lighthead Quantity 14x Lightheads IP Rating IPX5 Flash Patterns 24 Flash Patterns Wire Length 300mm Gross Weight 2.5kg Conductor Cross-Section 0.75mm² (18AWG) Warranty 5 Year Warranty -
Spare Parts
-
-
- Lightheads
- 3x LEDs
- 2 Pin Connector
- T.I.R Optics
- 12VDC~24VDC
-
-

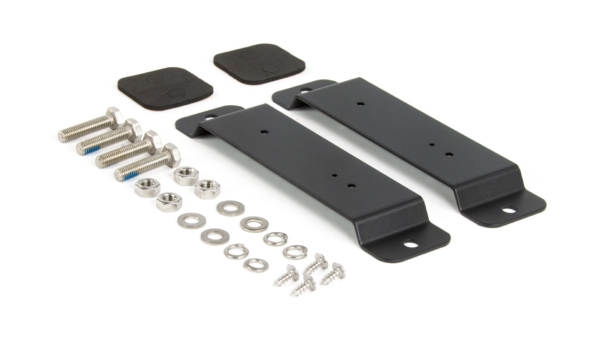

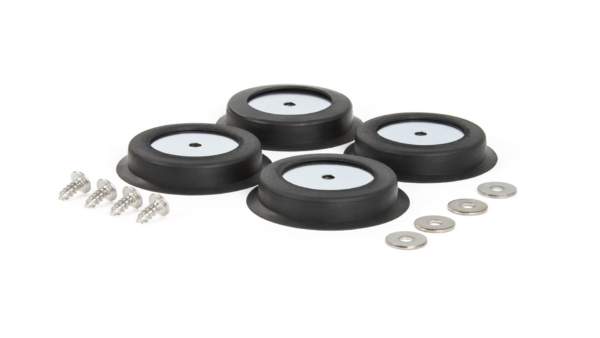

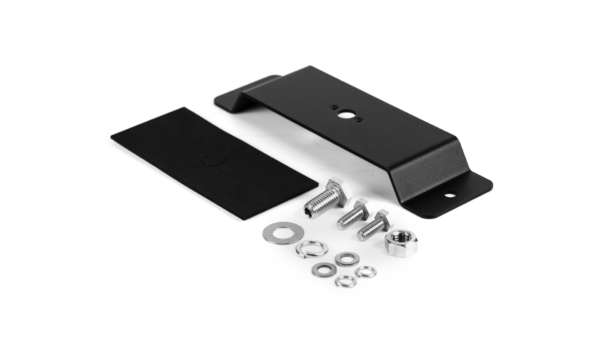

Mounting
-
- Downloads
