Specifications
Powerful output with SAE Class 1 certified output.
Built-in 25 selectable flash patterns and 3 modes (Top-Down, Left-Right, Criss-Cross).
Solid aluminium housing for efficient heat dissipation and maximum durability.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant design forexternal or internal use.
Non-volatile memory recalls last flash pattern used at power up.
Built-in Low Power function.Product Specifications
Product code 02040806 Product Name MS26 Warning Module (Horizontal) - Red Categories Warning Lights, Directionals, Mini Stealth, Modules, MS26 Product Type Products Dimensions Length 131.8mm (5.19") Dimensions Height 48.7mm (1.92") Dimensions Width 19.2mm (0.76") Colour Type Single Colour Maximum Current 1.15A@12VDC / 0.75A@24VDC Maximum Power 18W Synchronisation 15 Unit Synchronisation LED Colour Red LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XR2), SAE J595 Class 1, CA13 Optic Type T.I.R Optics Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 12x LEDs IP Rating IP67 Flash Patterns 25 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.20kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

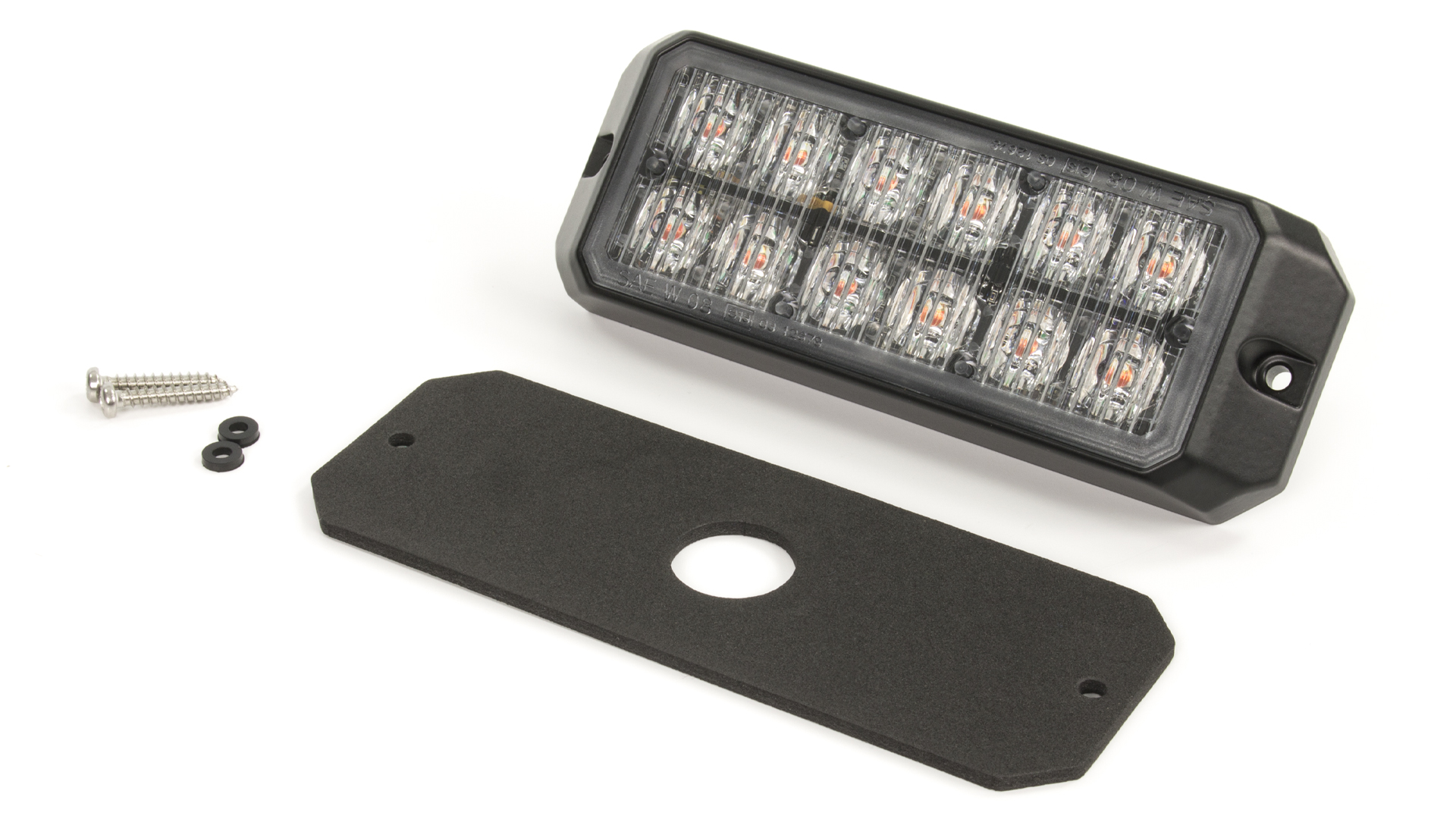

Mounting
-
- Downloads
