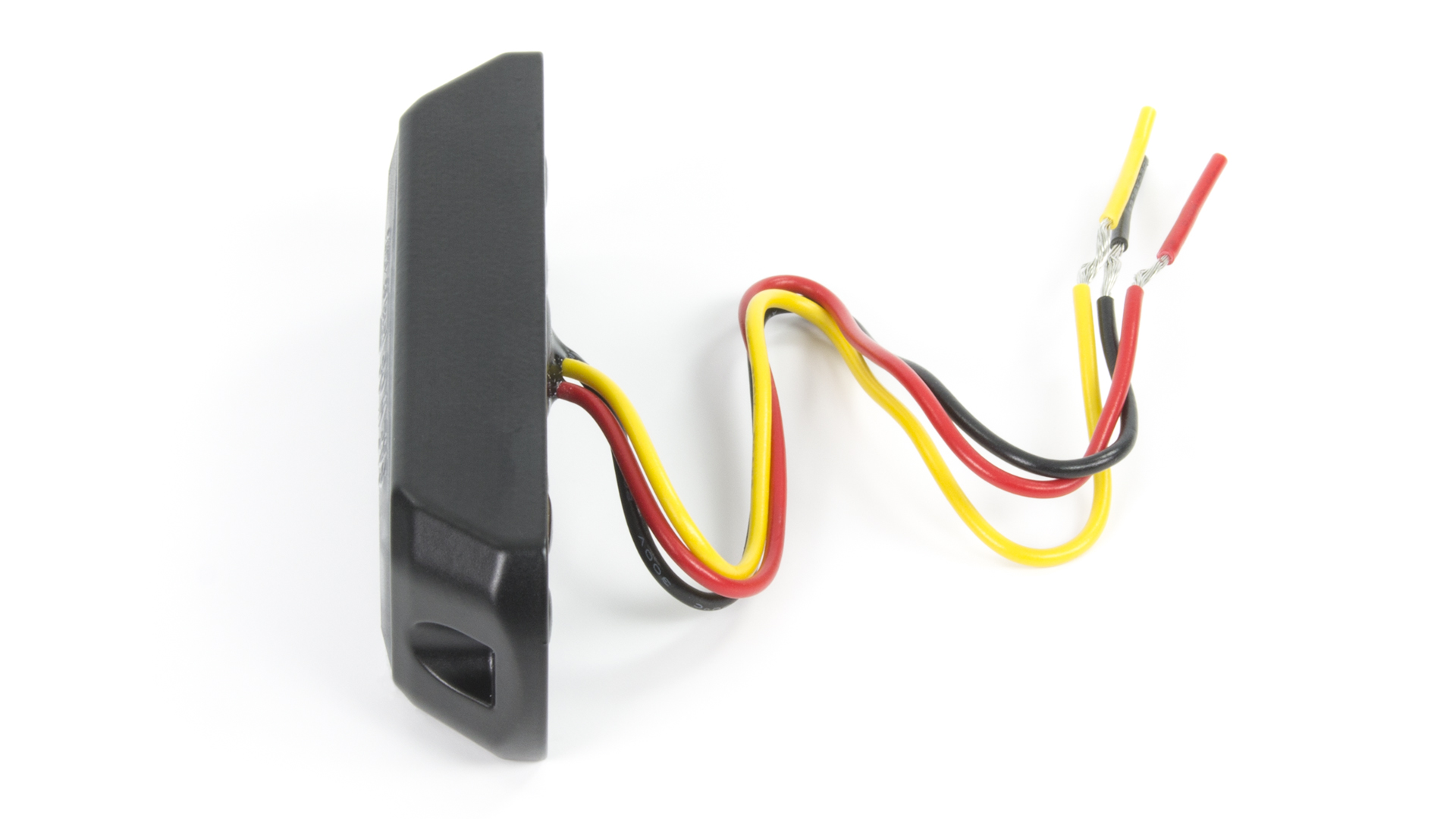

Specifications
Powerful output with ECE R65 Class 1 and SAE Class 1 certified output.
Low-profile Surface mount base or C-clamp base for versatile discreet mounting.
Solid aluminium housing for efficient heat dissipation and maximum durability.
Weatherproof and vibration resistant design for internal or external use.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Built-in 5 Selectable Flash Patterns.
Reverse polarity protection.Product Specifications

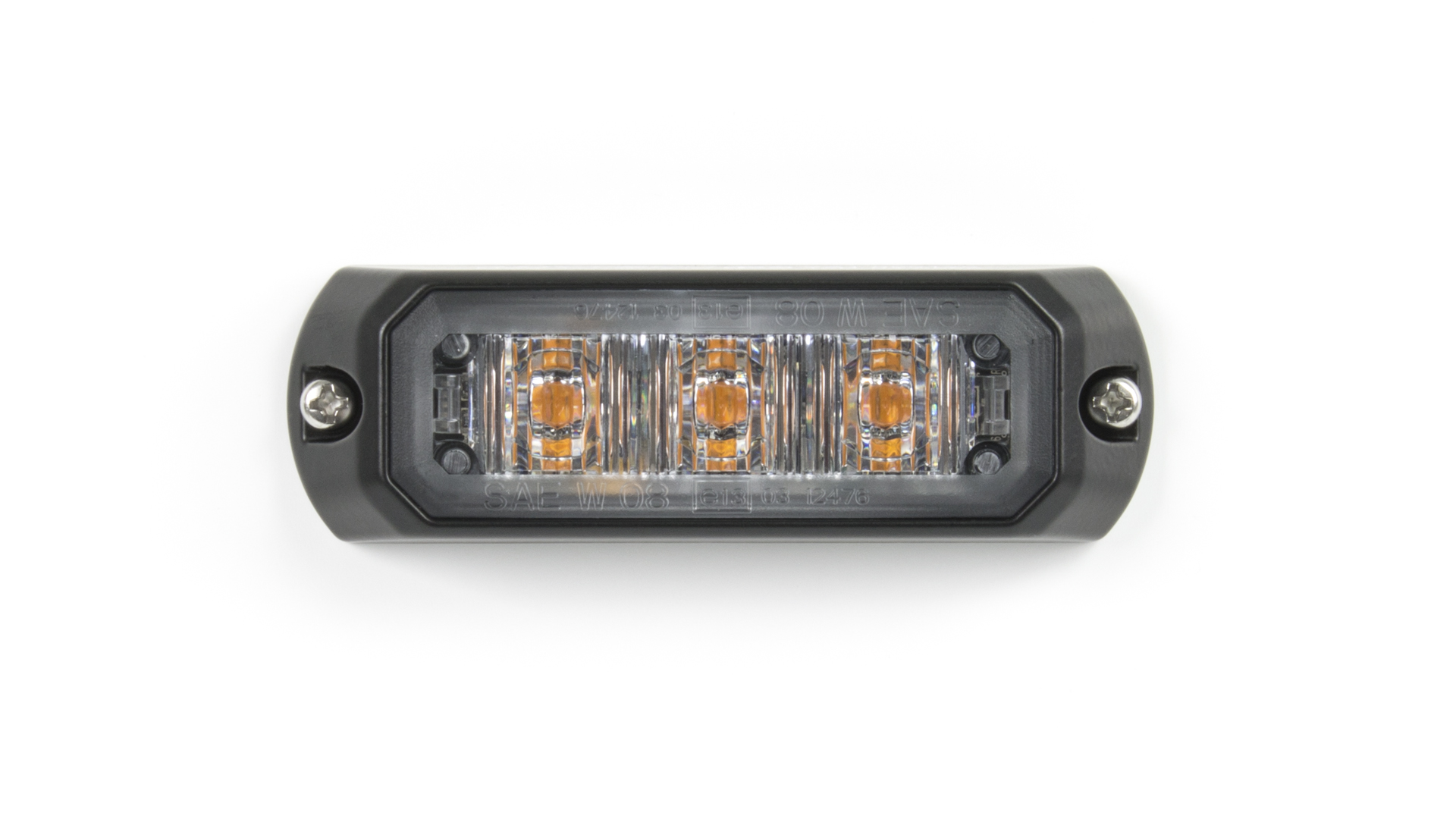

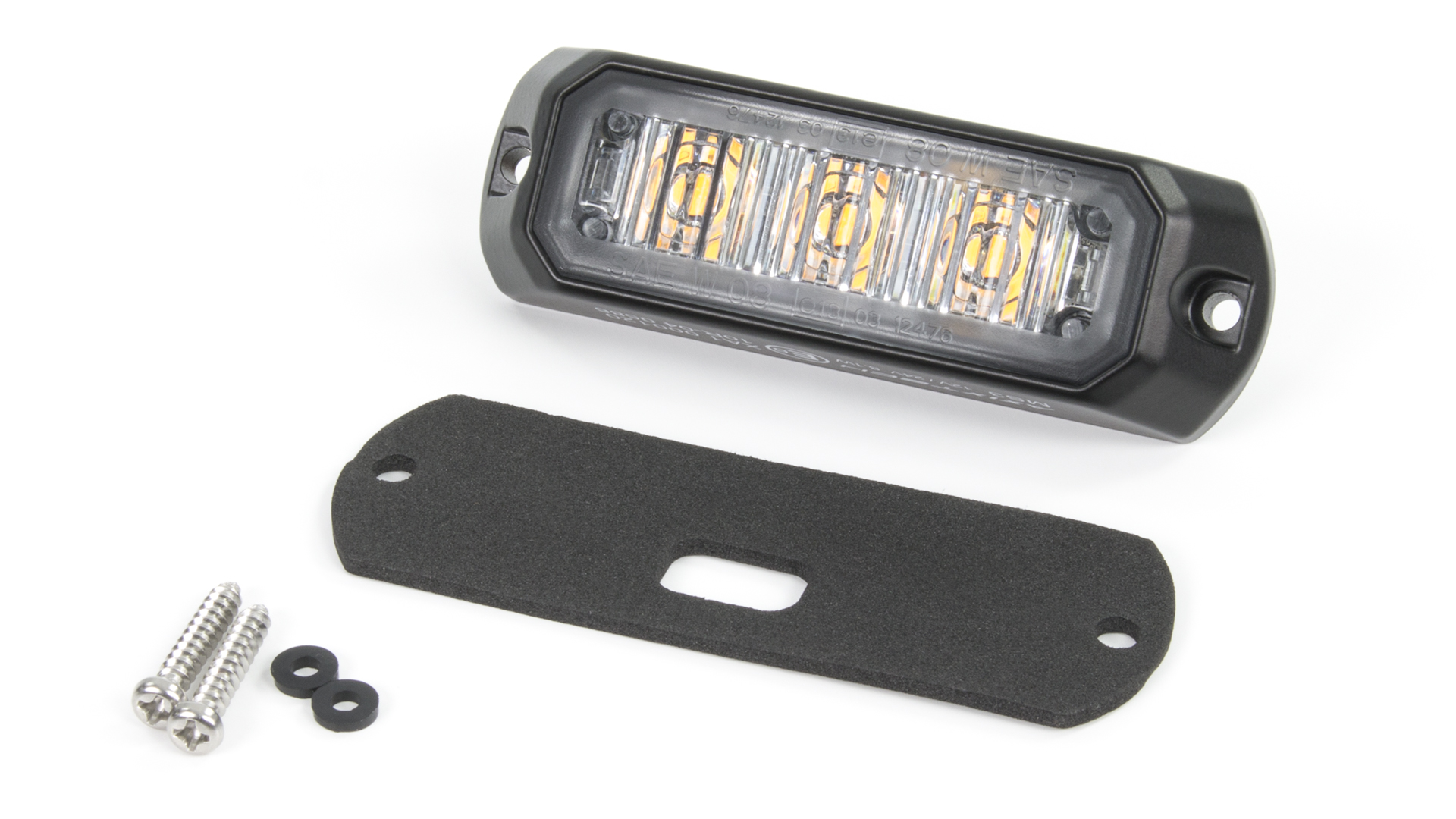

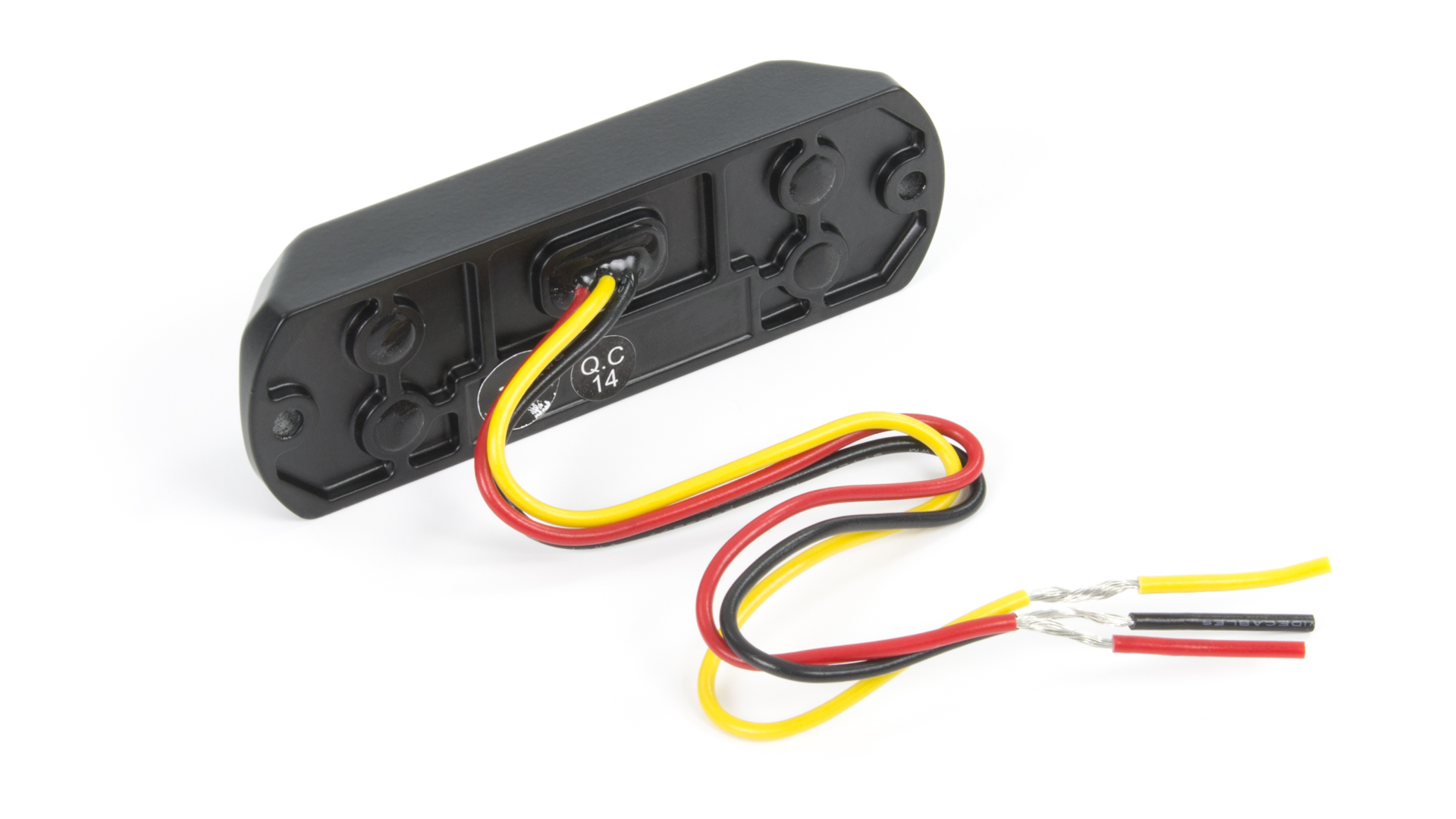

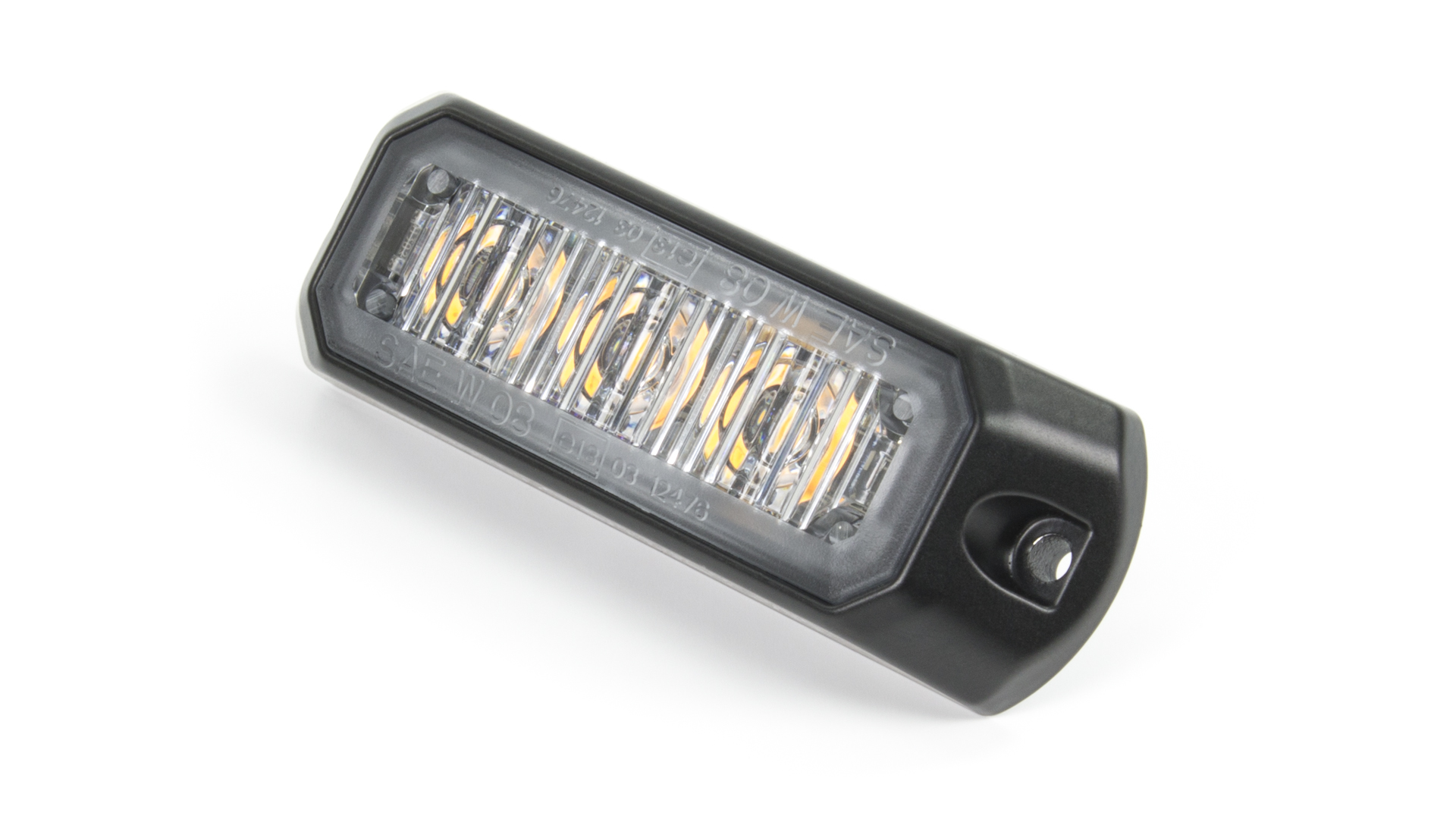

Product code 02040349 Product Name MS3 Warning Lighthead (Surface) - Amber (XA1) Categories Warning Lamps, Directionals, MS3, Mini Stealth, Modules Product Type Products Dimensions Length 85.6mm (3.4") Dimensions Height 27.7mm (1.1") Dimensions Width 15.7mm (0.6") Colour Type Single Colour Maximum Current 0.68A@12VDC / 0.34A@24VDC Maximum Power 8.1W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1), SAE J595 Class 1 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 3x LEDs IP Rating IPX7 Flash Patterns 5 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.05kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty Material Colour Black -

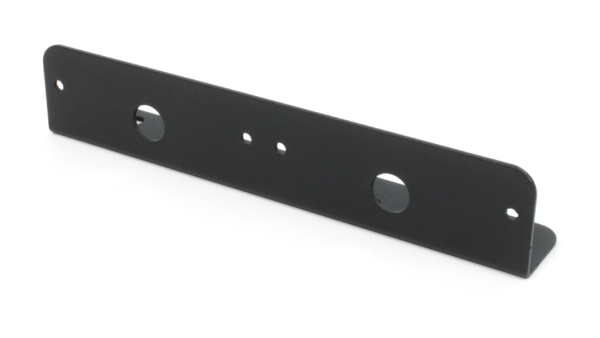

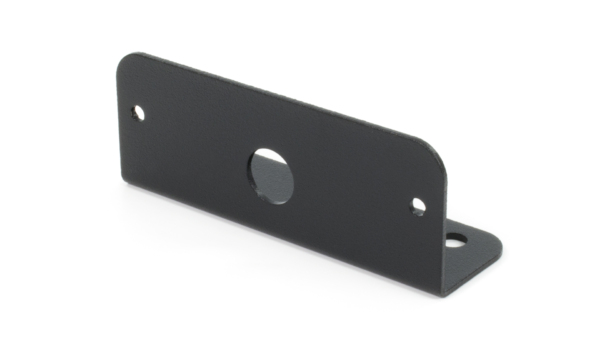

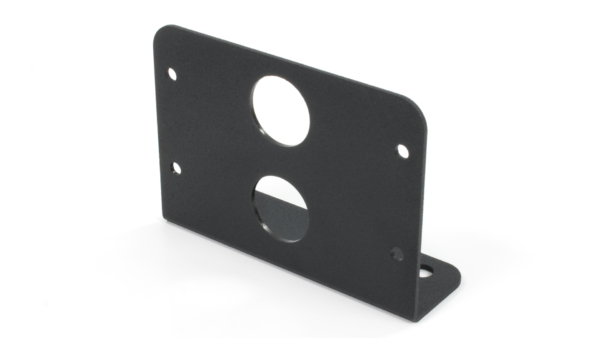

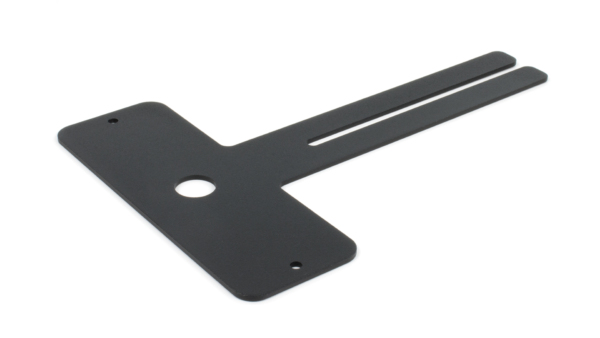

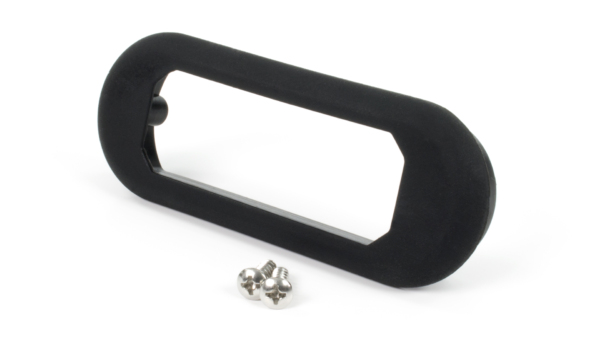

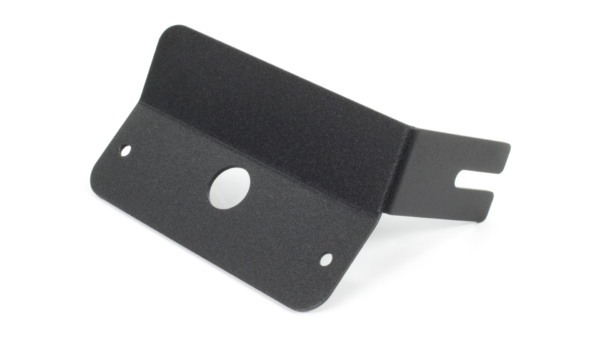

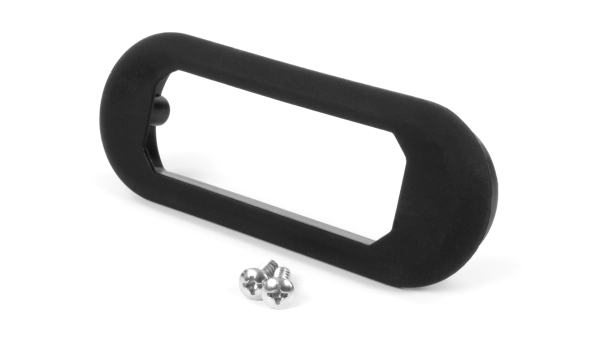

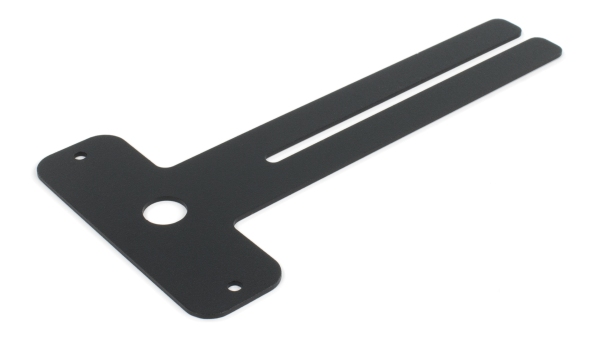

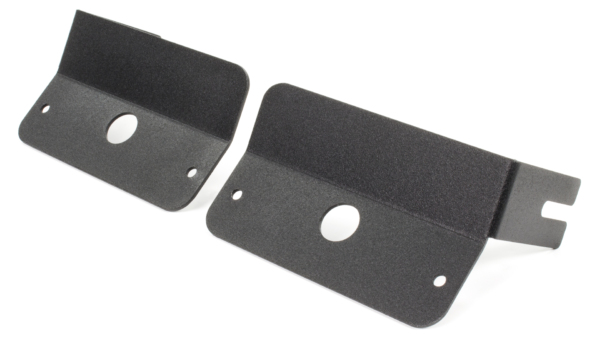

Mounting
-
