Specifications
Product Specifications
Product code 02040240 Product Name MS6 (Surface) - BC (Horizontal) Categories Warning Lights, Directionals, MS6, Mini Stealth, Modules Product Type Products Dimensions Length/width 127.5mm (5.0") Dimensions Height 27.8mm (1.1") Dimensions Depth 17.2mm (0.68") Colour Type Single Colour Maximum Current 1.15A@12VDC / 0.58A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 13.8W Synchronisation 15 Unit Synchronisation LED Colour Blue LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE-R10, SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 6x LEDs IP Rating IPX7 Flash Patterns 19 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

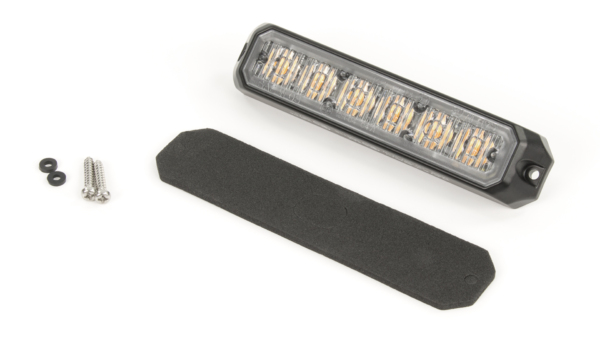

Mounting
-
-
Downloads
