Specifications
Product Specifications

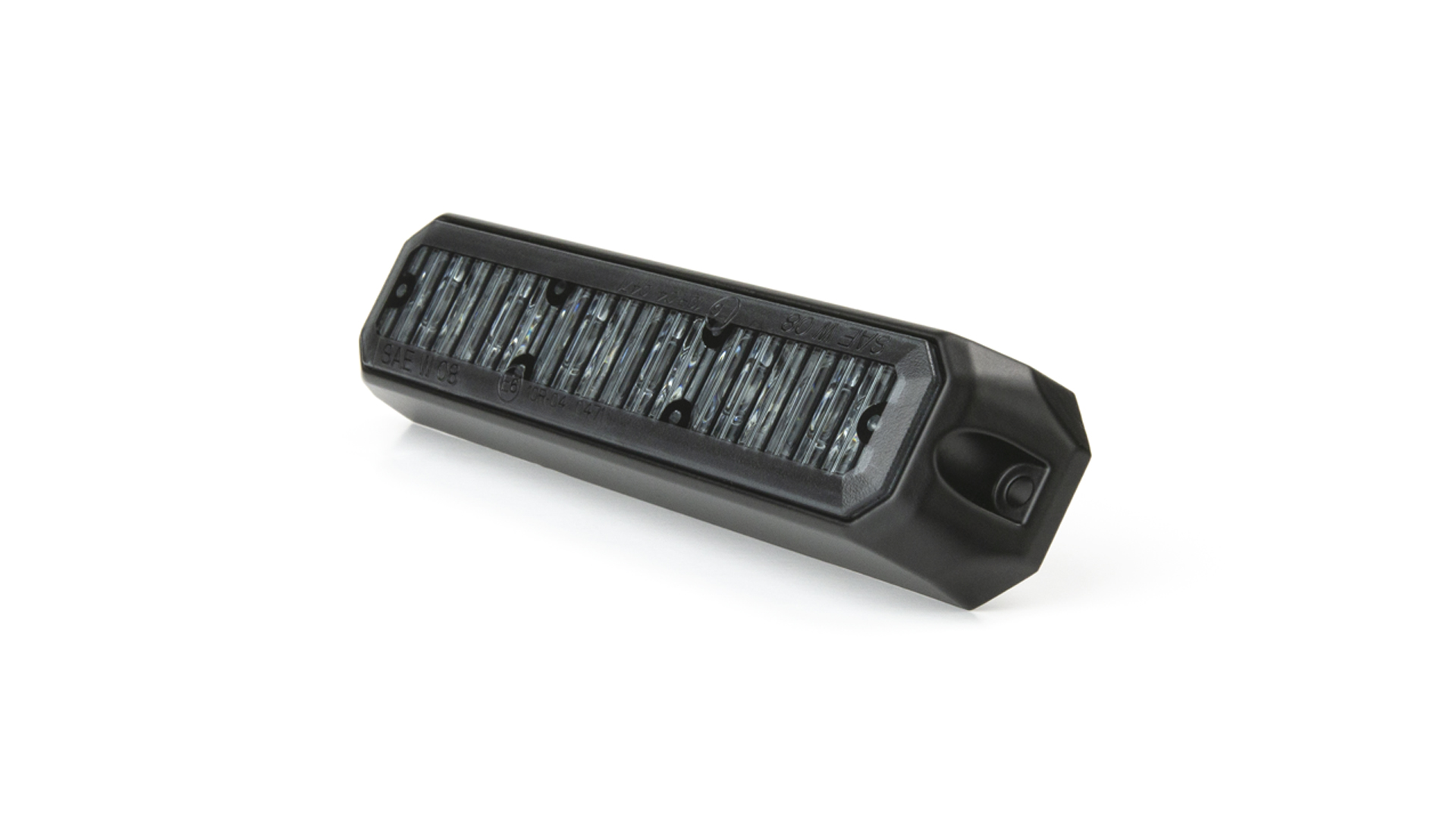

Product code 02040899 Product Name MS6 Horizontal/Surface (Tinted Lens) - Amber Categories Directionals, MS6, Mini Stealth, Modules Product Type Products Dimensions Length/width 127.5mm (5.0") Dimensions Height 27.8mm (1.1") Dimensions Depth 17.2mm (0.68") Colour Type Single Colour Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Synchronisation 15 Unit Synchronisation LED Colour Amber LEDs Fuse Rating 2A Lens Colour Tinted Lens Compliance ECE-R10, ECE-R65 (XA1) Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 6x LEDs IP Rating IP67 Flash Patterns 5 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.01kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Mounting
-
