Specifications
Full, uniform 360 degree spread of light where 4 units are fitted (ECE R65, Cat T) or 270 degree front or rear coverage if 2 units are fitted (ECE R65 Cat HT).
Super low profile & compact design: ideal for minimising weight and wind resistance or where it’s impractical to fit a lightbar.
Weatherproof and vibration resistant design for external or internal use.
Versatile installation using supplied angle-adjustable mini L-brackets.
Dual memories for Cruise Mode or different flash patterns.
Multi-unit synchronised simultaneous flash.
Multi-Voltage Input 12~24VDC.Product Specifications

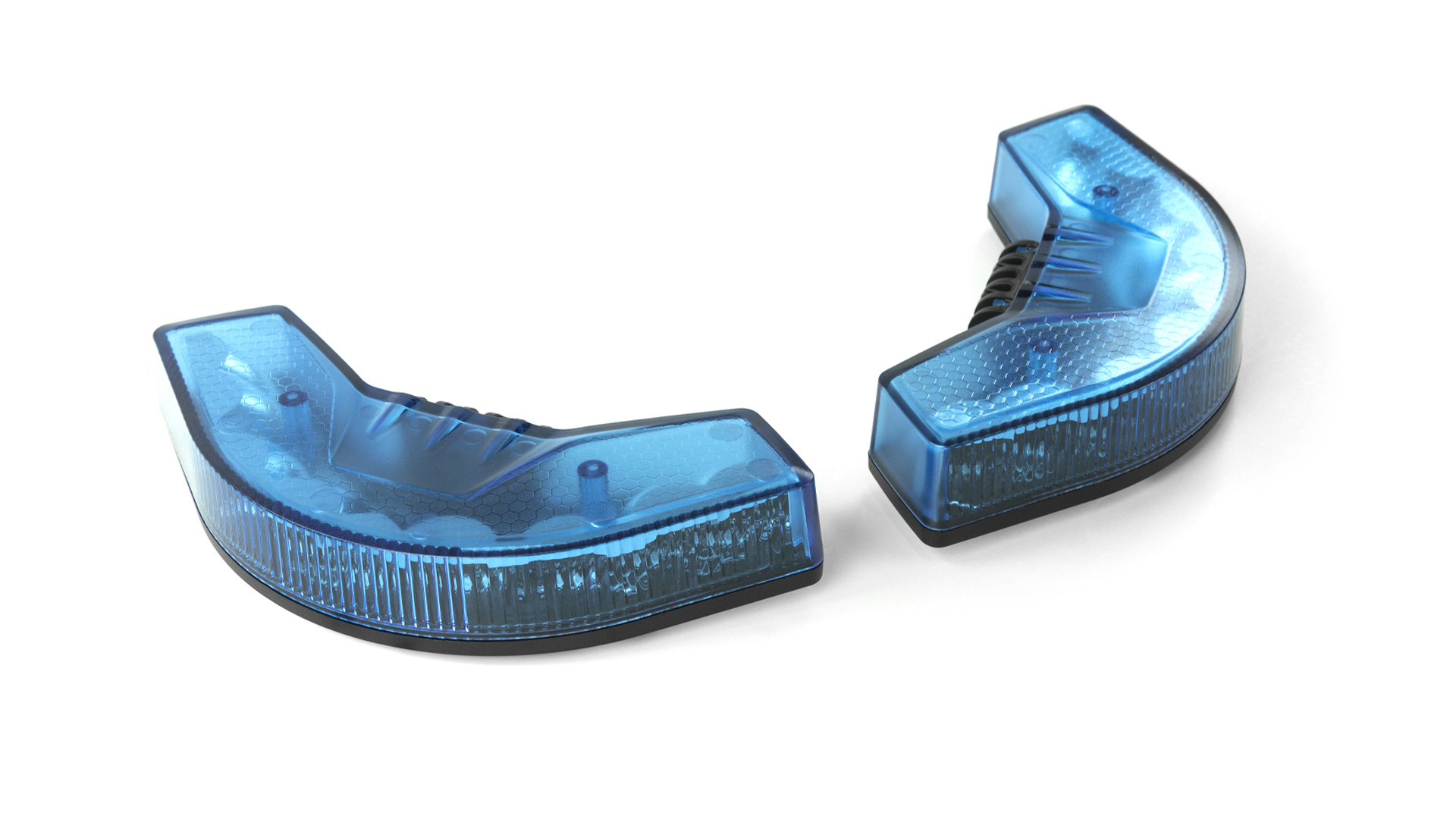

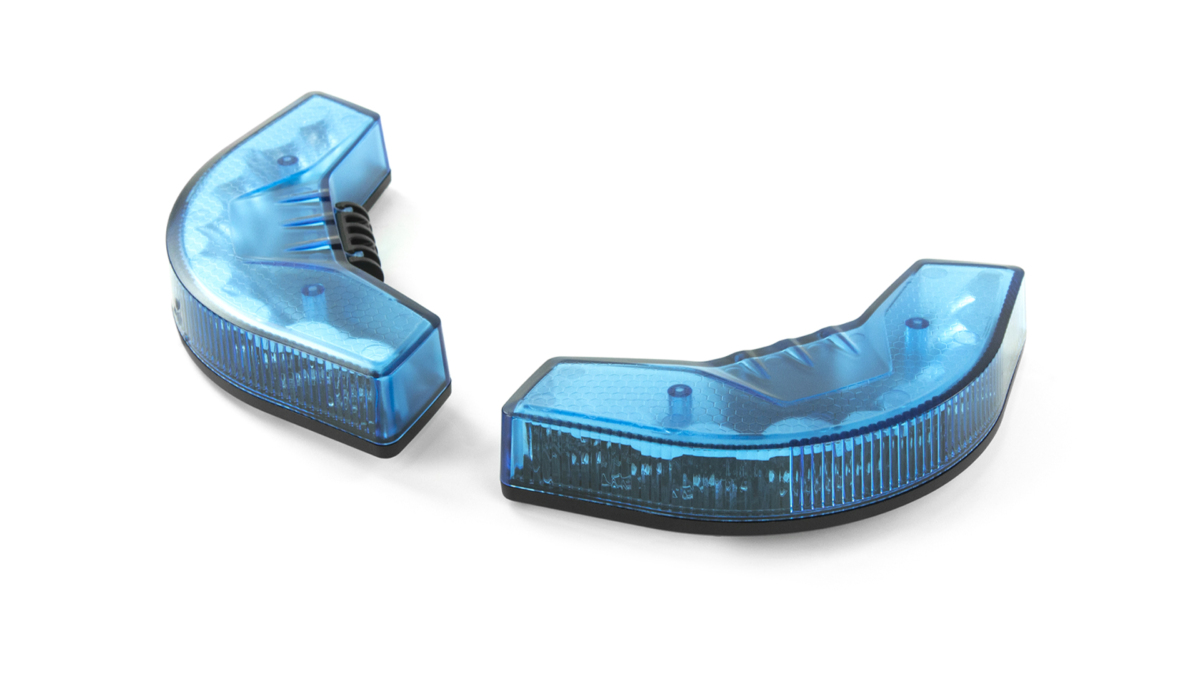

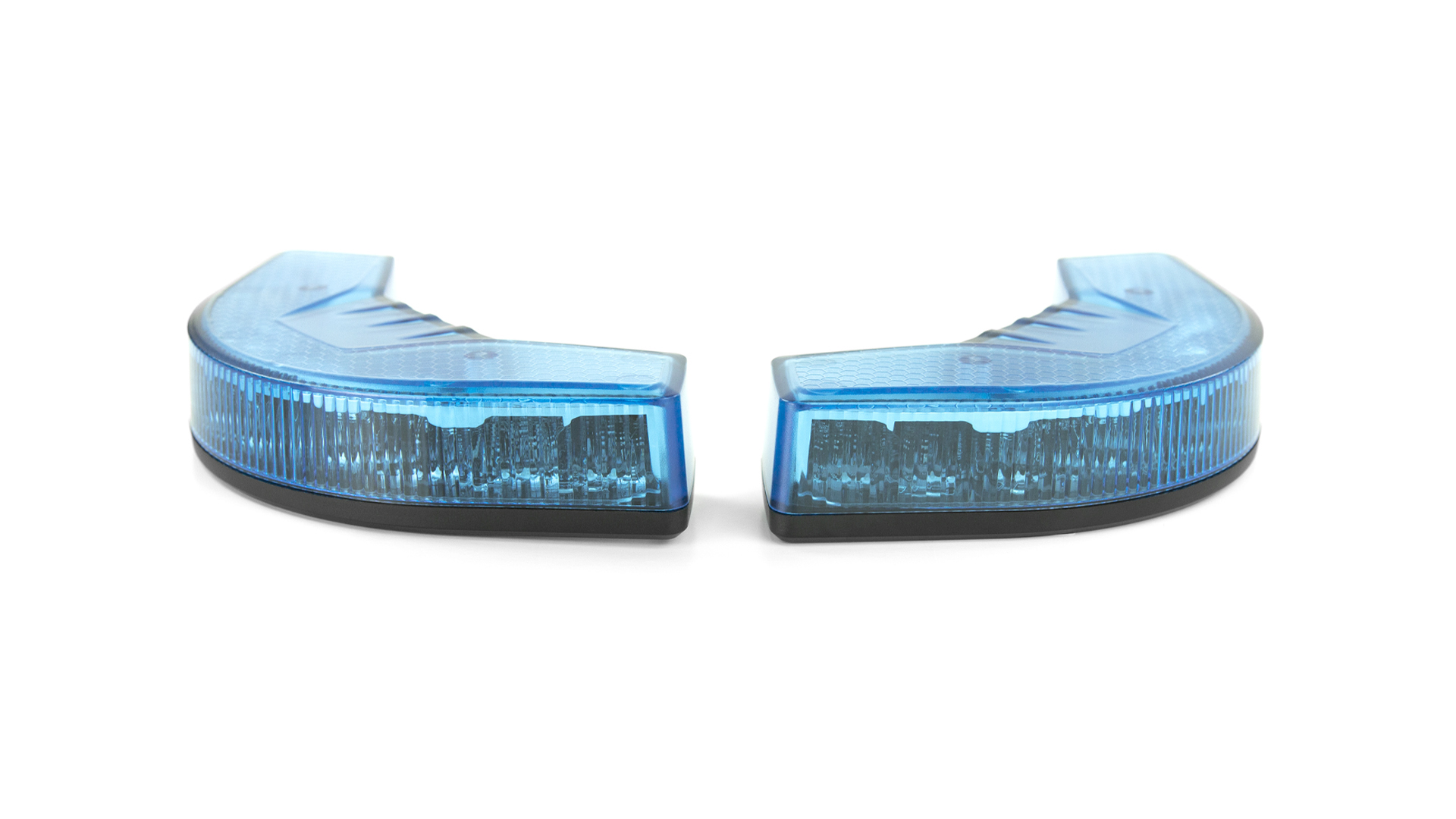

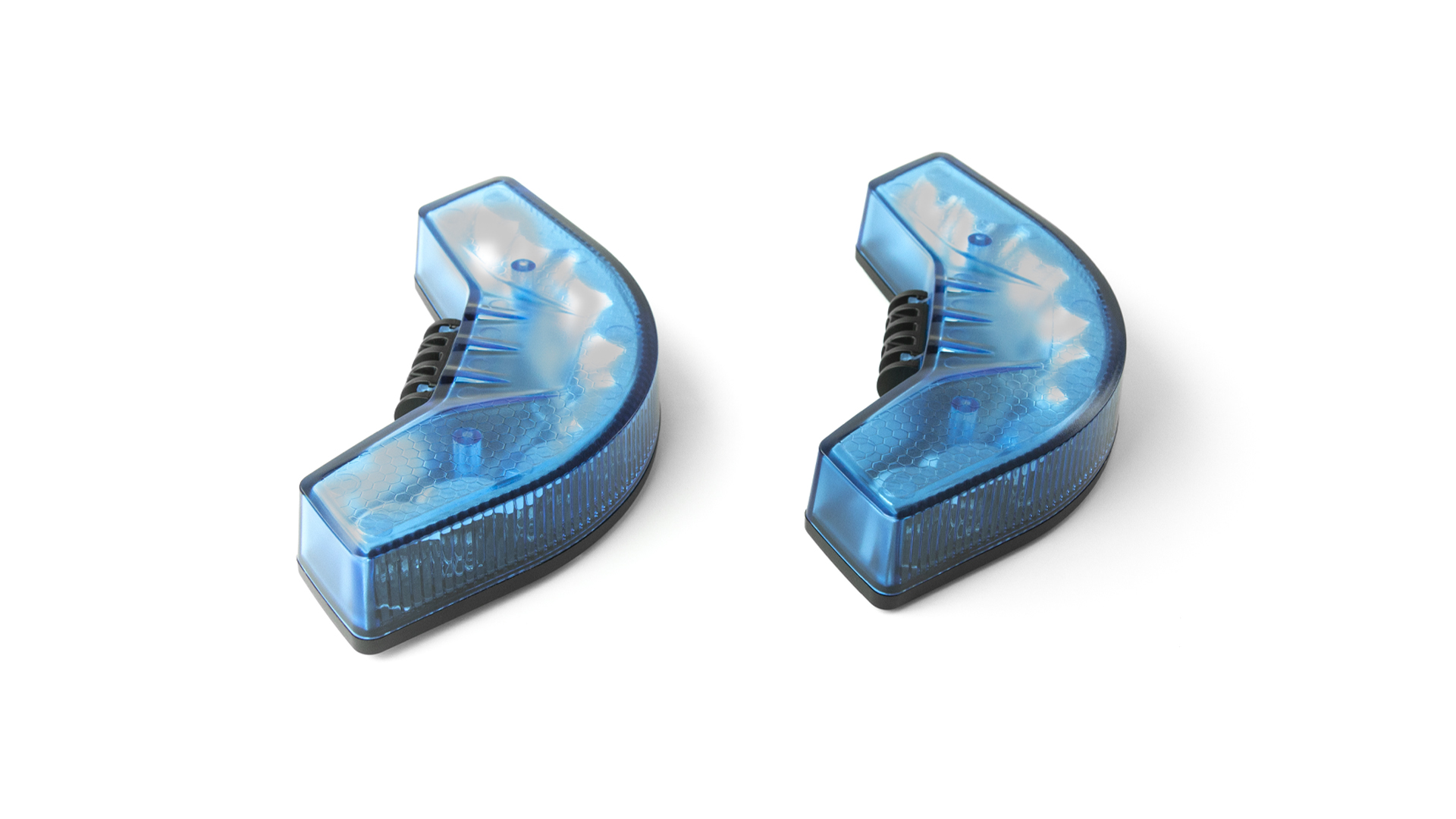

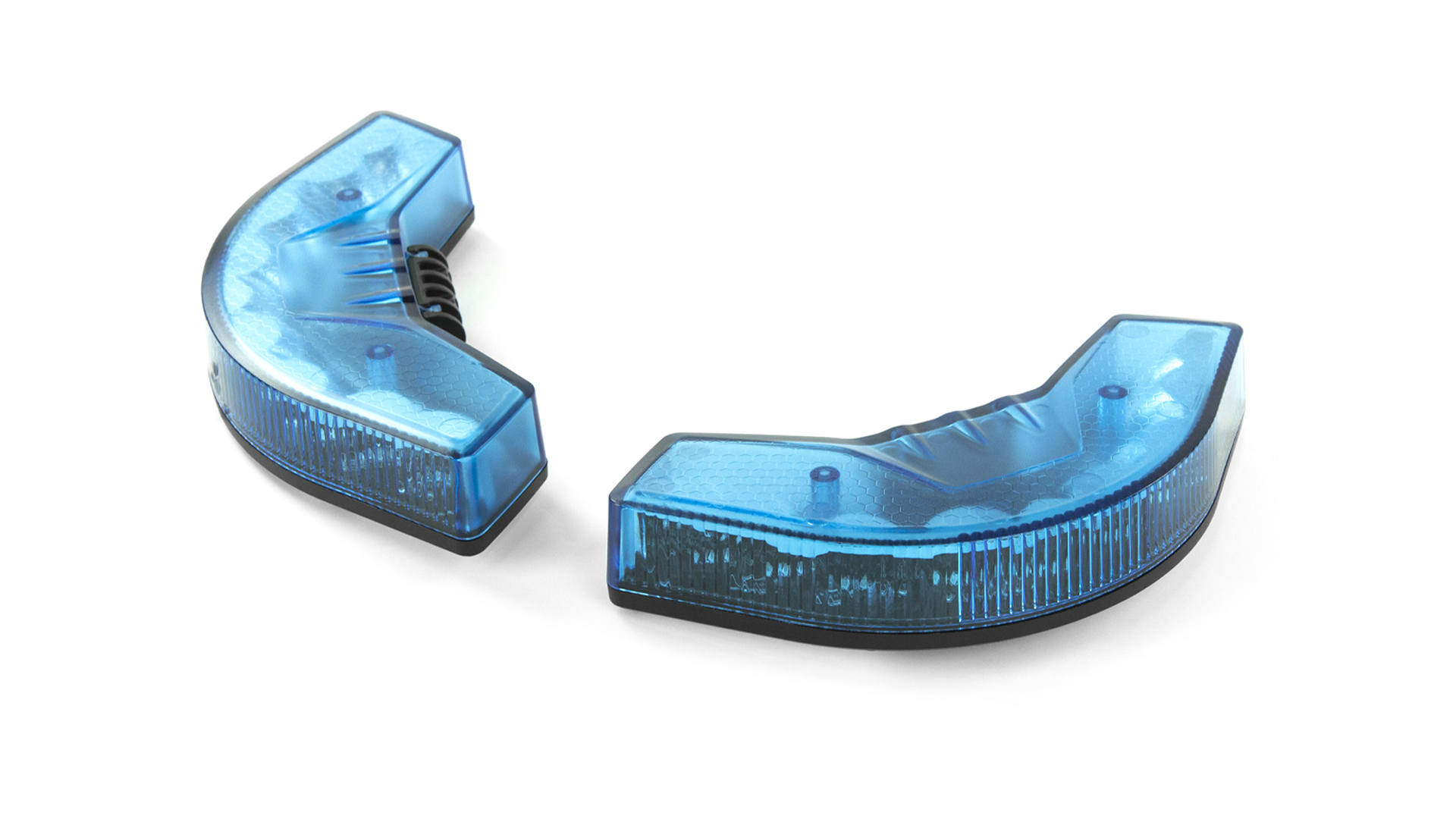

Product code 02220079 Product Name OV9 (2 Lightheads) - BB Categories Warning Lights, Omni View, Wide Angle, Modules Product Type Products Default Functions Cruise Light Mode Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.58A@12VDC / 0.79A@24VDC Operating Temperature -40°C~+60°C Maximum Power 18.96W Synchronisation 20 Unit Synchronisation LED Colour Blue LEDs Lens Colour Blue Lens (Dark) Compliance ECE-R10, ECE-R65 (HTB2), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Mini L-Bracket Cable Type Cable (Pigtail) LED Quantity 18x LEDs Lighthead Quantity 2x Lightheads IP Rating IPX7 Flash Patterns 18 Flash Patterns Wire Length 1200mm Conductor Cross-Section 0.5mm² (20AWG) -
