Specifications
Product Specifications

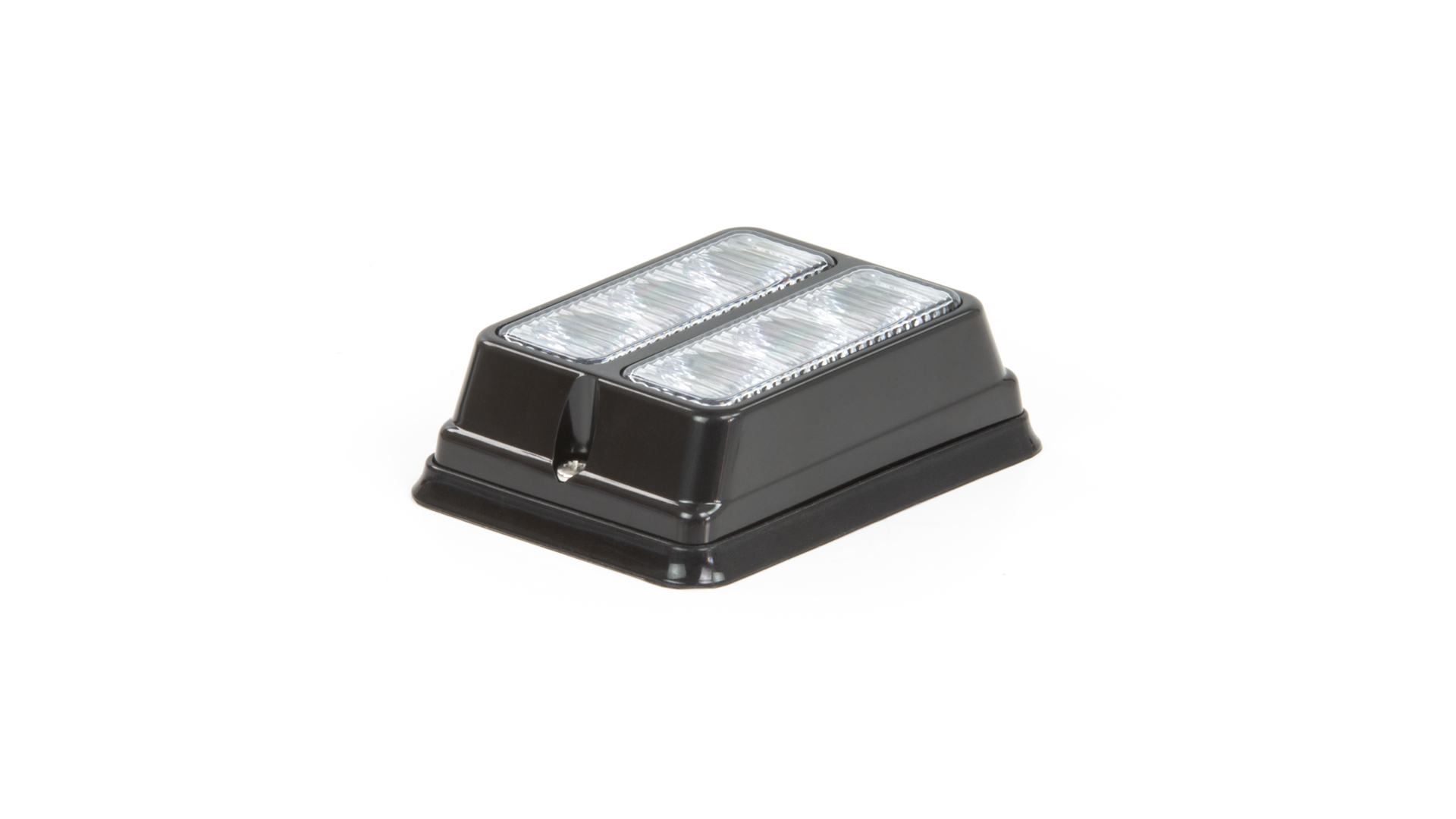

Product code 02030708 Product Name PowerLED6 Split - Blue/Red Categories Warning Lights, Directionals, Modules, PowerLED6, Power LED Product Type Products Dimensions Length/width 99mm (3.8") Dimensions Height 72mm (2.8") Dimensions Depth 29mm (1.1") Bezel Colour Black Colour Type Split Colour Maximum Current 0.63A@12VDC / 0.33A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 8W Synchronisation 15 Unit Synchronisation LED Colour Blue LEDs, Red LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE-R10 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 6x LEDs IP Rating IP67 Flash Patterns 16 Flash Patterns Wire Length 210mm Mounting Orientation Horizontal Gross Weight 0.20kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
