Specifications
Illumination model meets NFPA regulation for narrow space lighting when configured correctly.
Available with standard or 45 degree angled bezel for illumination model.
Weatherproof and vibration resistant design for all environments.
Reverse polarity protection.Product Specifications

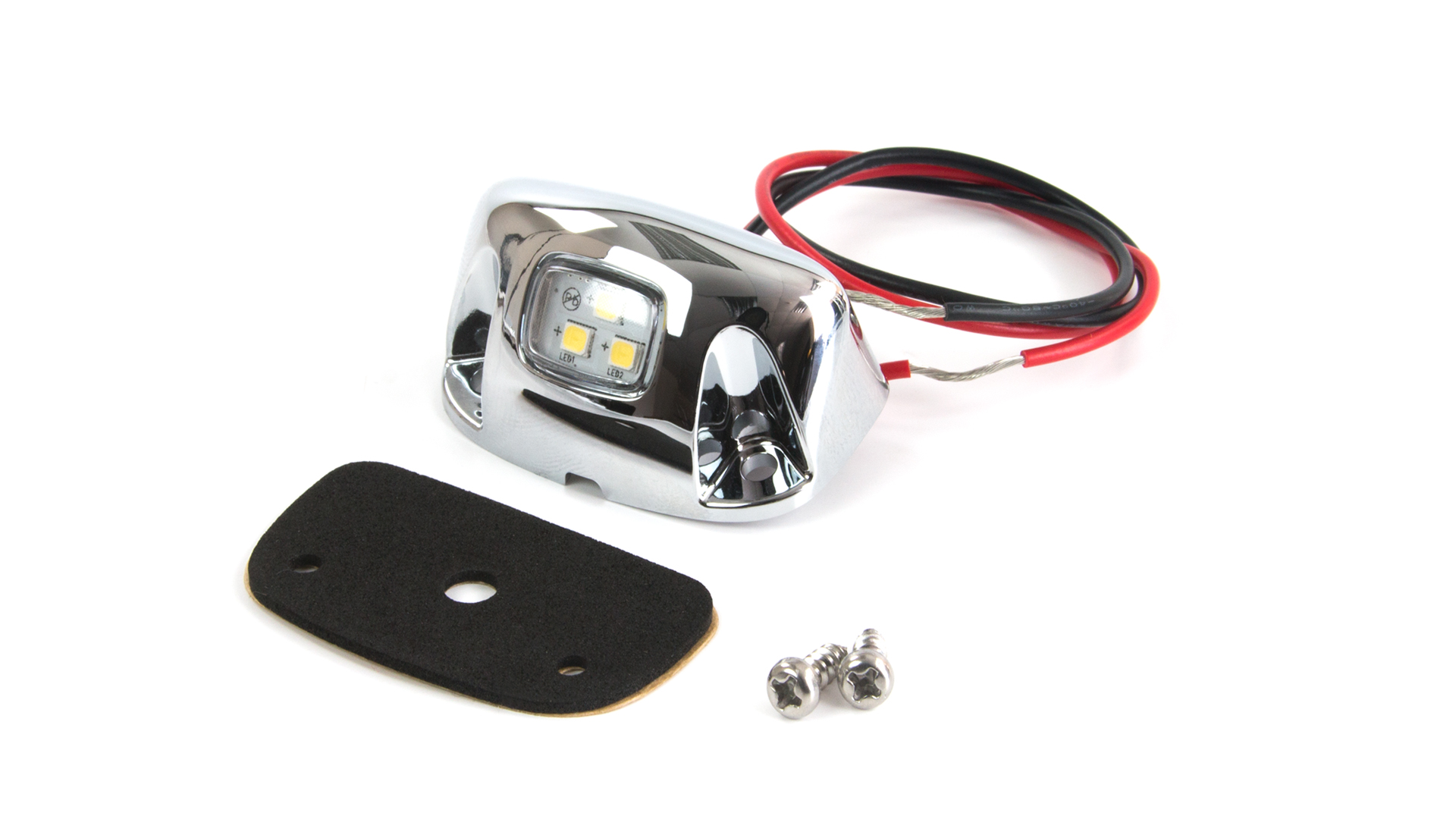

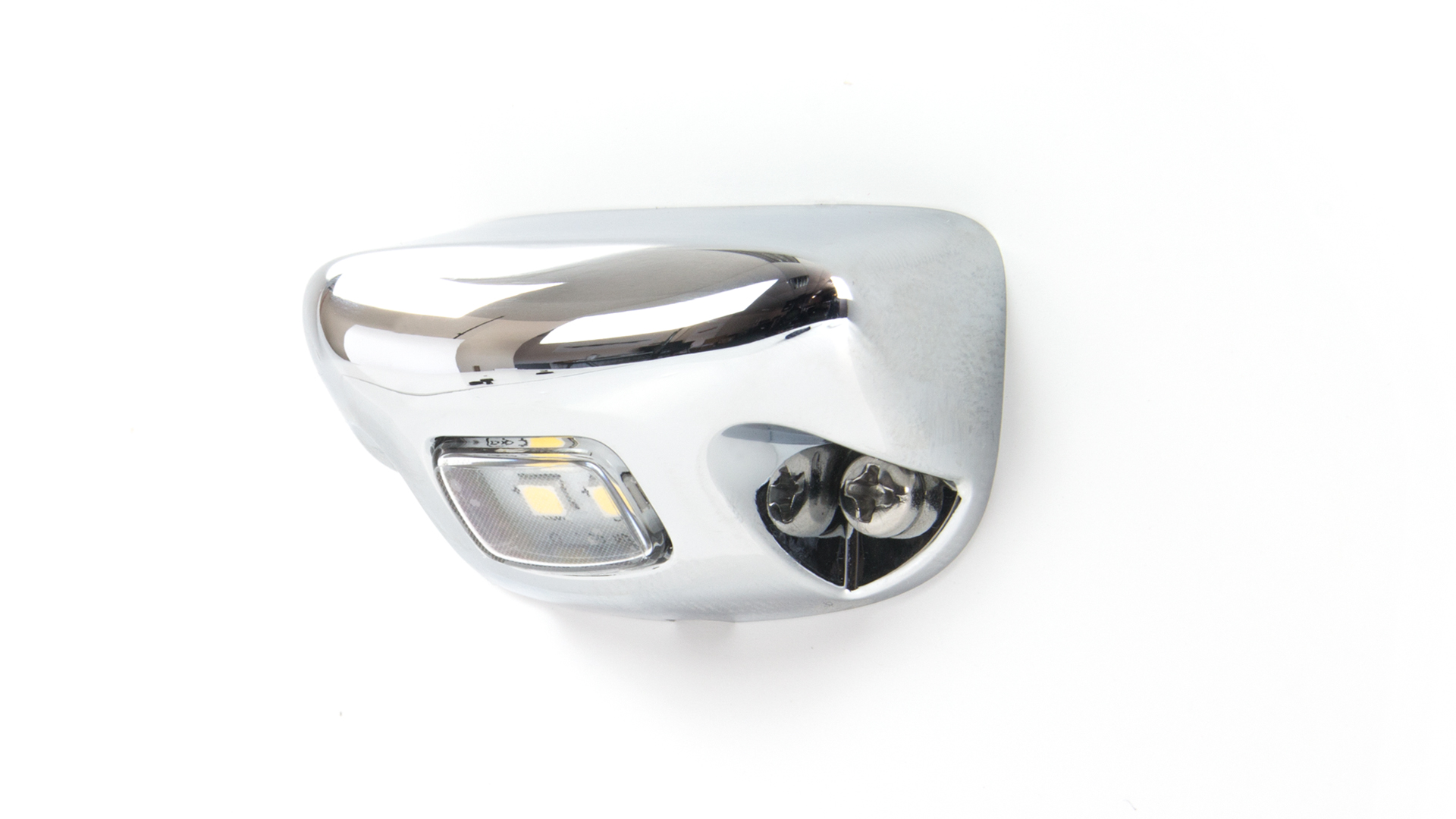

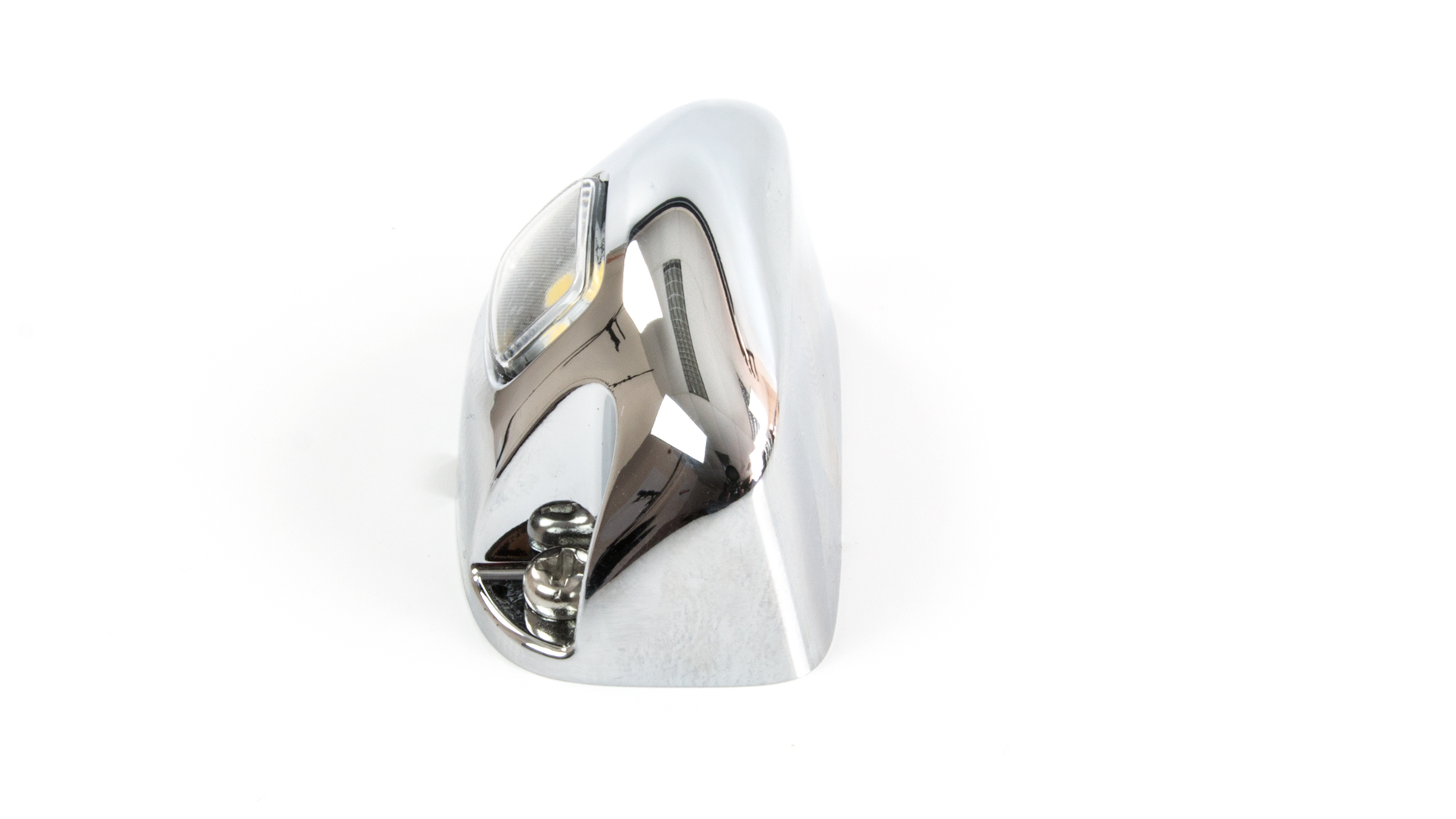

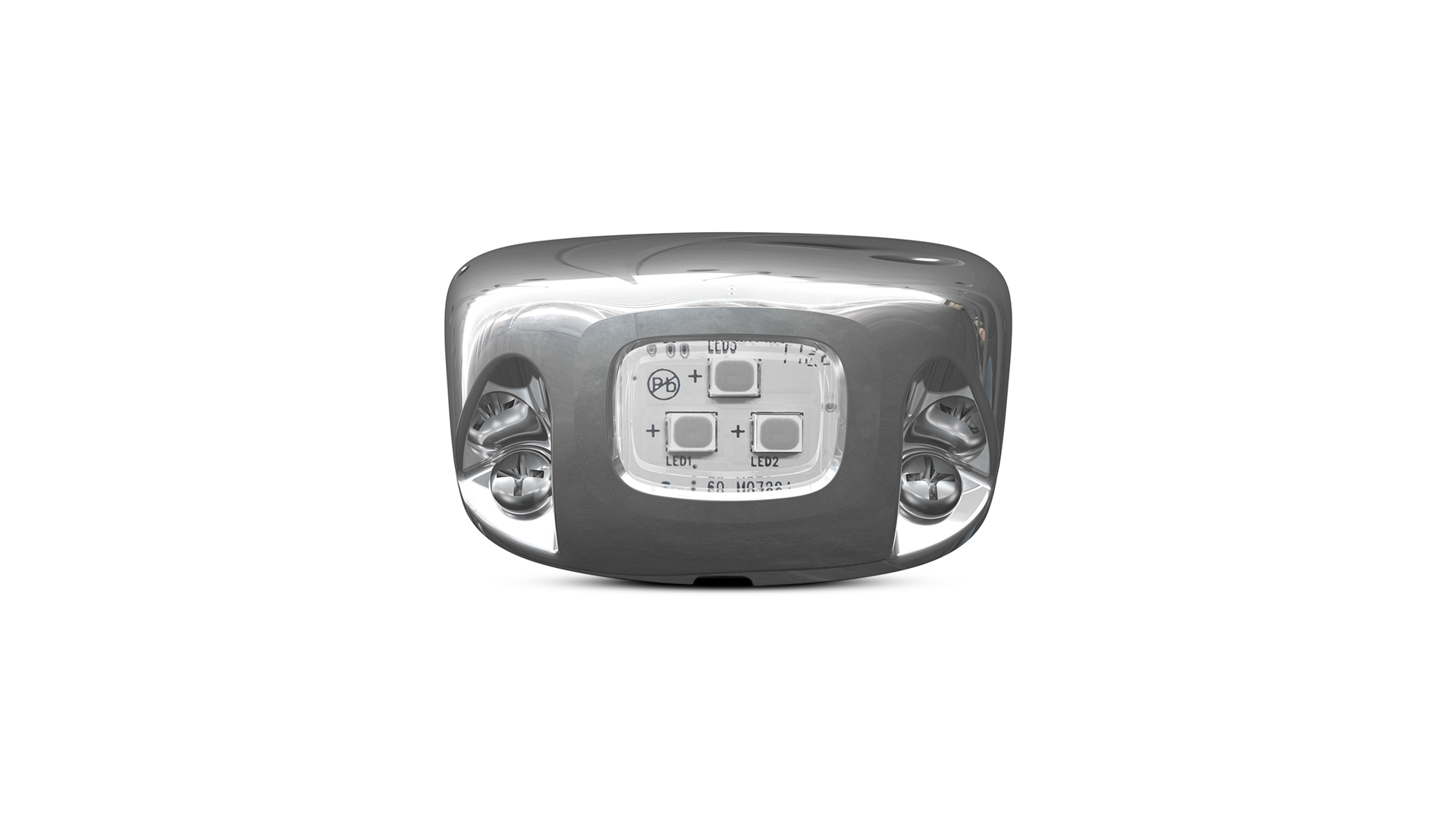

Product code 07030048 Product Name R0 Scene Lamp - White (45° Surface Mount) Categories Scene Lamps, R0 Scene Light, Illumination Product Type Products Dimensions Length 49.6mm (1.88") Dimensions Height 22.6mm (0.875") Dimensions Width 27.4mm (0.95") Bezel Colour Chrome Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 60mA@12VDC Operating Temperature -30°C~+65°C Maximum Power 0.72W LED Colour White LEDs Fuse Rating 0.5A Lens Colour Clear Lens Input Voltage 12VDC Mounting Option 45° Surface Mount (Horizontal) Cable Type Cable (Pigtail) LED Quantity 3x LEDs IP Rating IPX7 Flash Patterns 1 Flash Pattern Wire Length 310mm Mounting Orientation Horizontal Gross Weight 0.01kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty - Downloads
