Specifications
Warning models certified with SAE J595, SAE J845 Class 1, CA Title 13 and meet NFPA1901 and KKK1822 compliance when configured correctly.
Choose from 16 built-in flash patterns in solid, left-right split, top-bottom split, or criss-cross split flash mode.
Multi-units synchronization in simultaneous or alternating flash.
Reverse polarity protection.
Weatherproof and vibration resistant design for internal or external use.
Solid aluminium base for efficient heat dissipation.
Product Specifications

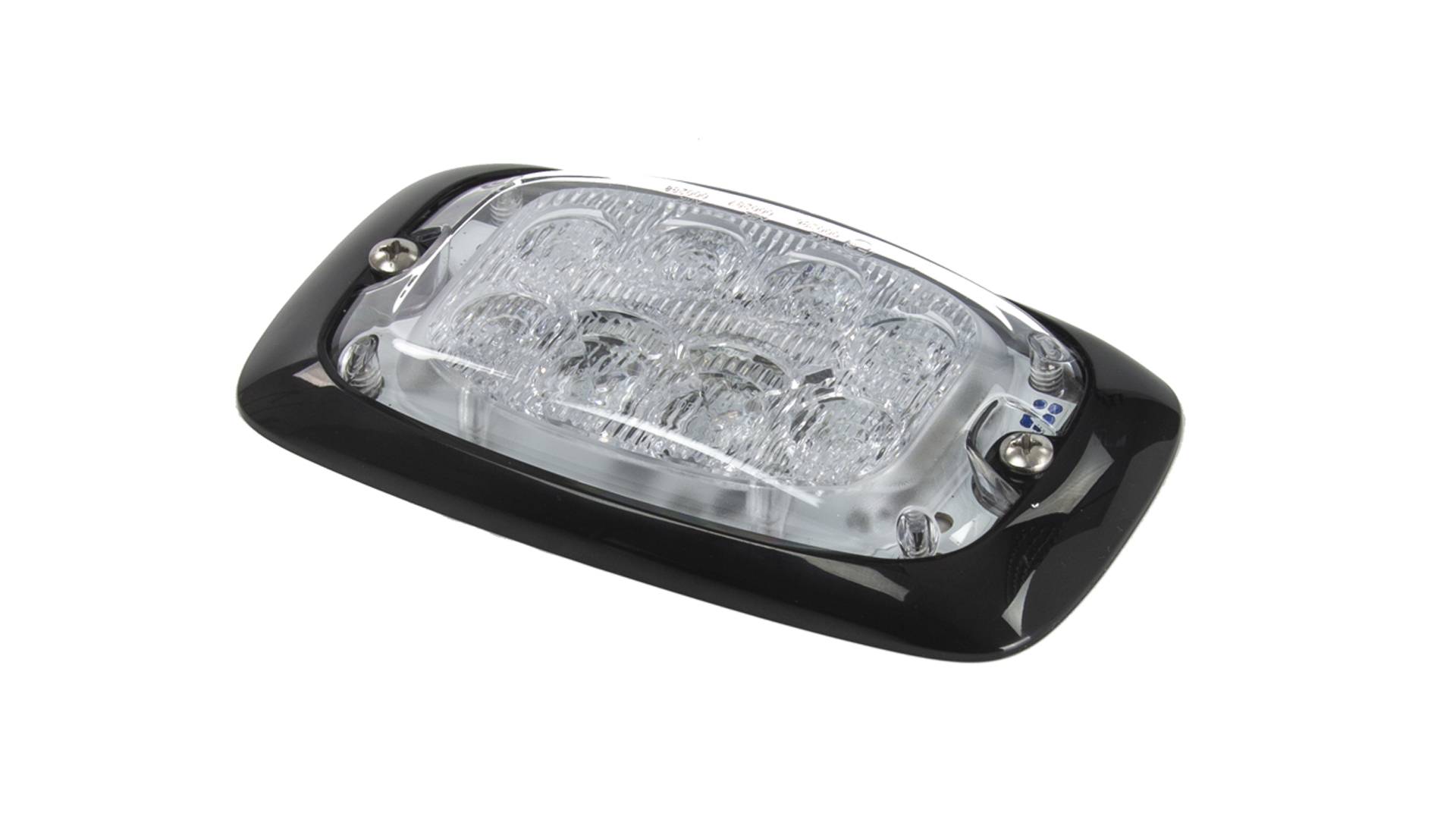

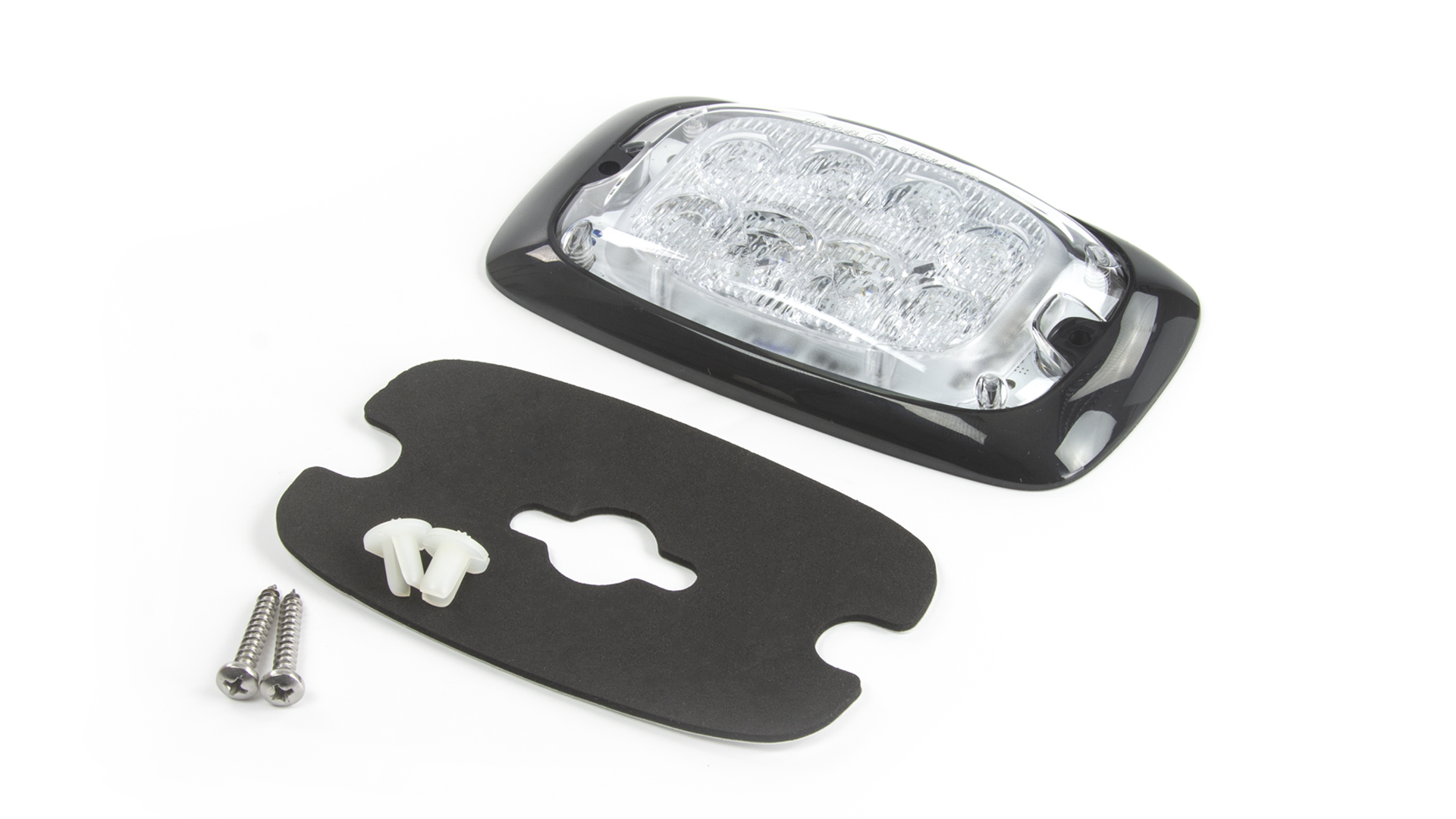

Product code 02200088 Product Name R4-E Warning Lighthead - AC Categories Lighting, R4-E Responder, Modules, Responder Product Type Products Dimensions Length 139mm Dimensions Height 76mm Dimensions Width 23mm Bezel Colour Black Colour Type Single Colour Maximum Current 1.81A@12VDC / 0.91A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 21.7W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA2, SAE J595 Class 1, SAE J845 Class 1 Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 8LED IP Rating IPX7 Flash Patterns 16 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

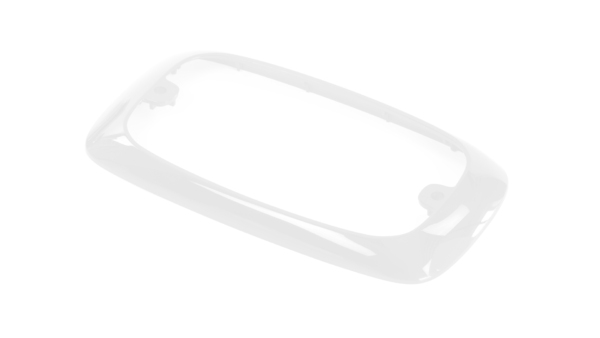

Spare Parts
-
