Specifications
Warning models certified with SAE J595, SAE J845 Class 1, CA Title 13 and meet NFPA1901 and KKK1822 compliance when configured correctly.
Choose from 16 built-in flash patterns in solid, left-right split, top-bottom split, or criss-cross split flash mode.
Multi-units synchronization in simultaneous or alternating flash.
Reverse polarity protection.
Weatherproof and vibration resistant design for internal or external use.
Solid aluminium base for efficient heat dissipation.
Product Specifications

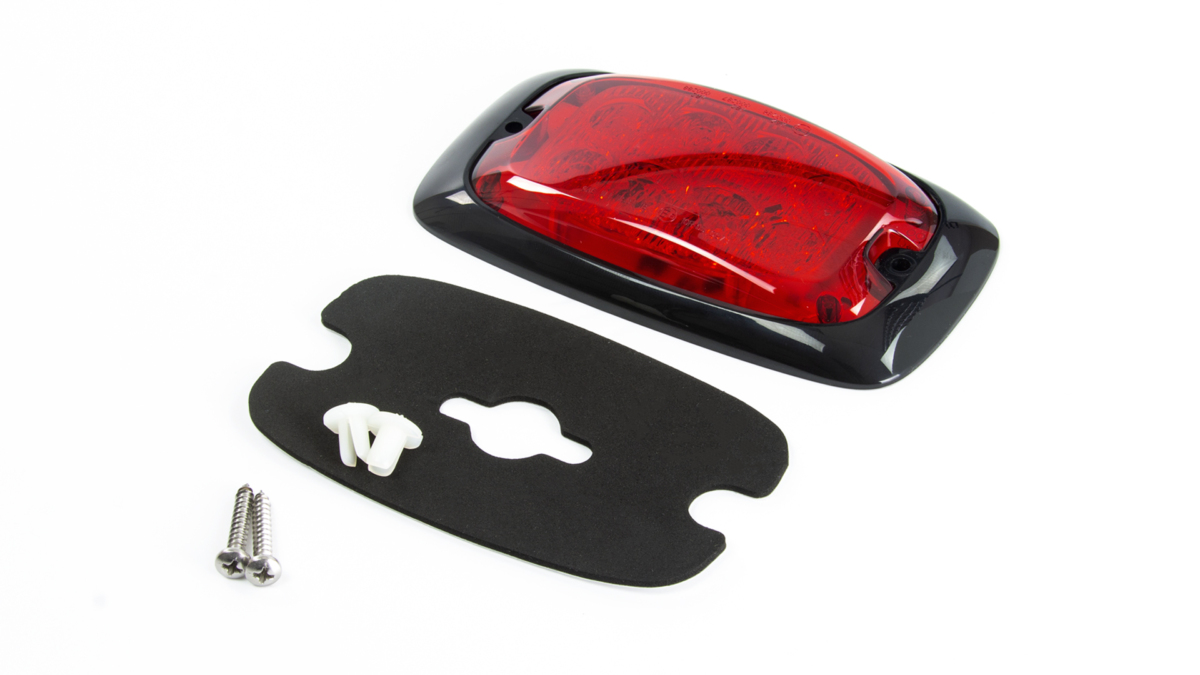

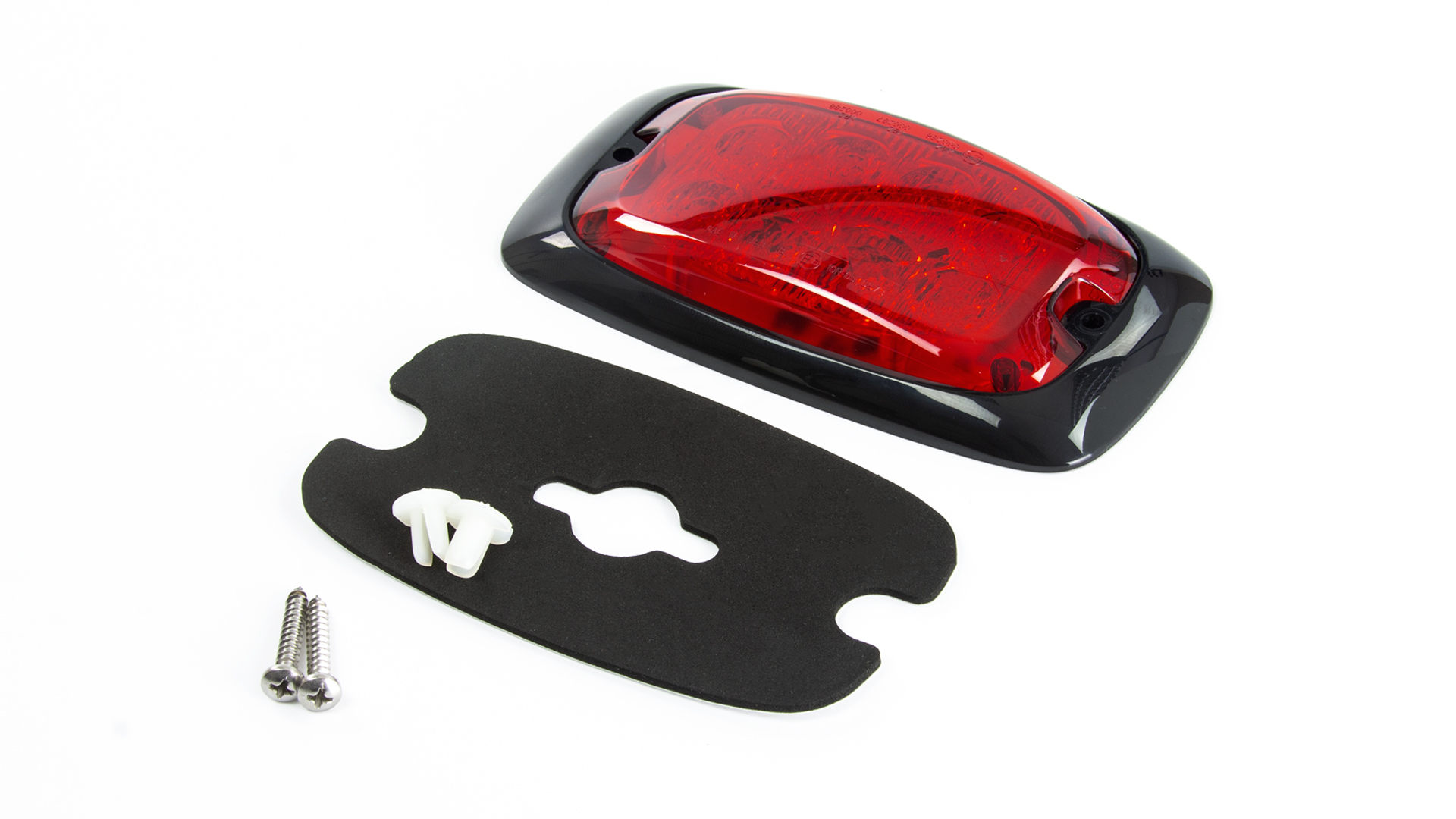

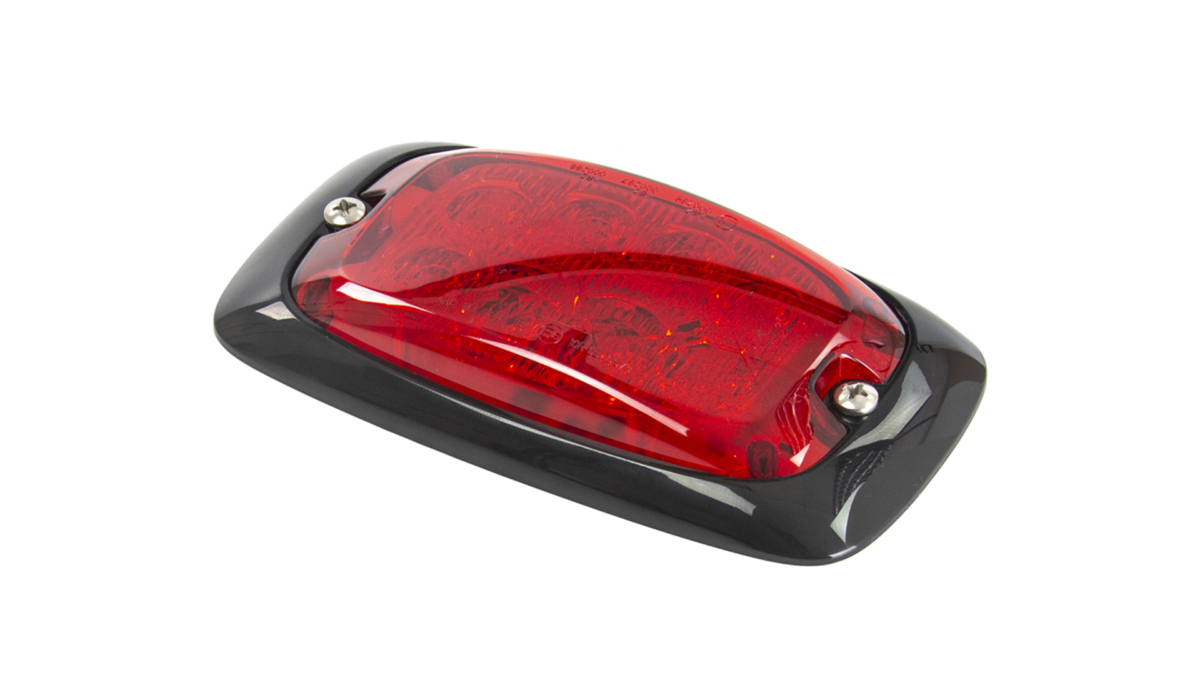

Product code 02200118 Product Name R4-E Warning Module - RR Categories Warning Lights, R4-E Responder, Modules, Responder Product Type Products Dimensions Length 139mm (5.48") Dimensions Height 76mm (3") Dimensions Width 22.5mm (0.89") Bezel Colour Black Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.81A@12VDC / 0.91A@24VDC Operating Temperature -30°C~+65°C Maximum Power 21.7W Synchronisation 15 Unit Synchronisation LED Colour Red LEDs Fuse Rating 2A Lens Colour Red Lens Compliance ECE-R10, ECE-R65 (XR2), SAE J595 Class 1, SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 8x LEDs IP Rating IPX7 Flash Patterns 16 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Gross Weight 0.20kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
