Specifications
Warning models certified with SAE J595, SAE J845 Class 1, CA Title 13 and meet NFPA1901 and KKK1822 compliance when configured correctly.
Choose from 16 built-in flash patterns in solid, left-right split, top-bottom split, or criss-cross split flash mode.
Multi-units synchronization in simultaneous or alternating flash.
Reverse polarity protection.
Weatherproof and vibration resistant design for internal or external use.
Solid aluminium base for efficient heat dissipation.
Product Specifications

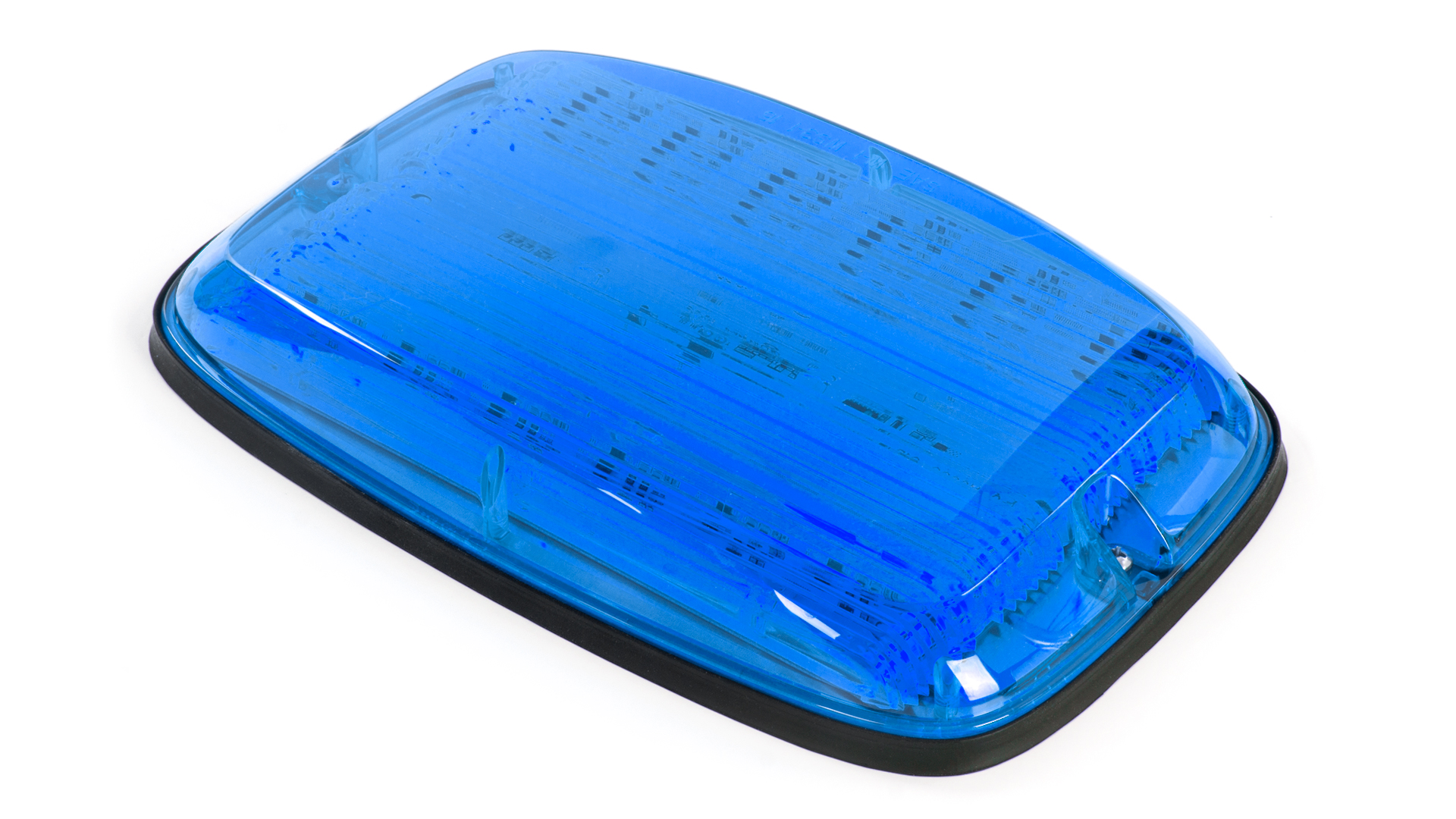

Product code 02200293 Product Name R9 Warning Module - BB Categories R9 Responder, Warning Lights, Modules, Responder Product Type Products Dimensions Length 270.1mm (10.63") Dimensions Height 165.7mm (6.52") Dimensions Width 35.5mm (1.4") Colour Type Single Colour Maximum Current 4.2A@12VDC Maximum Power 50.4W LED Colour Blue LEDs Fuse Rating 5A Lens Colour Blue Lens (Dark) Compliance SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 12VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 36x LEDs IP Rating IPX7 Flash Patterns 16 Flash Patterns Wire Length 210mm Mounting Orientation Horizontal Gross Weight 0.95kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
