Specifications
Product Specifications
Product code 01050110 Product Name Rayzr Traffic Director (8 Lighthead) - W8 Categories Warning Lights, Rayzr TR3, Traffic Advisors Product Type Products Dimensions Length/width 888.2mm (34.50") Dimensions Height 24mm (0.95") Dimensions Depth 38mm (1.50") Material Colour Black Colour Type Single Colour Maximum Current 3.8A @12.8VDC / 1.9A @ 24VDC Operating Temperature -30°C~+65°C Maximum Power 48.7W Traffic Advisor Length 0888mm (35") Connection Type 2 Pin Connector LED Colour White LEDs Traffic Director Functions Traffic Arrow, Warning Mode, End Flashers Lens Colour Clear Lens Compliance ECE-R10, SAE J595 Class 1, SAE J845 Class 1 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Cable Type 1 Cable Harness (6 Function/2 Power) LED Elements 24x LEDs Lighthead Quantity 8x Lightheads Warranty 5 Year Warranty IP Rating IP67 Flash Patterns 20 Warning Patterns / 11 Traffic Arrow Patterns / 6 End Flash Patterns Net Weight 1.75kg Gross Weight 1.75kg -
Spare Parts
-
- Chassis
- ECE-R10
- Traffic Arrow, Warning Mode, End Flashers
- 2 Pin Connector
- 1103mm (43.4")
-
-
- Chassis
- ECE-R10
- Traffic Arrow, Warning Mode, End Flashers
- 2 Pin Connector
- 0673mm (26.5")
-
- Chassis
- ECE-R10
- Traffic Arrow, Warning Mode, End Flashers
- 2 Pin Connector
- 0888mm (35")
-
-
- Lightheads
- 3x LEDs
- 2 Pin Connector
- Clear Lens
- T.I.R Optics
-
- Lightheads
- 3x LEDs
- 2 Pin Connector
- Clear Lens
- T.I.R Optics
-
- Lightheads
- 3x LEDs
- 2 Pin Connector
- Clear Lens
- T.I.R Optics
-
- Lightheads
- 3x LEDs
- 2 Pin Connector
- Clear Lens
- T.I.R Optics
-
-
-

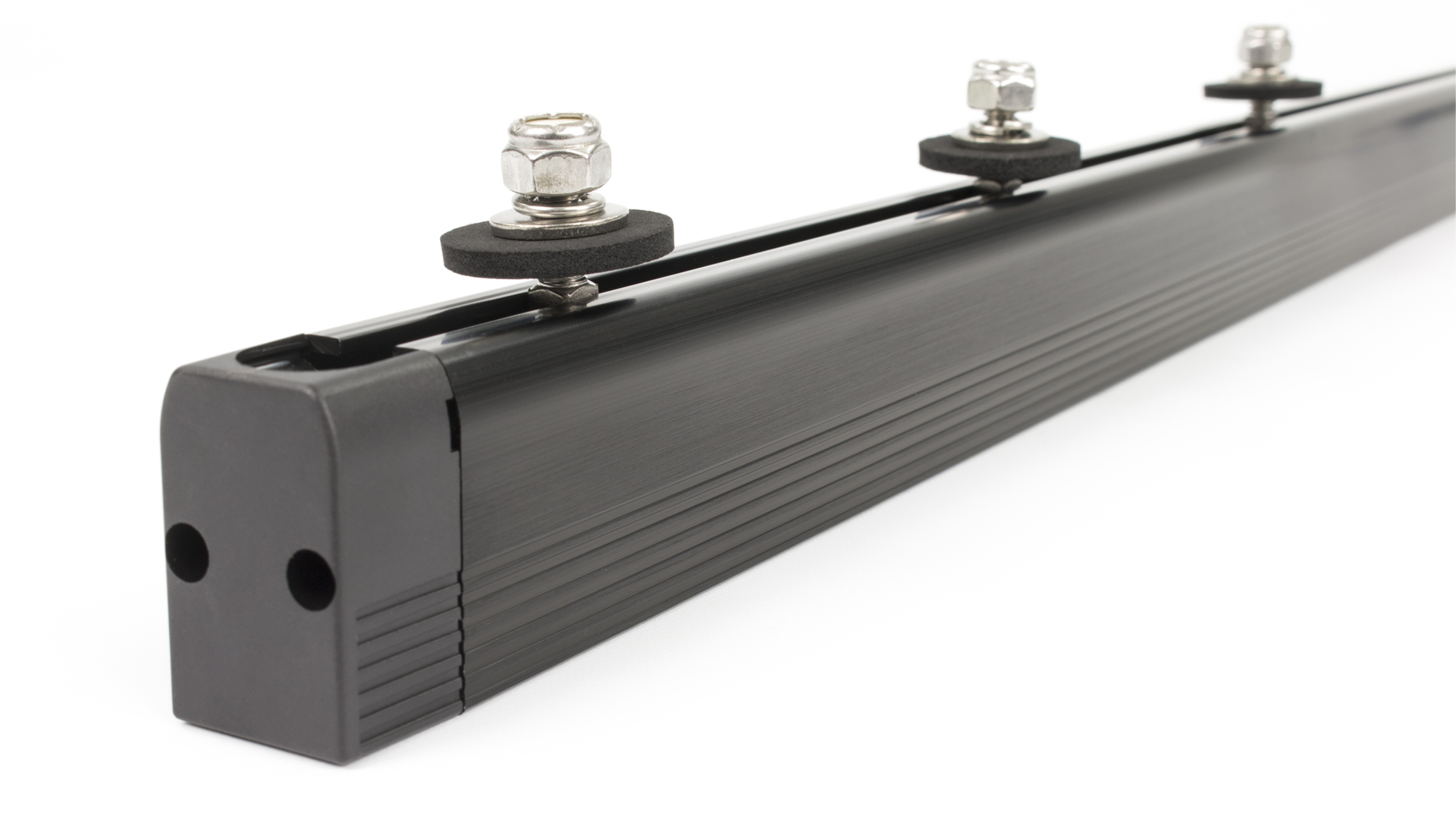

Mounting
-
