Specifications
Super low profile for stealth look.
Lightheads come with waterproof connectors for quick and easy replacement.
Non-volatile memory recalls last flash pattern used at power up.
LEDs rated to 100,000 hours of operation.
Aluminium extrusion for heat dissipation.
Reverse polarity protection.Product Specifications

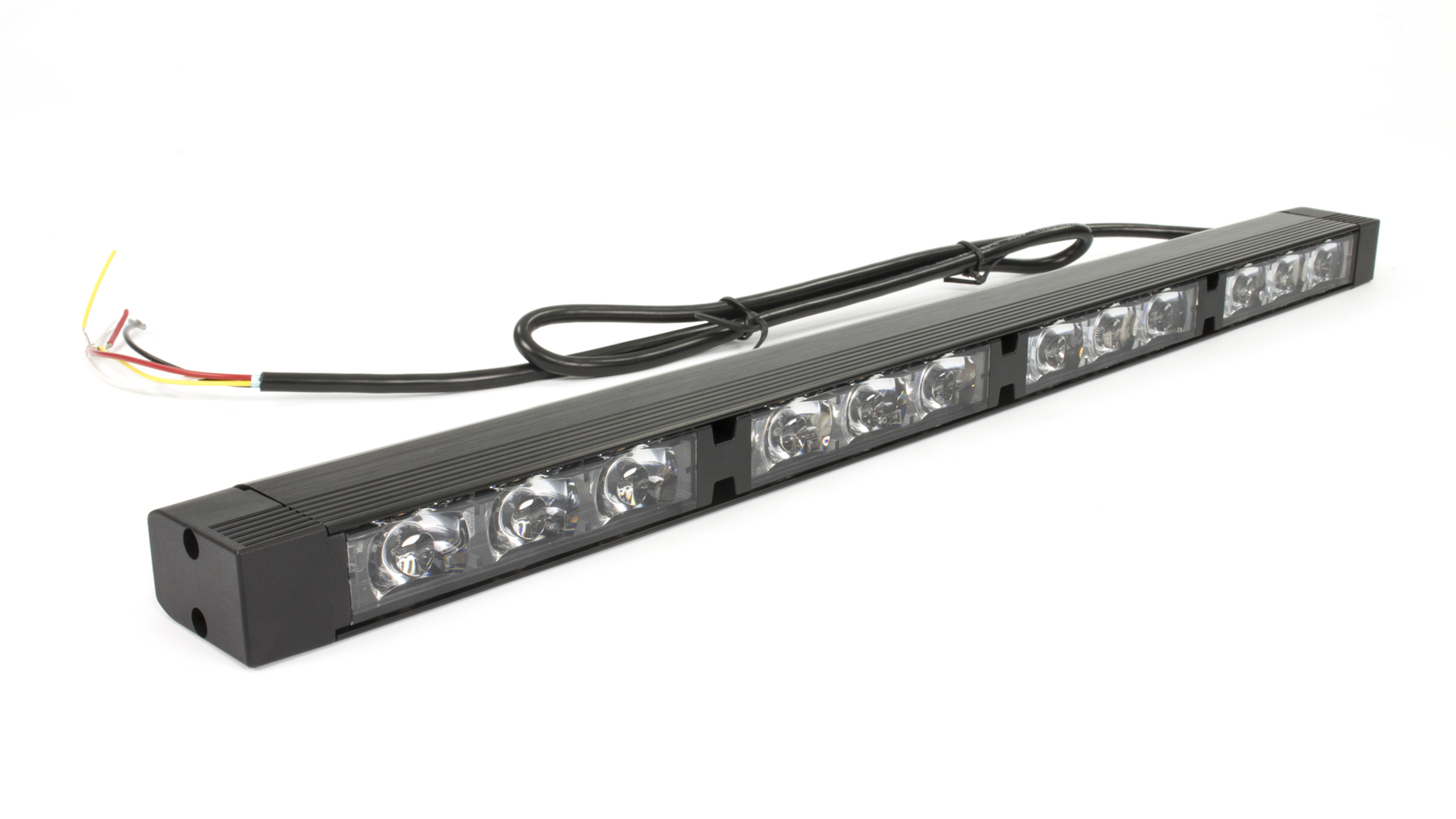

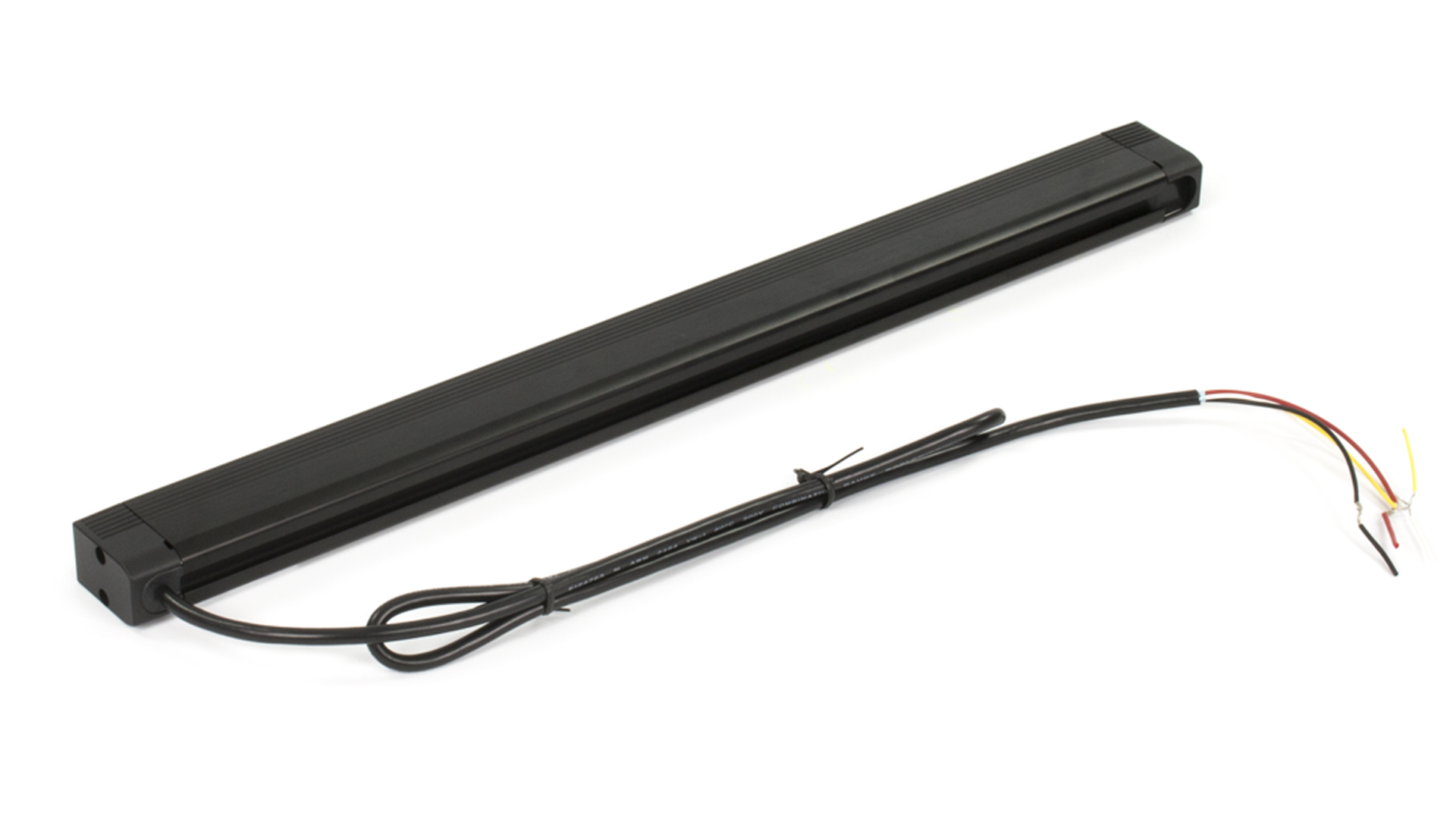

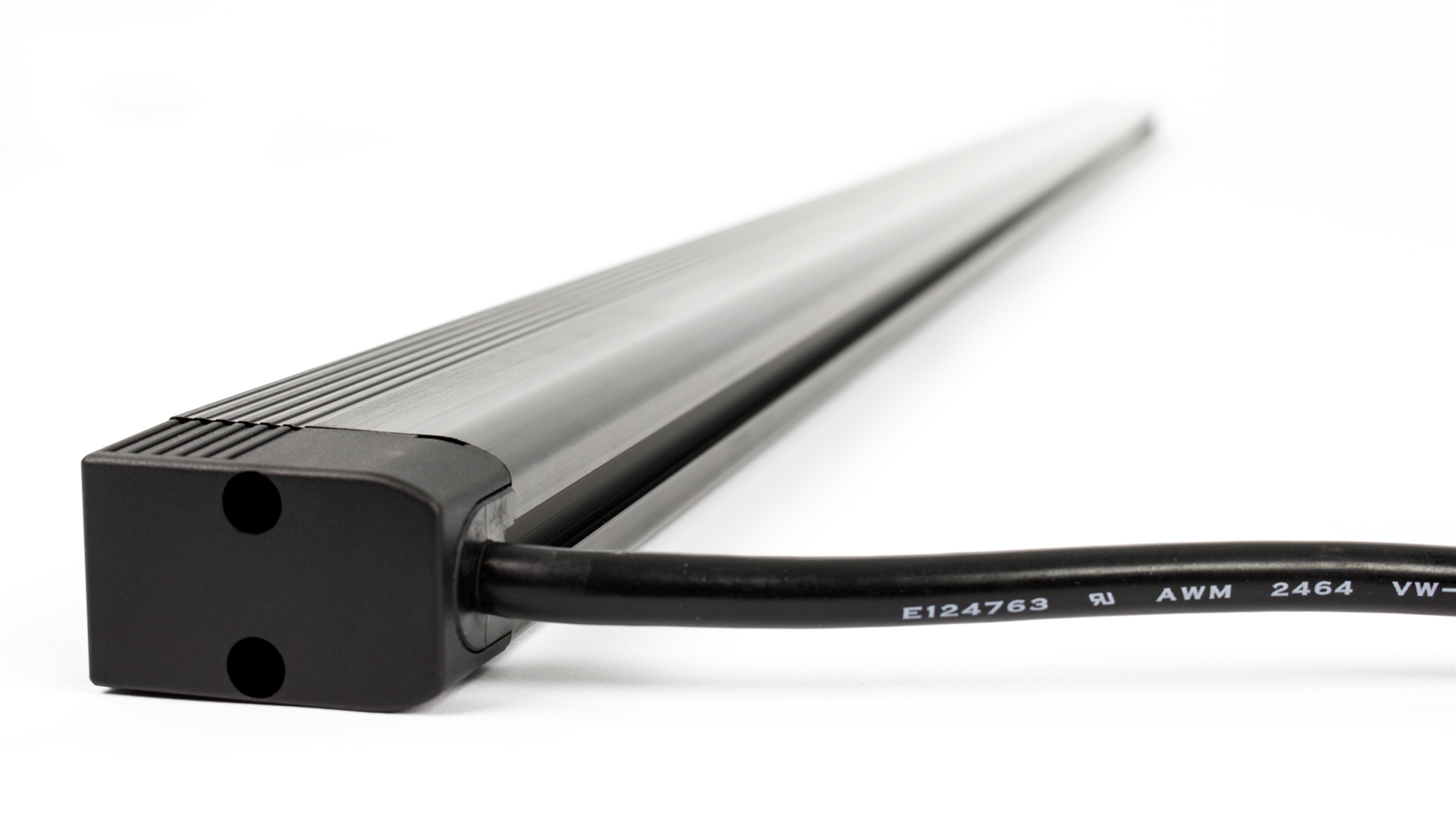

Product code 01050011 Product Name Rayzr Warning Stick (4 Lighthead) - A4 Categories Warning Lights, Rayzr TR3, Traffic Advisors Product Type Products Dimensions Length/width 457.8mm (18.02") Dimensions Height 24mm (0.95") Dimensions Depth 38mm (1.50") Material Colour Black Colour Type Single Colour Maximum Current 1.9A@12.8VDC / 1A@24VDC Operating Temperature -30°C~+65°C Maximum Power 24.4W Traffic Advisor Length 0458mm (18") Connection Type 2 Pin Connector LED Colour Amber LEDs Traffic Director Functions Warning Mode Lens Colour Clear Lens Compliance ECE-R10, SAE J595 Class 1, SAE J845 Class 1 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Cable Type 1 Cable Harness (2 Function/2 Power) LED Elements 12x LEDs Lighthead Quantity 4x Lightheads Warranty 5 Year Warranty IP Rating IP67 Warning Patterns 27 Warning Patterns Net Weight 0.8kg Gross Weight 0.8kg -
Spare Parts
-
-
-
- Lightheads
- Single Colour
- 3x LEDs
- 2 Pin Connector
- Clear Lens
-
-
-

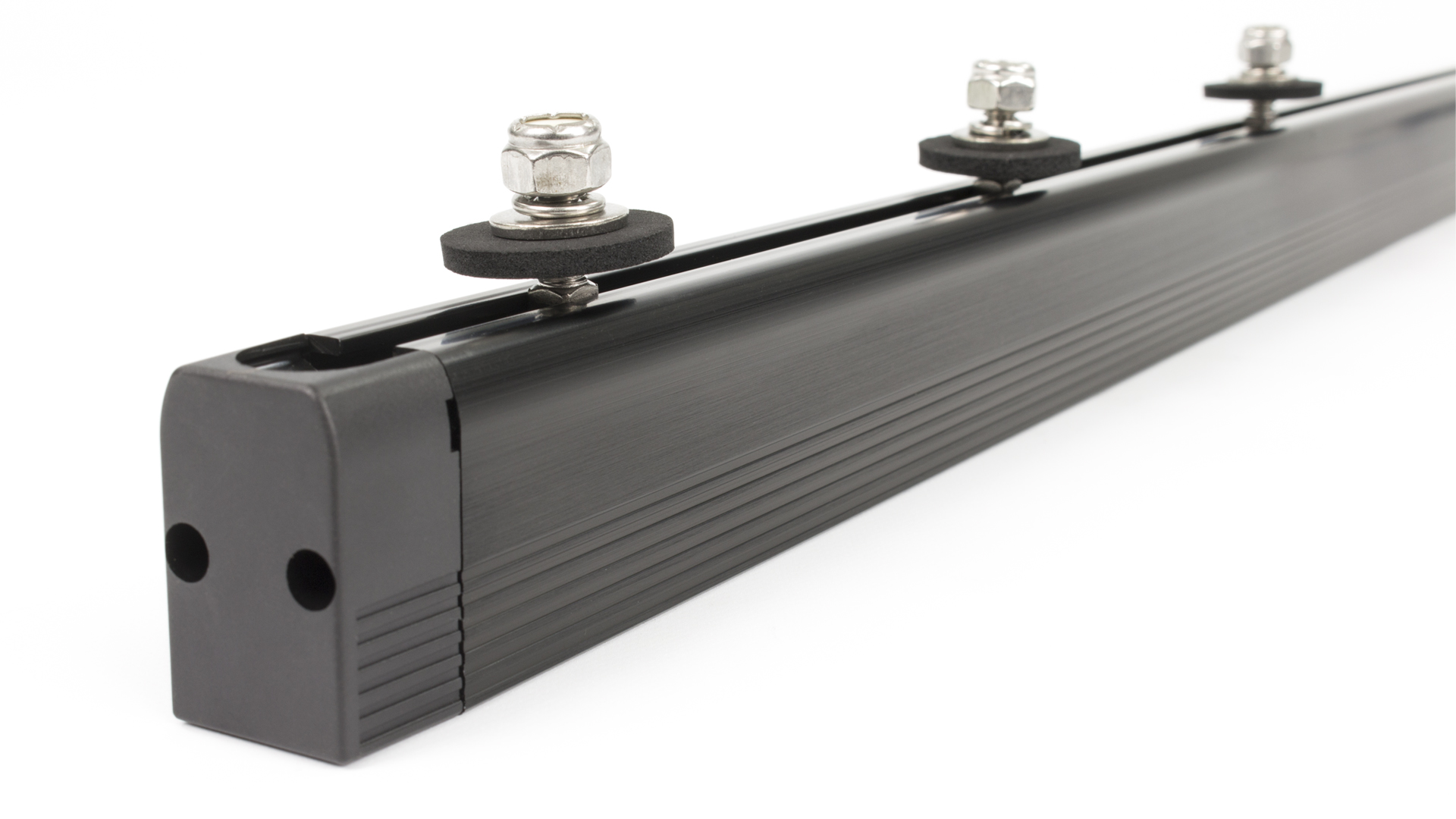

Mounting
-
- Downloads
