Specifications
Product Specifications

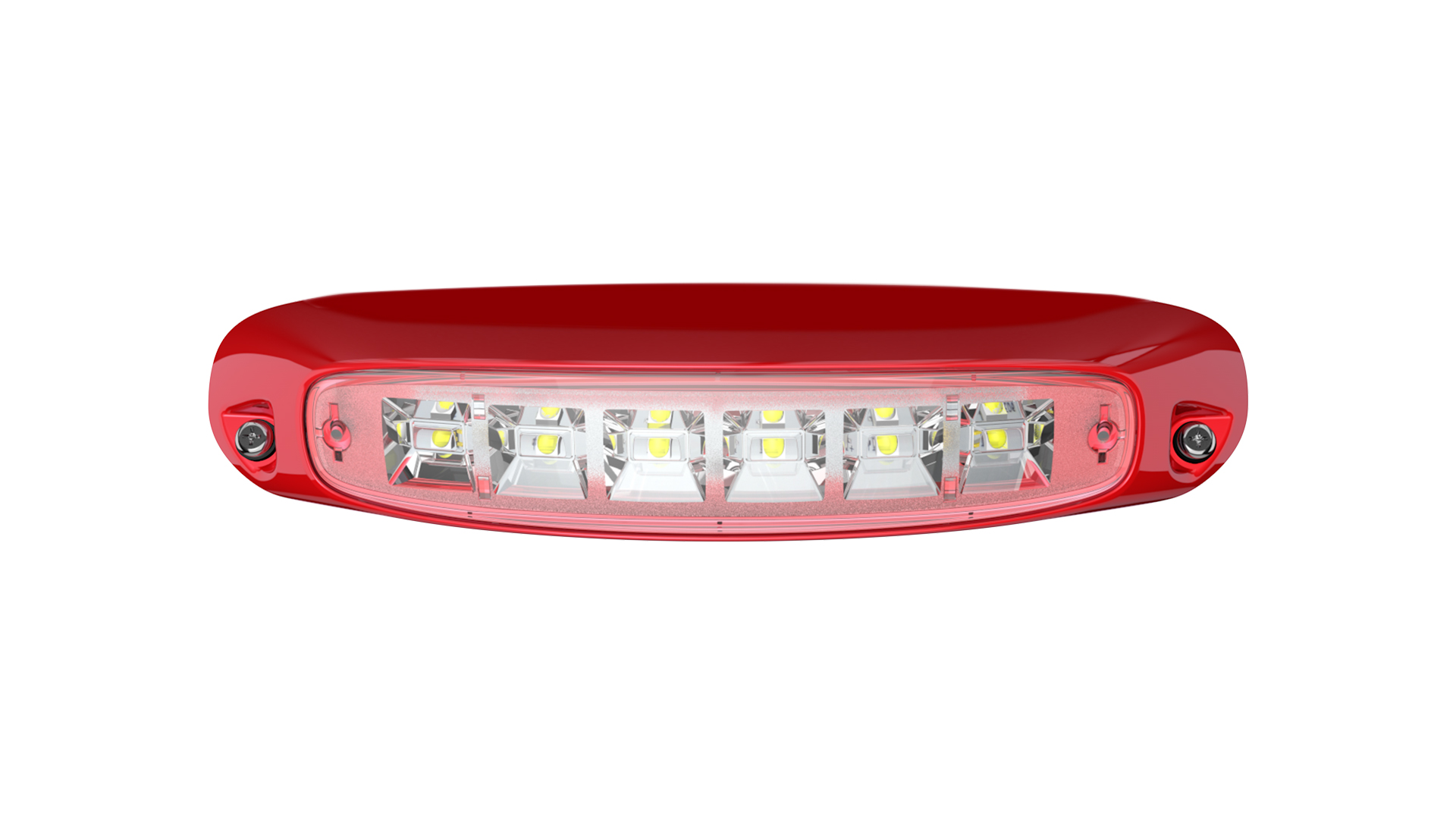

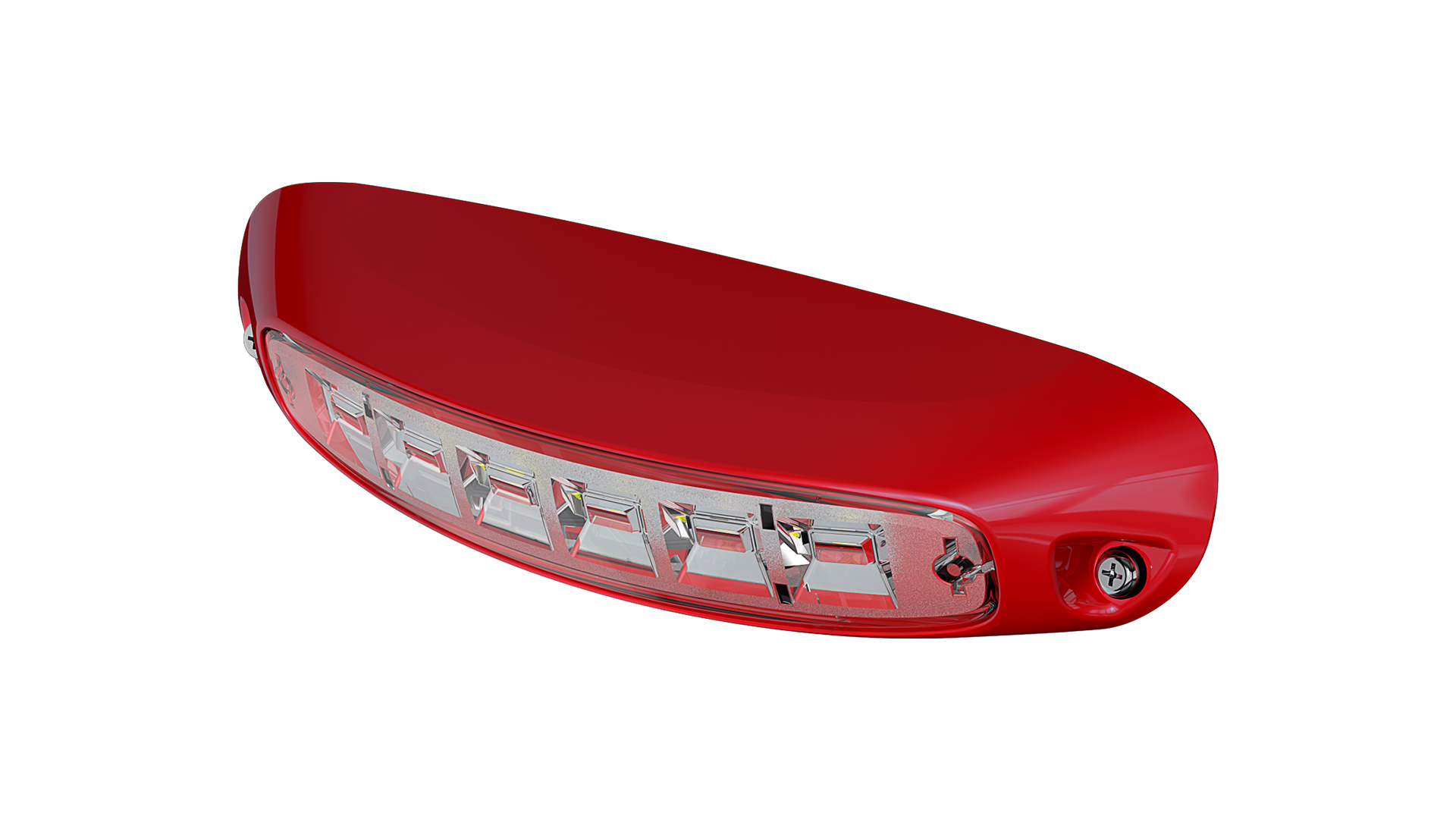

Product code 07040153 Product Name SL209 Scene Lamp - White (Housing - Red) Categories SL209 Exterior Scene Light, Scene Lamps, Illumination Product Type Products Dimensions Length 226.82mm (8.93") Dimensions Height 62.05mm (2.44") Dimensions Width 41.68mm (1.64") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.12A@12VDC / 0.56A@24VDC Operating Temperature -40°C~+60°C Maximum Power 13.44W LED Colour White LEDs Fuse Rating 1.5A Lens Colour Clear Lens Compliance ECE-R10, CISPR25 Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IPX7 Wire Length 210mm Mounting Orientation Horizontal Raw Lumens 1730lm Gross Weight 0.40kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty - Downloads
