Specifications
Die-cast aluminium base for efficient heat dissipation and high LED durability.
Over 1730 lumen output; Luminous intensity ëº 820 lux at 1 meter.
Curved design to maximize coverage with streamline aesthetics.
Weatherproof and vibration resistant design for external use.
Certified ECE R10 and CISPR 25 Class 3.
Reverse polarity protection.Product Specifications

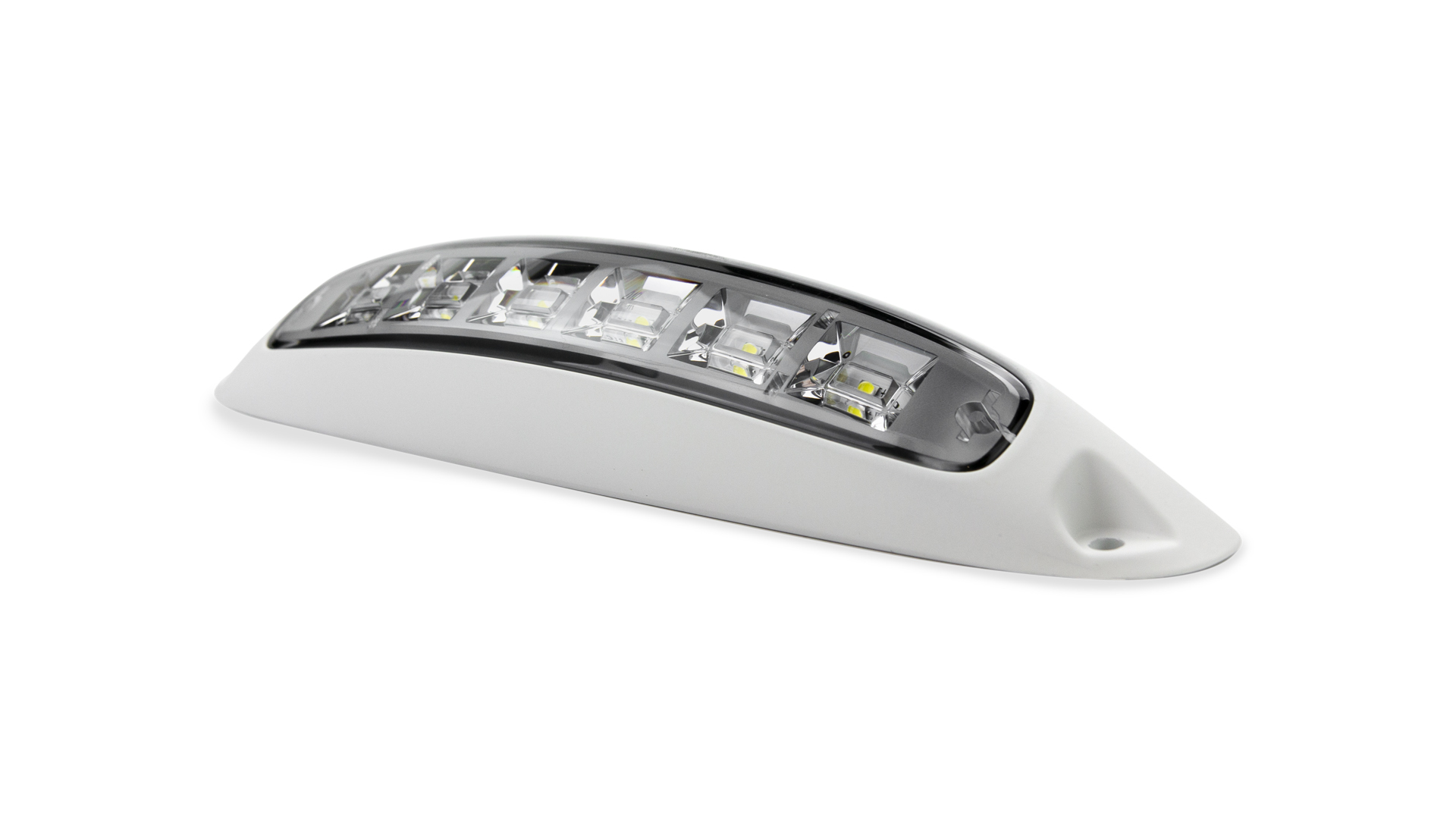

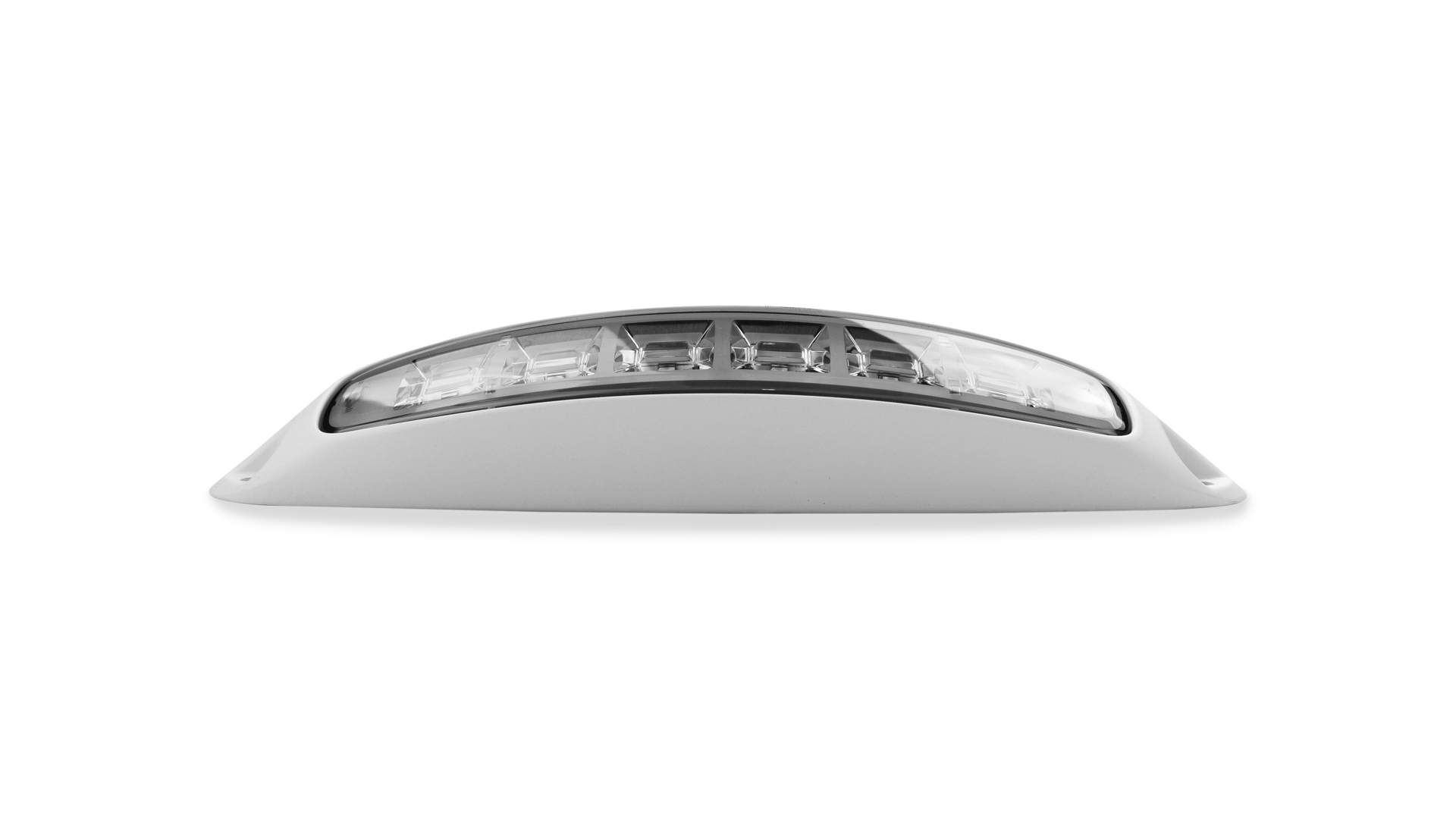

Product code 07040085 Product Name SL209 Scene Lamp - White (Housing - White) Categories Scene Lamps, SL209 Exterior Scene Light, Illumination Product Type Products Dimensions Length/width 226.82mm (8.93") Dimensions Height 62.05mm (2.44") Dimensions Depth 41.68mm (1.64") Colour Type Single Colour Maximum Current 1.12A@12VDC / 0.56A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -40°C~+60°C Maximum Power 13.44W LED Colour White LEDs Fuse Rating 1.5A Lens Colour Clear Lens Compliance ECE-R10, CISPR25 Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 6x LEDs IP Rating IPX7 Wire Length 210mm Mounting Orientation Horizontal Raw Lumens 1730lm Gross Weight 0.40kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty - Downloads
