Specifications
Product Specifications

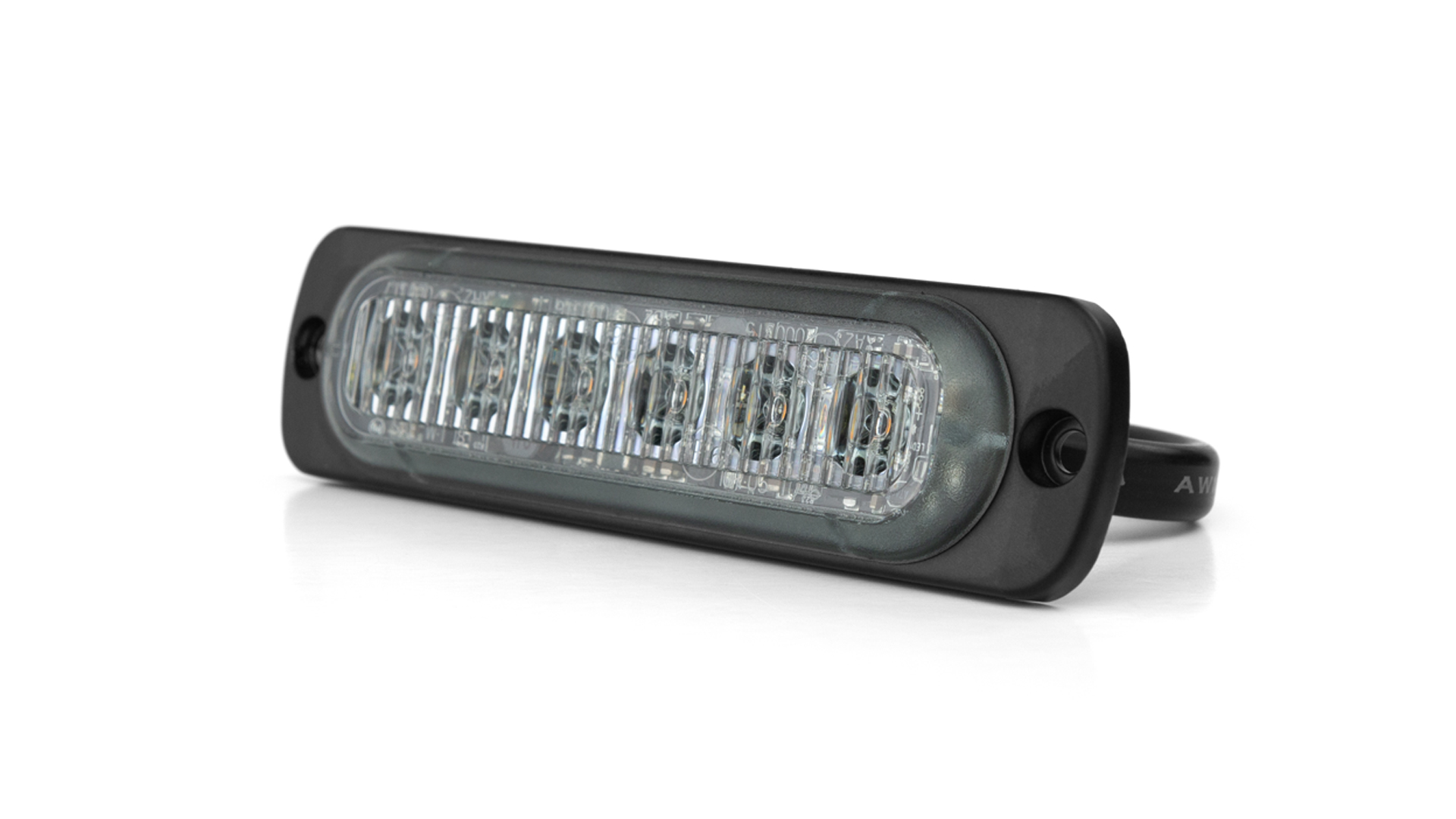

Product code 02160757 Product Name ST6 R65 Class 1 (Horizontal) - AT (Tinted Lens) Categories Warning Lights, Directionals, Super Thin, ST6, Modules Product Type Products Dimensions Length/width 112mm (4.4") Dimensions Height 28mm (1.10") Dimensions Depth 9mm (0.35") Material Colour Black Colour Type Single Colour Fuse Rating 2A Maximum Current 1.2A@12VDC / 0.6A@24VDC Operating Temperature -30°C~+65°C Maximum Power 14.4W Synchronisation 15 Module Synchronisation LED Colour Amber LEDs Lens Colour Tinted Lens Compliance ECE-R10, ECE-R65 (XA1), CISPR25, SAE J595 Class 1 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount (Horizontal) Cable Type Cable (Pigtail) LED Elements 6x LEDs Warranty 5 Year Warranty IP Rating IPX7 Flash Patterns 29 Warning Patterns Net Weight 0.05kg Gross Weight 0.05kg -
Spare Parts
-
-
Mounting
-
- Shroud Kits
- 60°
- Acrylonitrile Styrene Acrylate (ASA)
- Self Adhesive Mount
-
-
- Powder-Coated Aluminium
- Dual L-Bracket (Top/Bottom)
-
-
- Powder-Coated Aluminium
- Dual L-Bracket (Side by Side)
-
-
- Downloads
