Specifications
Self-contained; no external flasher required.
Multi-units synchronization in simultaneous or alternating flash.
0.35″ (9mm) Super low-profile optic with SAE Class 1 certified output.
Fully weatherproof and vibration resistant design for external or internal use.
Multi-memories design for instant switch between selected flash pattern and/or colours.
Solid aluminium housing for efficient heat dissipation and maximum durability.
Non-volatile memory recalls last flash pattern used at power up.
Reverse polarity protection.Product Specifications

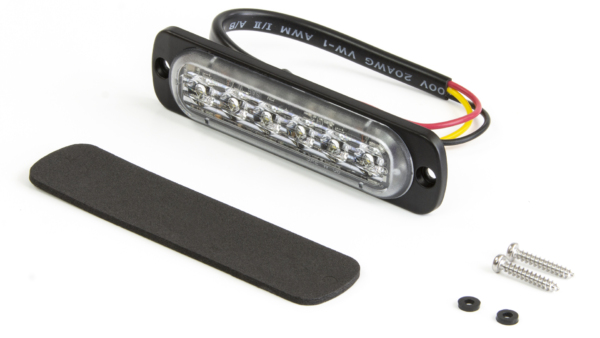

Product code 02160405 Product Name ST6 (Vertical) - Green Categories Lighting, Super Thin, Directionals, ST6, Modules Product Type Products Dimensions Length 28mm Dimensions Height 113mm Dimensions Width 9mm Bezel Colour Black Colour Type Single Colour Maximum Current 1A@12VDC / 0.5A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 10W Synchronisation 15 Unit Sync LED Colour Green LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10 Optic Type TIR Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IPX7 Flash Patterns 23 Flash Patterns Wire Length 250mm Mounting Orientation Vertical Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-

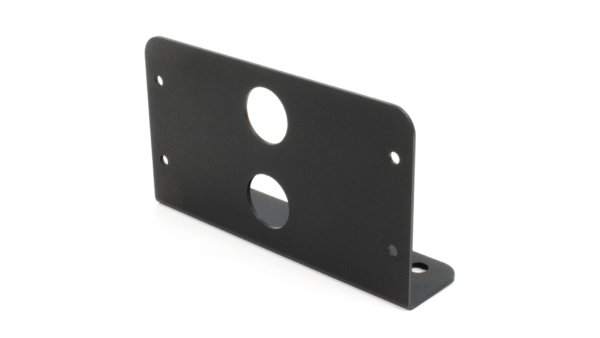

Mounting
-
- Downloads
