Specifications
7 switches control panel with 3 x 0.2Amp and 4 x 0.1Amp outputs for auxiliary device power or function activation.
1 programable short cut button for quick activation of pre-set buttons.
Fully programable buttons in ON/OFF or momentary switch mode.
10 LED signal indicator for your lightbar or traffic director.

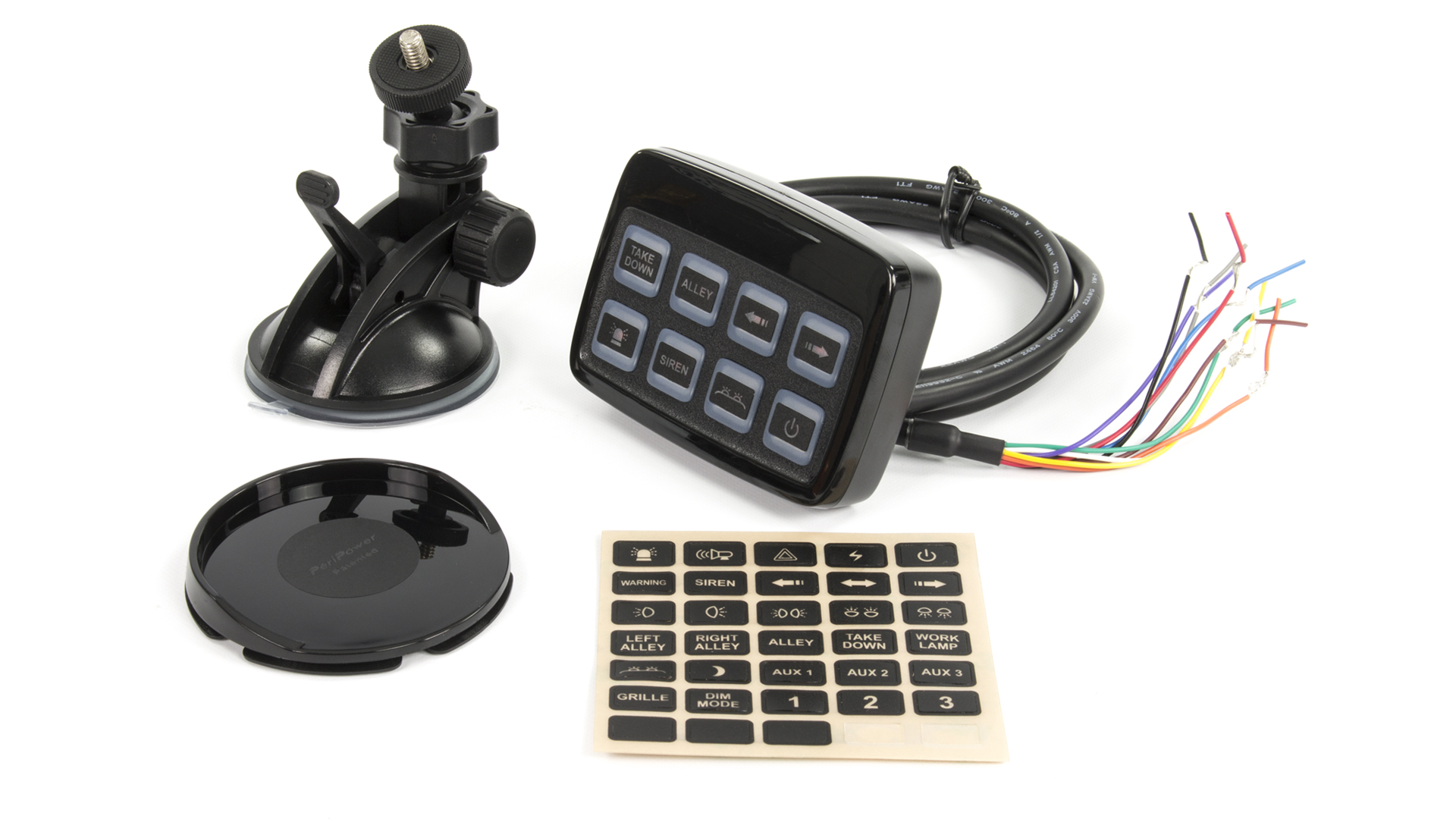

35 selectable icon stickers to clearly label your panel.
European Siren Interlock compatible.
Backlit rubber touch buttons.Product Specifications
Product code 12060023 Product Name SW830-2 Control Panel (Suction mount) Categories Electronic Equipment, SW830-2 Control Panel, Control Systems Product Type Products Dimensions Length/width 95mm (3.74") Dimensions Height 68.8mm (2.7") Dimensions Depth 25.5mm (1.0") Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Switch Current max 32A / min 0.01A, max 0.2A x 5 ports / max 10A x 3 ports Fuse Rating 35A Compliance ECE-R10 Input Voltage 12VDC~24VDC Mounting Option Suction Mount Cable Type Cable (Straight) Wire Length 1200mm Gross Weight 0.35kg Conductor Cross-Section 0.34mm² (22AWG) Warranty 2 Year Warranty Indicator LEDs LED Indicators x10 -
