Specifications
Product Specifications

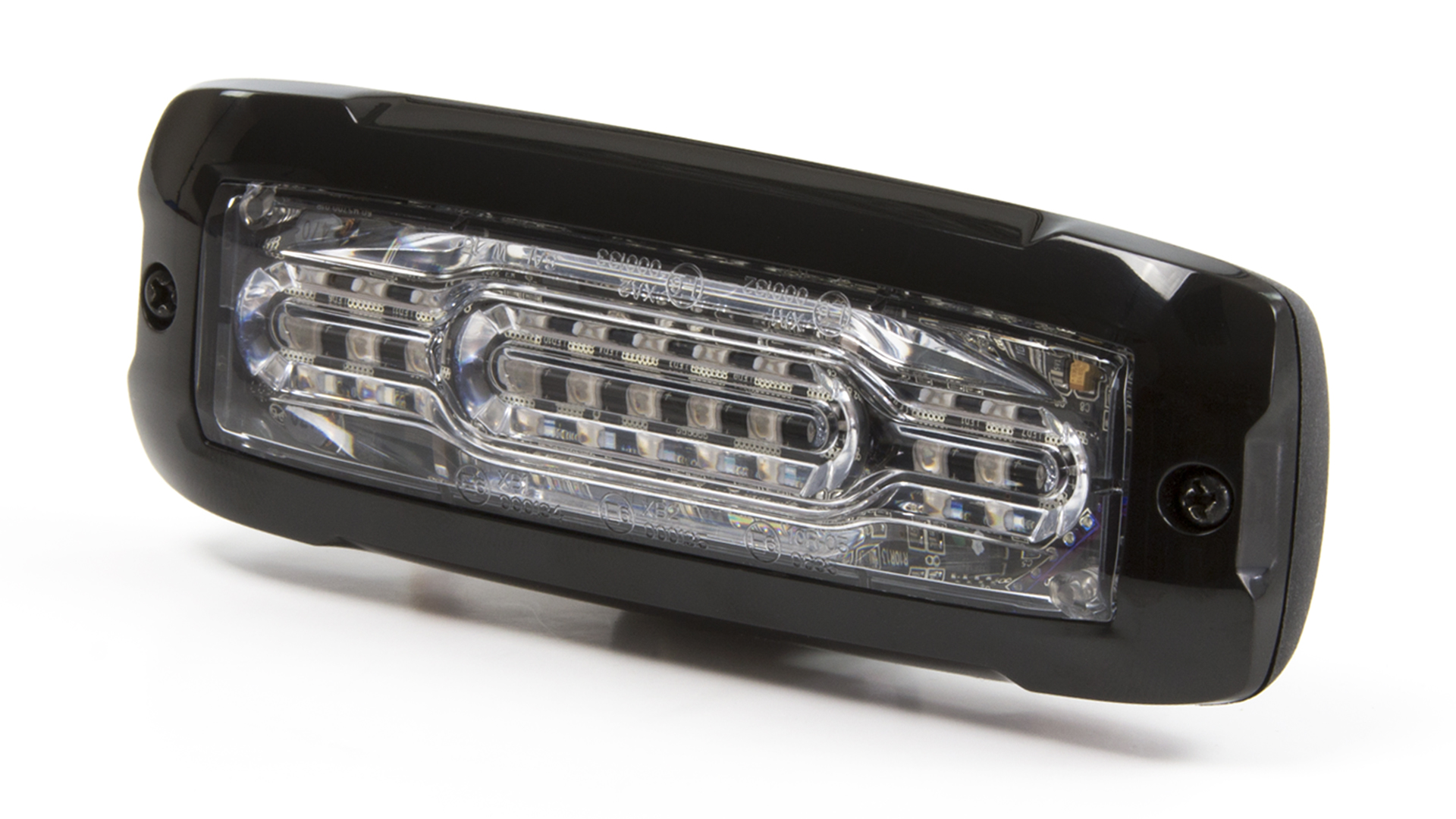

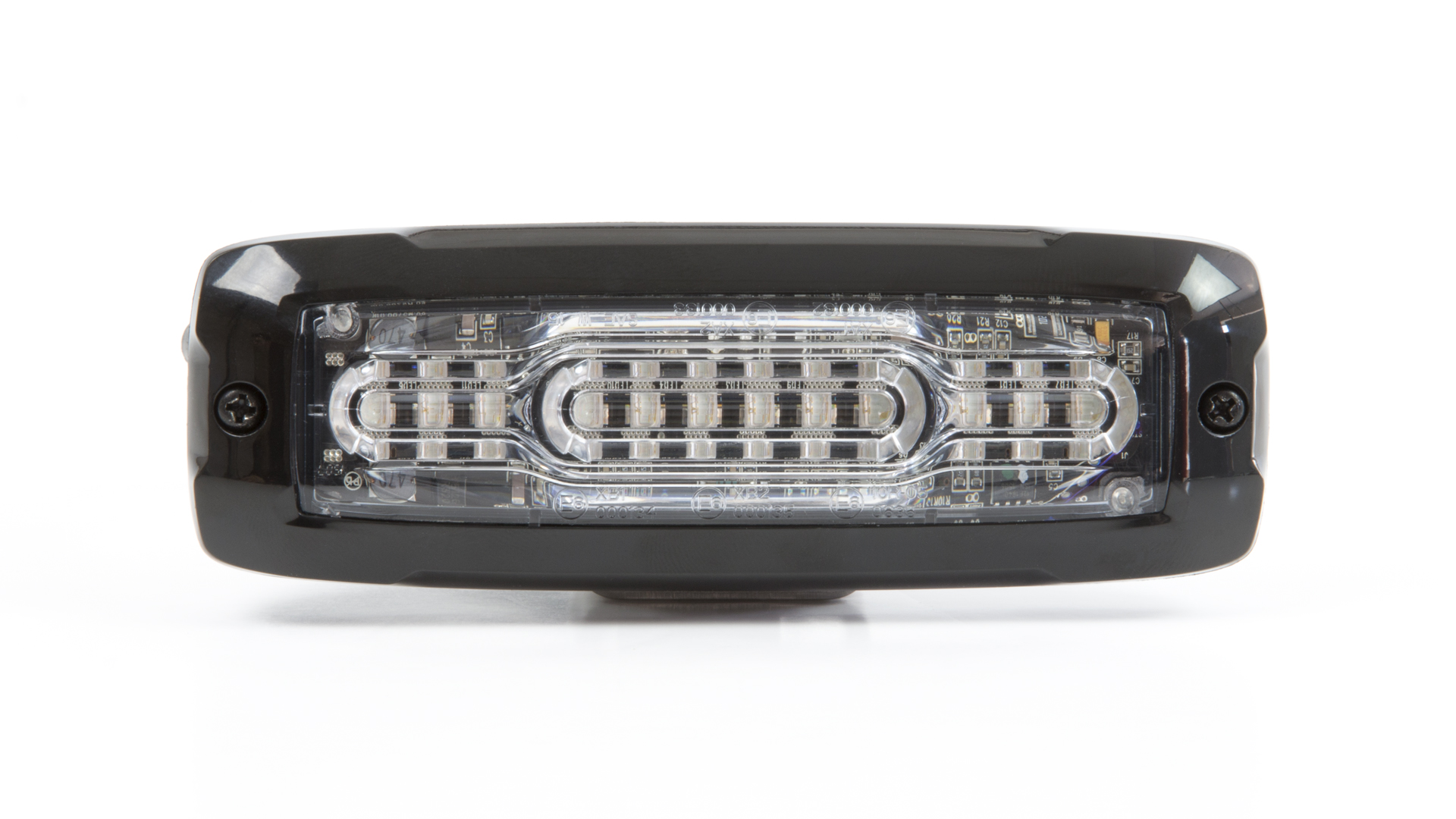

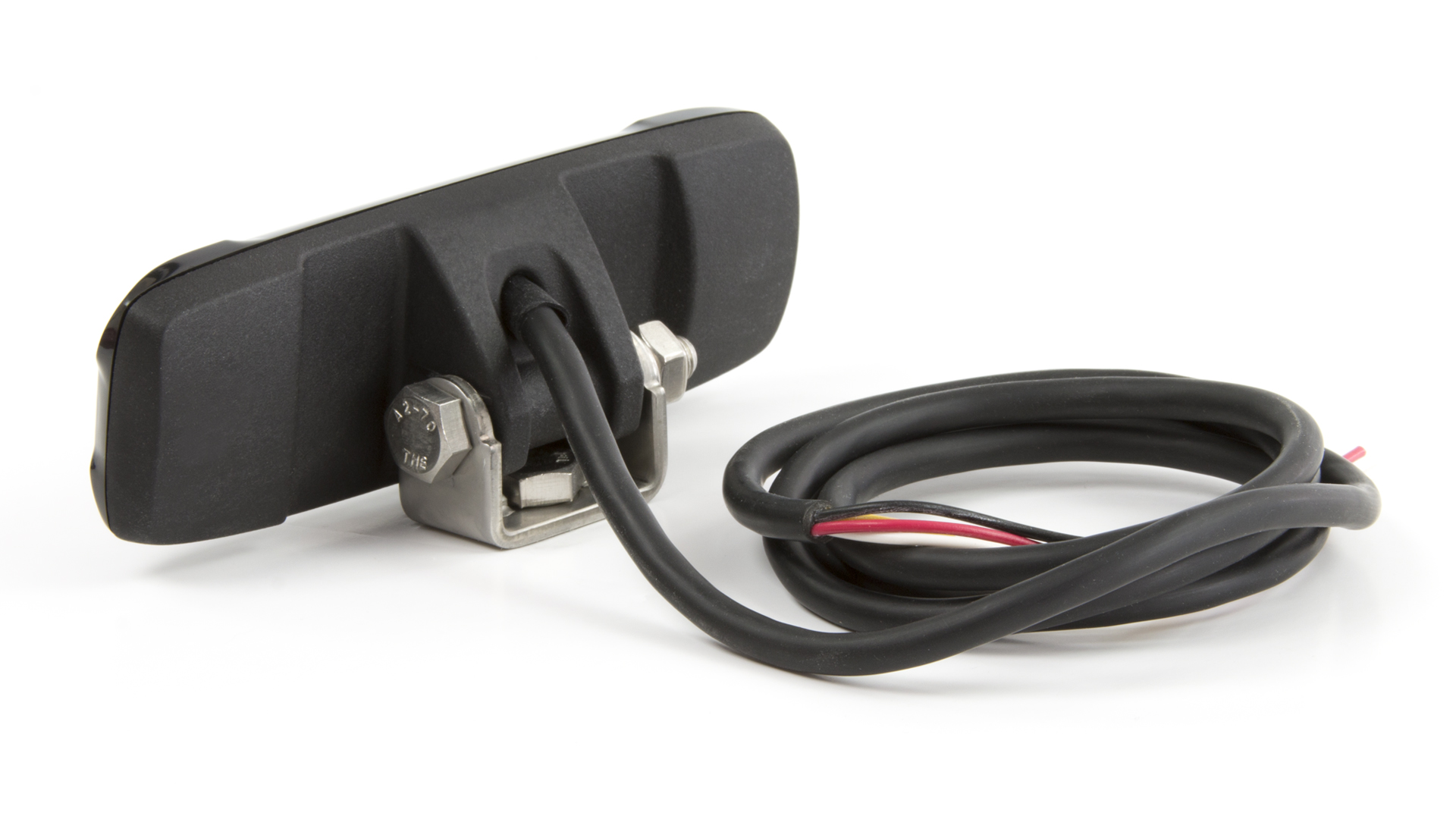

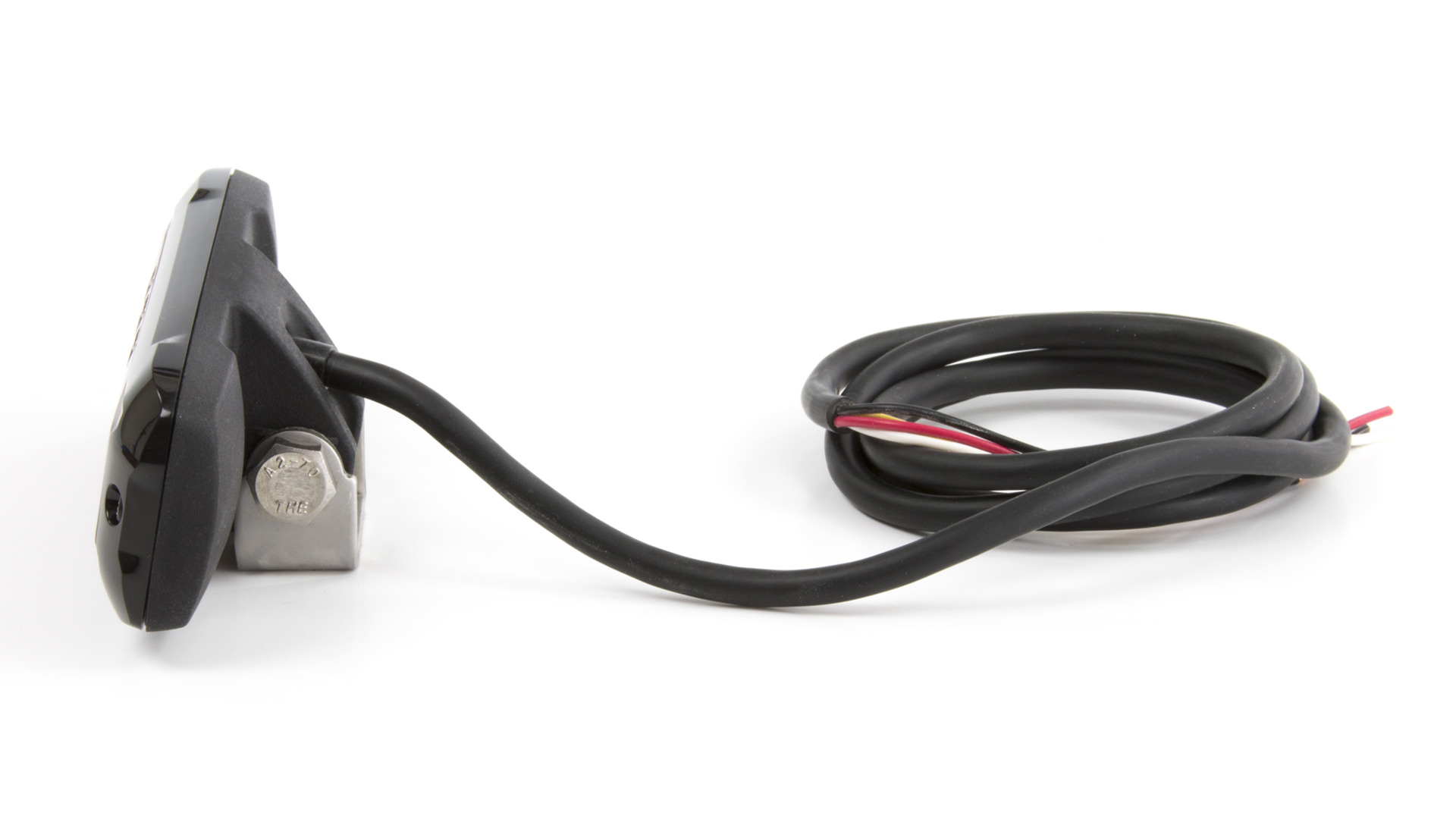

Product code 02120386 Product Name XT12 DC (Pedestal) - AB (Black Bezel) Categories Warning Lights, Directionals, XT12, Xtreme Thin, Modules Product Type Products Dimensions Length 132.6mm (5.22") Dimensions Height 86mm (3.38") Dimensions Width 38.8mm (1.52") Bezel Colour Black Colour Type Dual Colour Maximum Current 1.6A@12VDC / 0.8A@24VDC Maximum Power 19.2W Synchronisation 15 Unit Synchronisation LED Colour Amber LEDs, Blue LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1), ECE-R65 (XB1), SAE J595 Class 1, CA13 Optic Type Xtreme Optics Input Voltage 12VDC~24VDC Mounting Option Pedestal Mount Cable Type Cable (Pigtail) LED Quantity 12x LEDs IP Rating IPX8 Flash Patterns 28 Flash Patterns Wire Length 265mm Mounting Orientation Horizontal Gross Weight 0.01kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Downloads
