Specifications
10mm (0.39″) super low-profile design.
New generation Xtreme optic for wide angle visual aesthetics.
Weatherproof and vibration resistant design for internal or external use.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Long life LED’s rated to 100,000 hours of operation.
Aluminium base for efficient heat dissipation.
Reverse polarity protection.Product Specifications

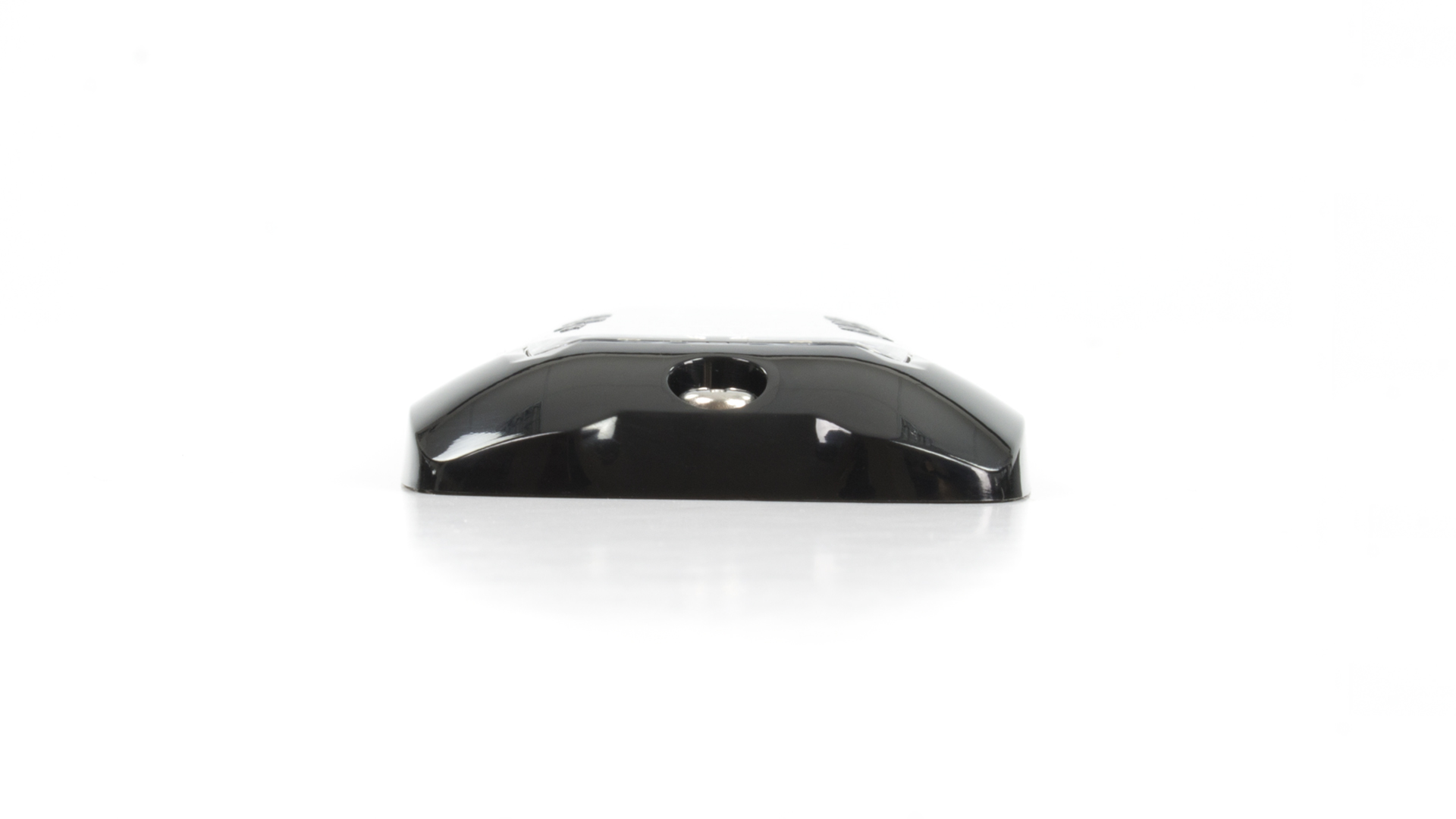

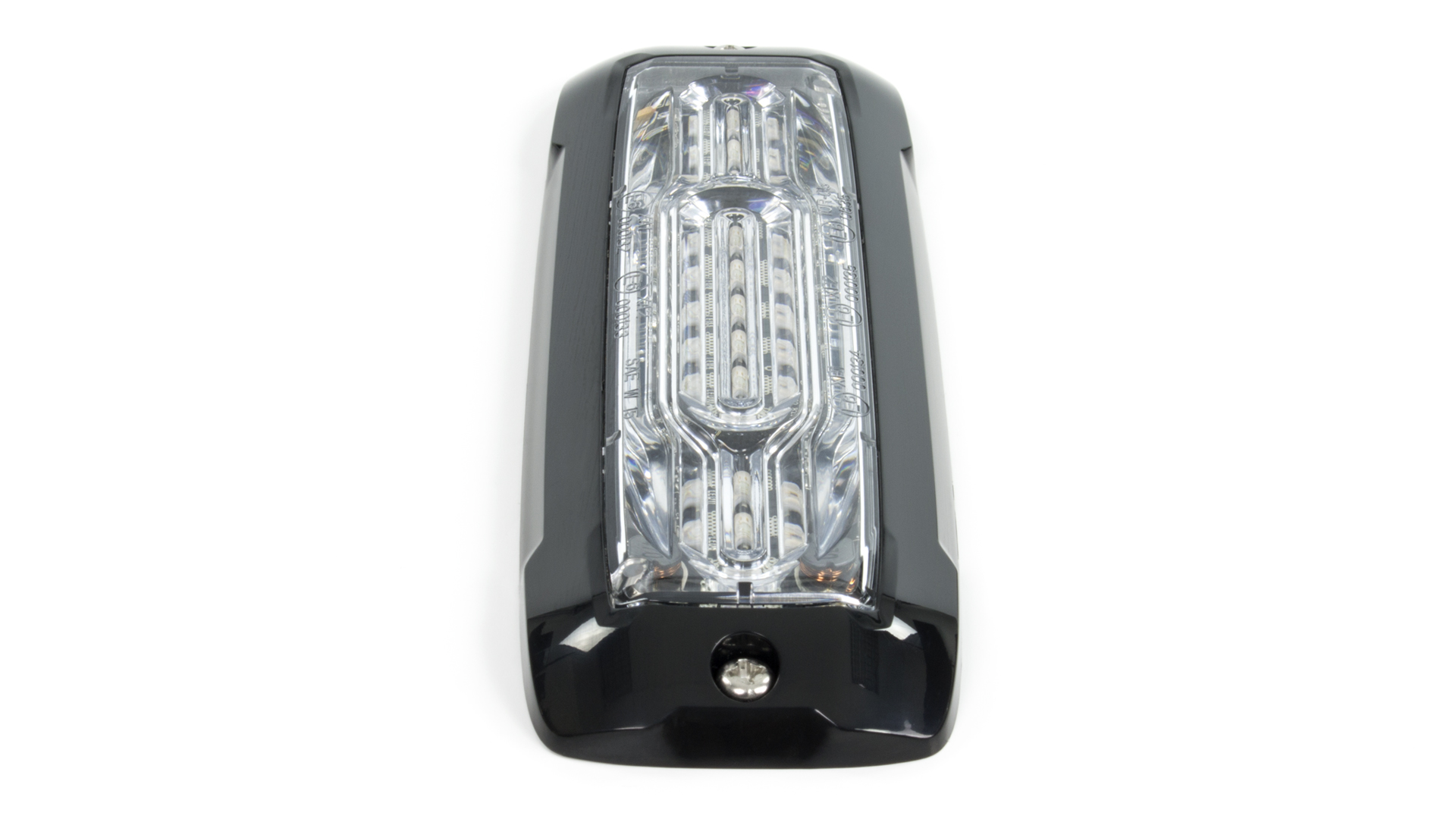

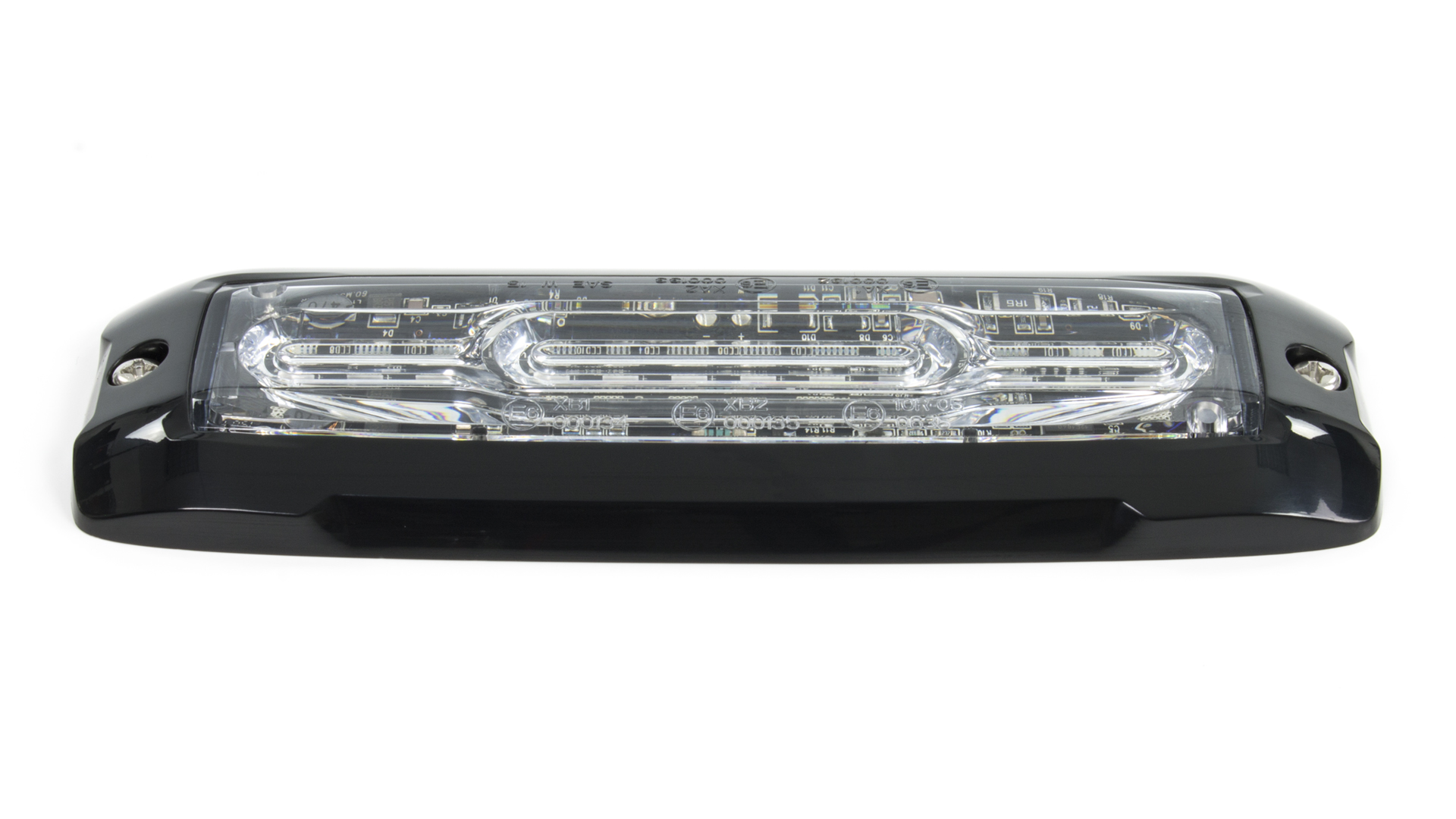

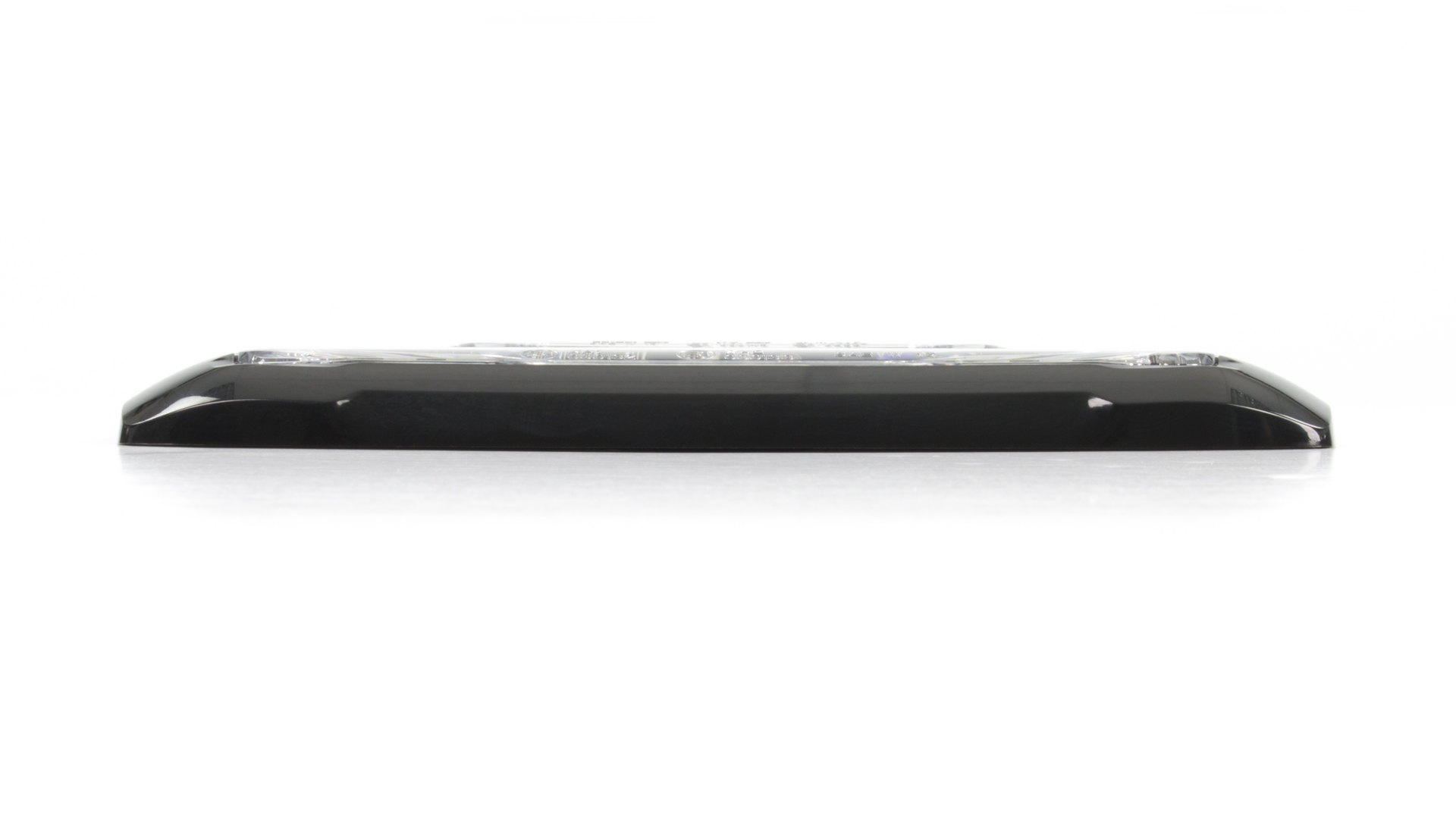

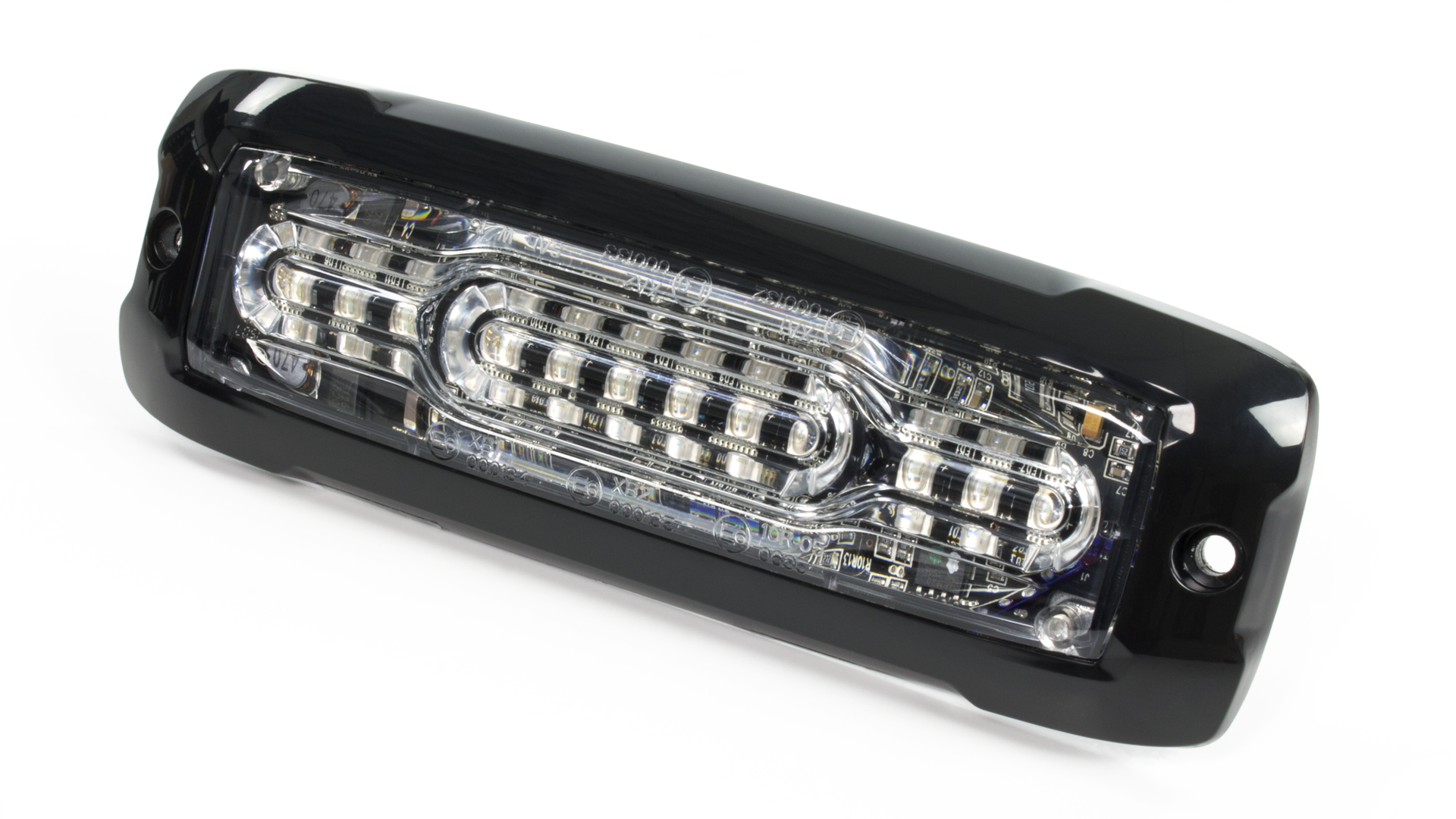

Product code 02120041 Product Name XT12 (Surface) - AC (Black Bezel) Categories Warning Lights, Directionals, XT12, Modules, Xtreme Thin Product Type Products Dimensions Length/width 132.6mm (5.22") Dimensions Height 45mm (1.77") Dimensions Depth 10mm (0.39") Bezel Colour Black Colour Type Single Colour Maximum Current 1.6A@12VDC / 0.8A@24VDC Maximum Power 19.2W LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA2), SAE J595 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type Xtreme Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 12x LEDs IP Rating IPX8 Flash Patterns 16 Flash Patterns Wire Length 265mm Mounting Orientation Horizontal Gross Weight 0.01kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
