Specifications
Multi-voltage input 12-24VDC.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant for external or internal use.
Reverse polarity protection.Product Specifications

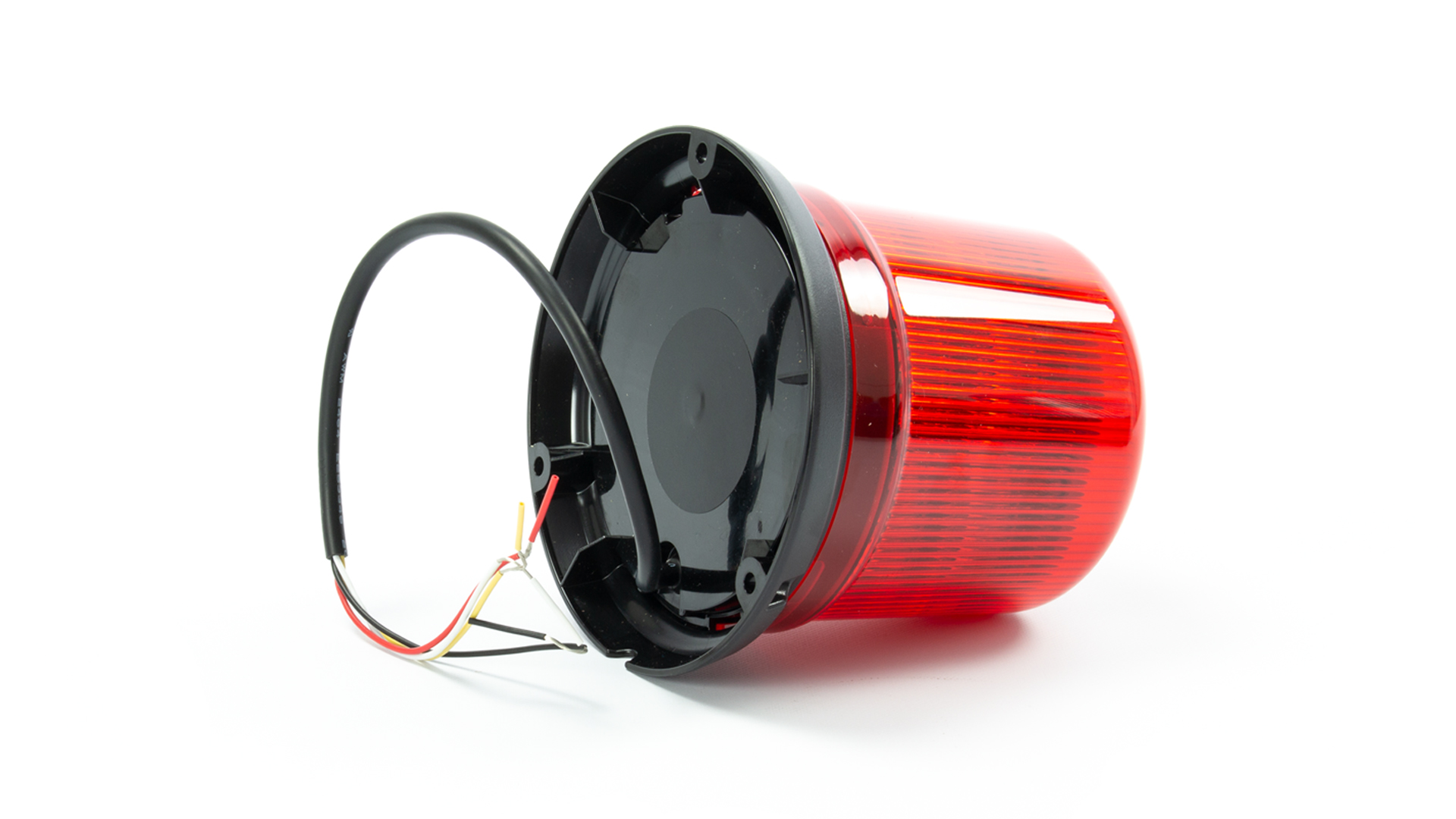

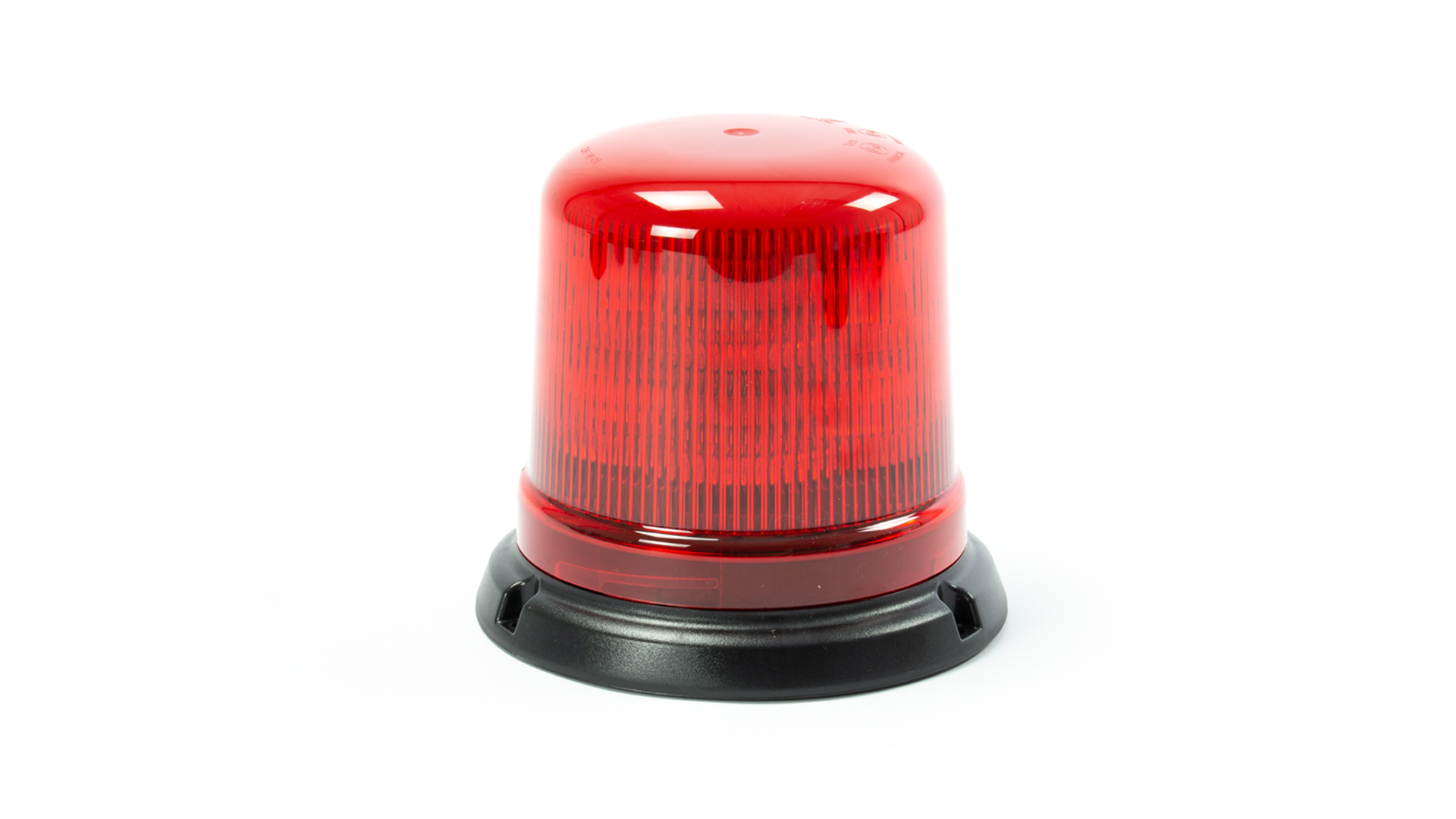

Product code 05190218 Product Name B14 Beacon - RR (3-Bolt Mount) Categories Warning Lamps, Beacons, B14 Beacons Product Type Products Dimensions Height 128mm (5.04") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 3.3A@12VDC / 1.75A@24VDC Operating Temperature -30°C~+65°C Maximum Power 42W Synchronisation 4 Unit Sync Diameter ⌀142mm (5.59") LED Colour Red LEDs Fuse Rating 5A Lens Colour Red Lens Compliance ECE-R10, ECE-R65 (TR1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 10x LEDs IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 400mm Gross Weight 0.92kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Acrylonitrile Styrene Acrylate (ASA)
- ⌀142mm (5.59")
- 3-Bolt Mount
- Black
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Circular 2 Hole Mounting Flange
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Horizontal Mounting Plate
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Clamping Flange
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Vertical Mounting Plate
-
-
-
-
-
