Specifications
Multi-voltage input 12-24VDC.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant for external or internal use.
Reverse polarity protection.Product Specifications

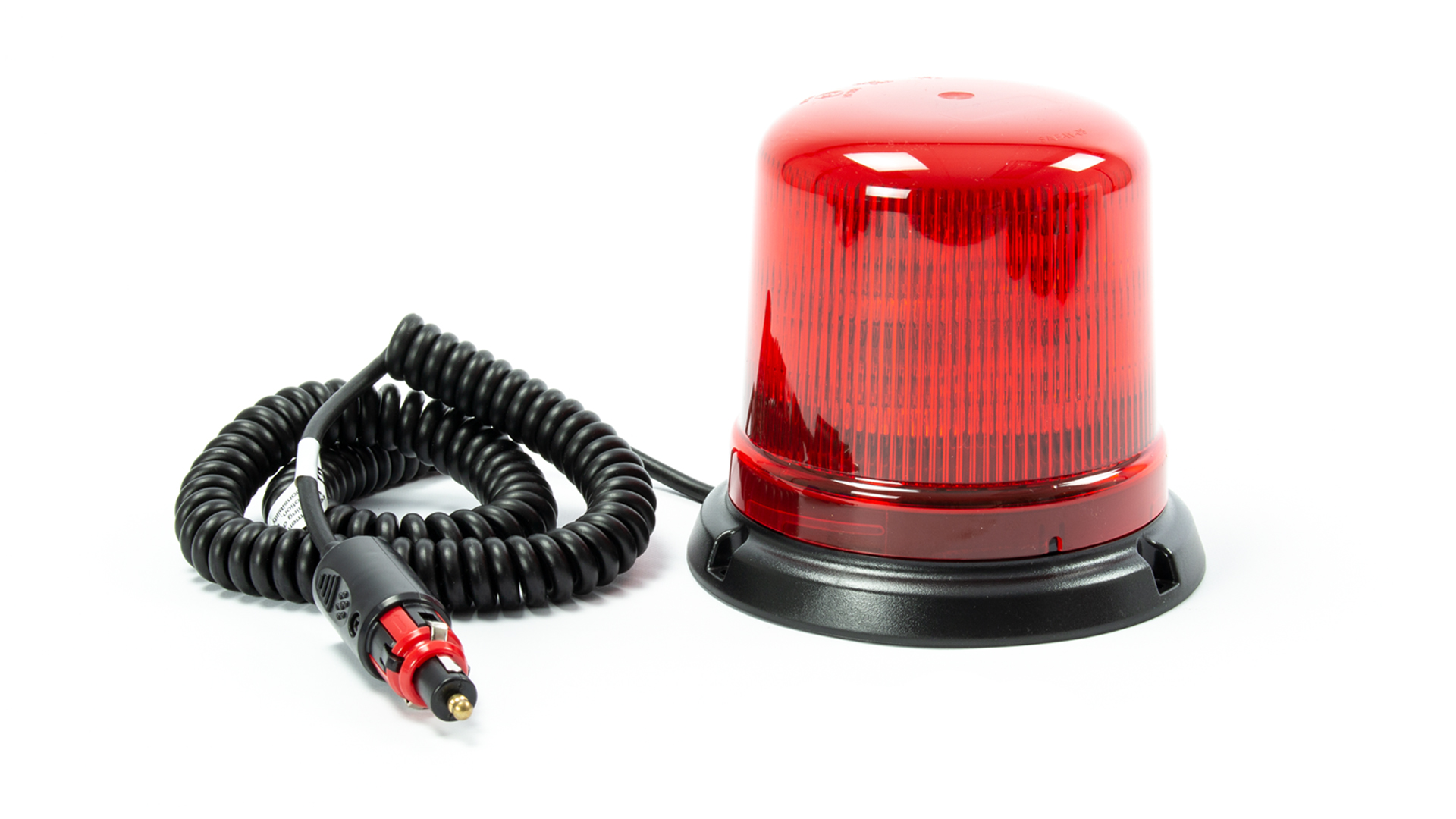

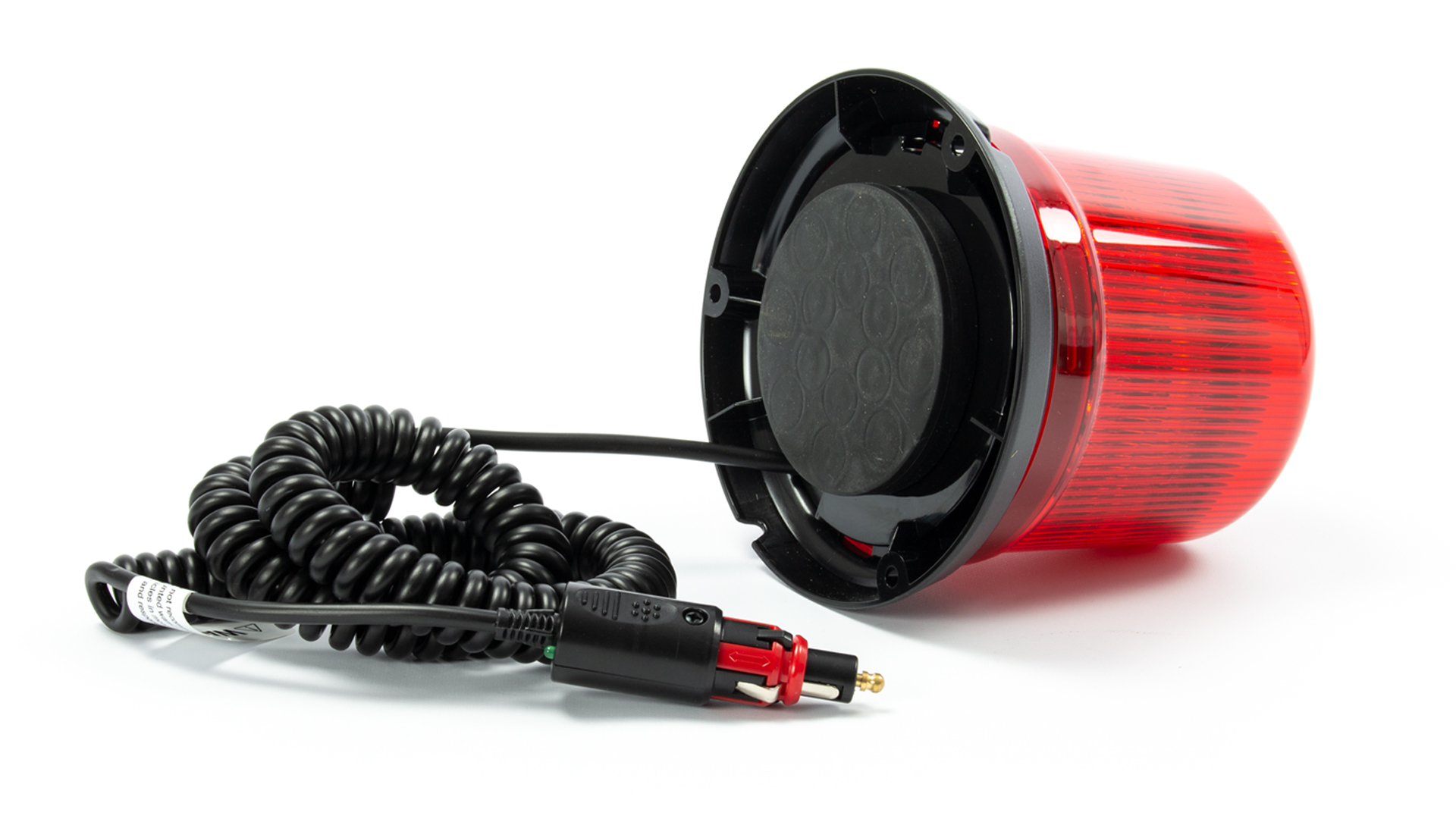

Product code 05190362 Product Name B14 - RR (Internal Power Magnetic Mount - Coil) Categories Warning Lights, Beacons, B14 Beacons Product Type Products Dimensions Height 128mm (5.04") Colour Type Single Colour Maximum Current 3.3A@12VDC / 1.75A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 42W Synchronisation 4 Unit Synchronisation Connection Type Cigar Plug Diameter ⌀142mm (5.59") LED Colour Red LEDs Fuse Rating 5A Lens Colour Red Lens Compliance ECE-R10, ECE-R65 (TR1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Power Magnetic Mount (Internal) Cable Type Cable (Coiled) LED Elements 10x LEDs IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 2500mm Gross Weight 1.25kg Warranty 5 Year Warranty -
