Specifications
Product Specifications

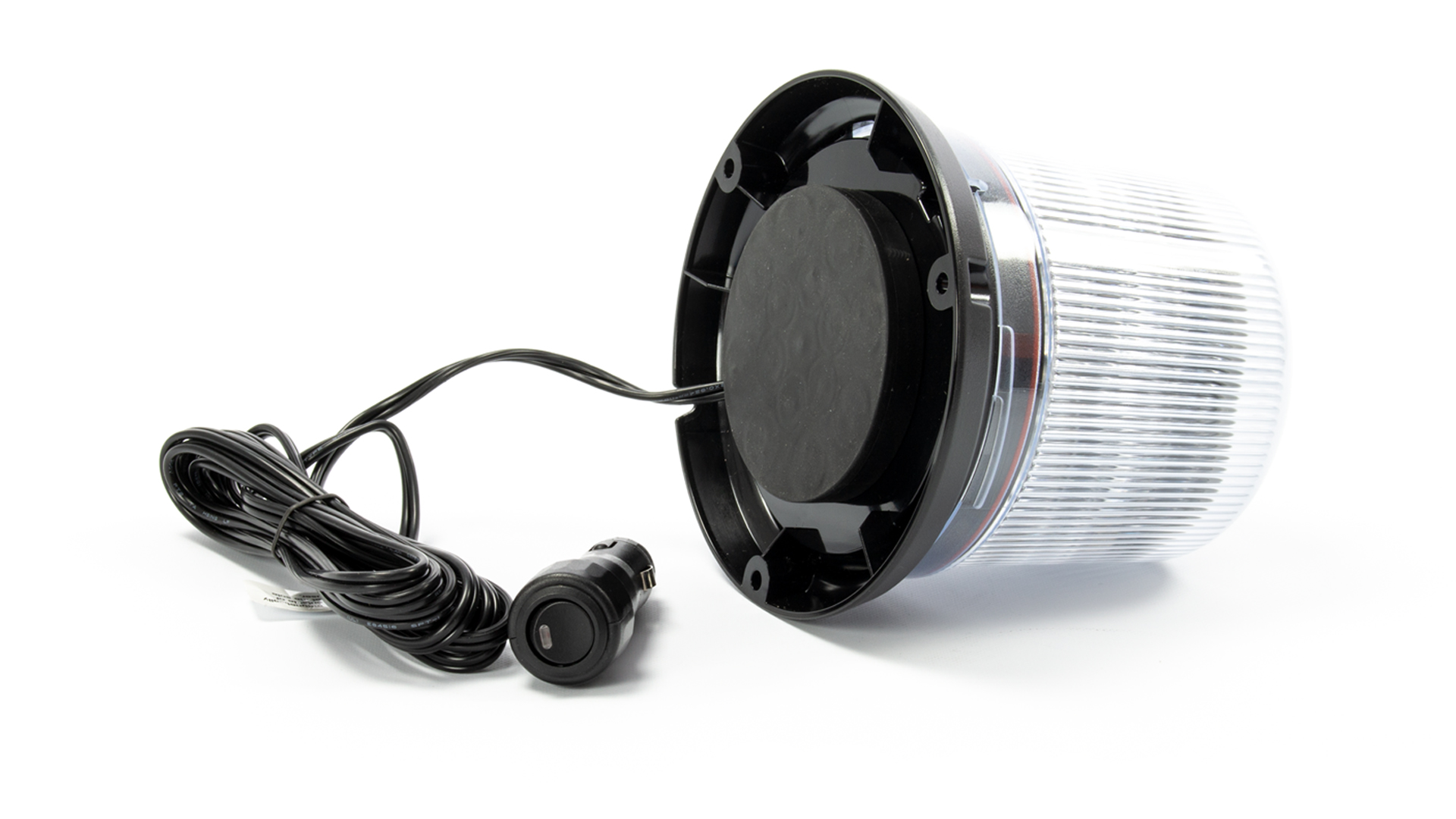

Product code 05190300 Product Name B14 Beacon - AC (Magnetic/Power/Internal - Straight) Categories Warning Lamps, Beacons, B14 Beacons Product Type Products Dimensions Height 128mm (5.04") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 3.3A@12VDC / 1.75A@24VDC Operating Temperature -30°C~+65°C Maximum Power 42W Synchronisation 4 Unit Sync Connection Type Cigar Plug (Latching Switch) Diameter ⌀142mm (5.59") LED Colour Amber LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 10x LEDs IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 3000mm Gross Weight 1.25kg Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Acrylonitrile Styrene Acrylate (ASA)
- ⌀142mm (5.59")
- 3-Bolt Mount
- Black
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Circular 2 Hole Mounting Flange
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Horizontal Mounting Plate
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Clamping Flange
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Vertical Mounting Plate
-
-
-
-
-
- Downloads
