Specifications
Product Specifications

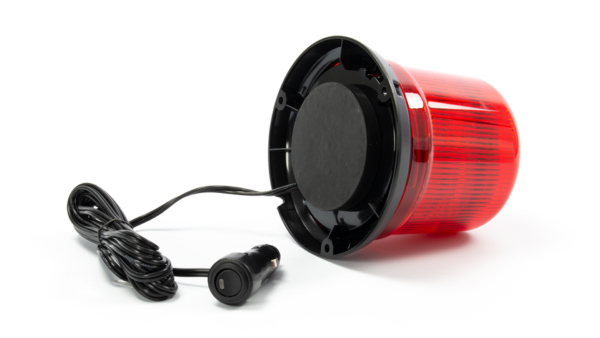

Product code 05190379 Product Name B14 Beacon - RR (Magnetic/Power/Internal - Straight) Categories Lighting, Beacons, B14 Beacons Product Type Products Dimensions Height 128mm Colour Type Single Colour Maximum Current 3.3A@12VDC / 1.75A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 42W Synchronisation 4 Unit Sync Connection Cigar Plug (Latching Switch) Diameter ⌀142mm LED Colour Red LEDs Fuse Rating 5A Lens Colour Red Lens Compliance ECE R10, ECE R65 - TR1, SAE J845 Class 1, California Title 13 Nominal Voltage 12-24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 10LED IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 3000mm Warranty 5 Year Warranty -
