Specifications
Non-volatile flash pattern memory.
ECE R10 EMC electromagnetic compatibility.
Newly design LED optic certified ECE R65 rotating beacon.
Weatherproof and shockproof capability for all environment.
Reverse polarity protection.
100,000 hour rated LEDProduct Specifications

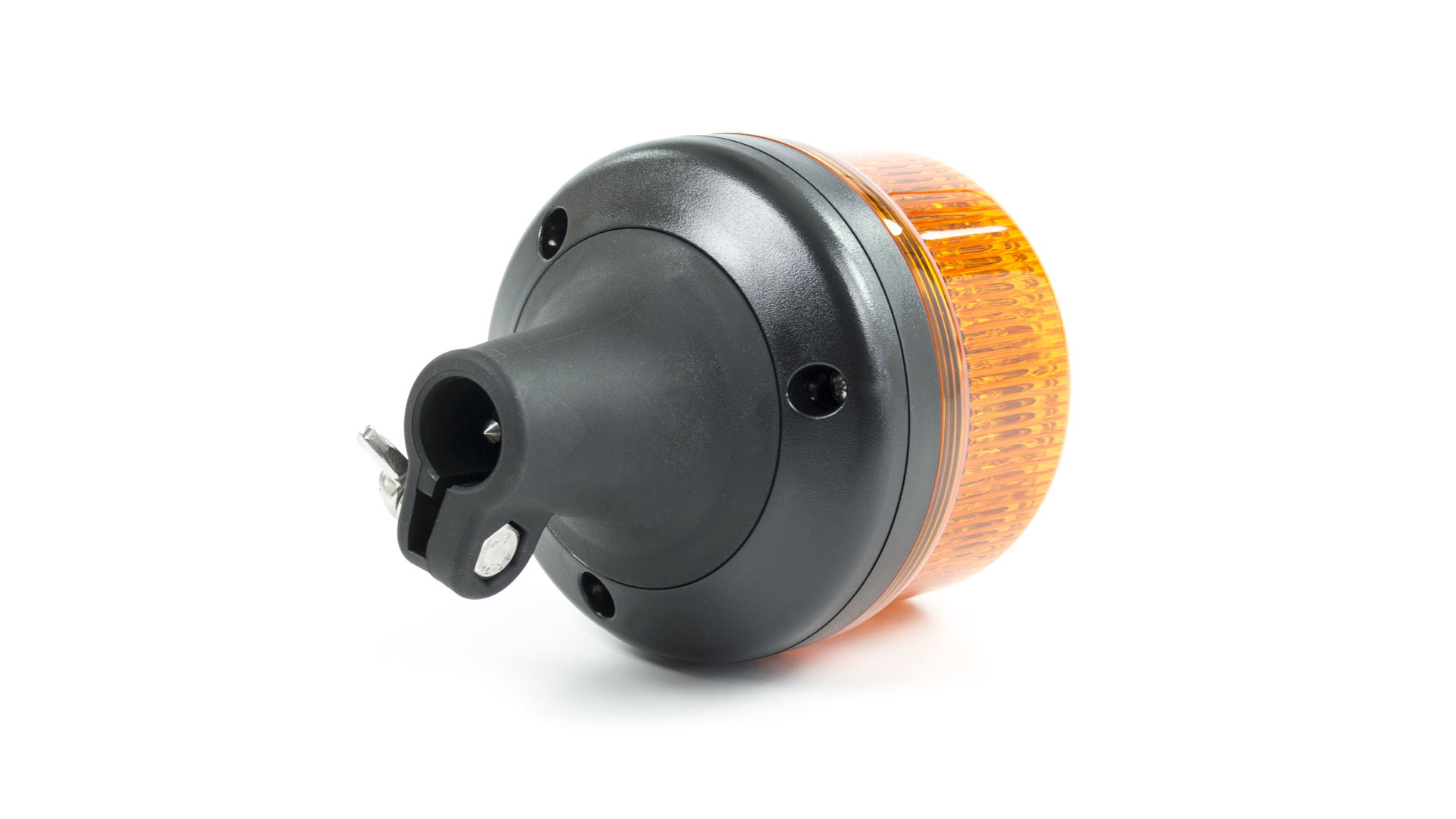

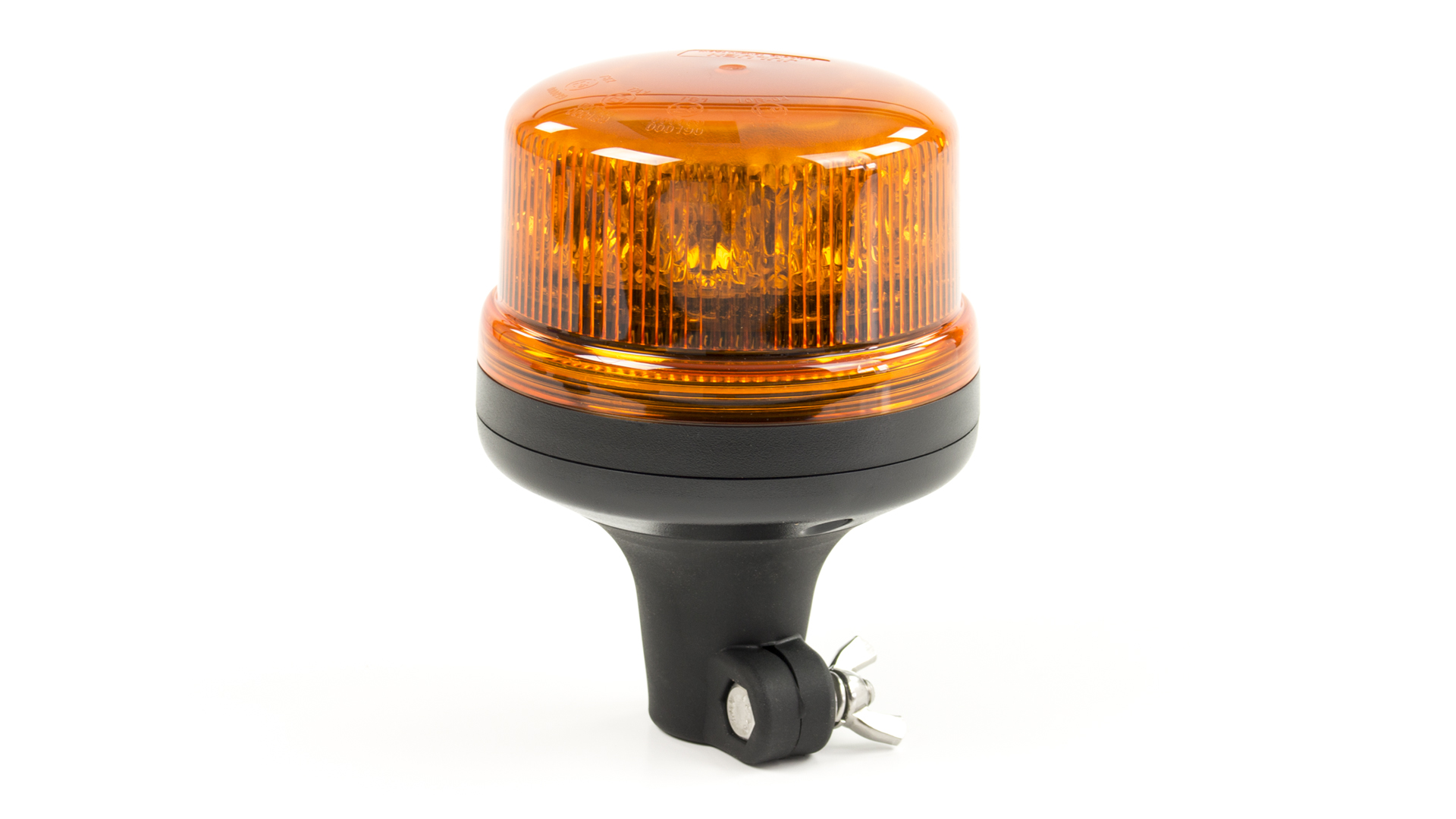

Product code 05200313 Product Name B16 Revo - AA (DIN Pole Mount) Categories Warning Lights, Beacons, B16 Revo, B16 Series Product Type Products Dimensions Length/width 118mm (4.65") Dimensions Height 158mm (6.22") Dimensions Depth 118mm (4.65") Colour Type Single Colour Fuse Rating 3A Maximum Current 1.28A@12VDC / 0.64A@24VDC Operating Temperature -30°C~+65°C Maximum Power 15.3W LED Colour Amber LEDs Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1) Input Voltage 12VDC~24VDC Mounting Option DIN Pole Mount LED Elements 10x LEDs IP Rating IP6K6, IP6K6K Flash Patterns 1 Flash Pattern Net Weight 0.75kg Gross Weight 0.75kg Warranty 5 Year Warranty -
