Specifications
Dual Colour design for various application and field.
Each warning colour may select its destine flash pattern.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design.
Reverse polarity protection.Product Specifications

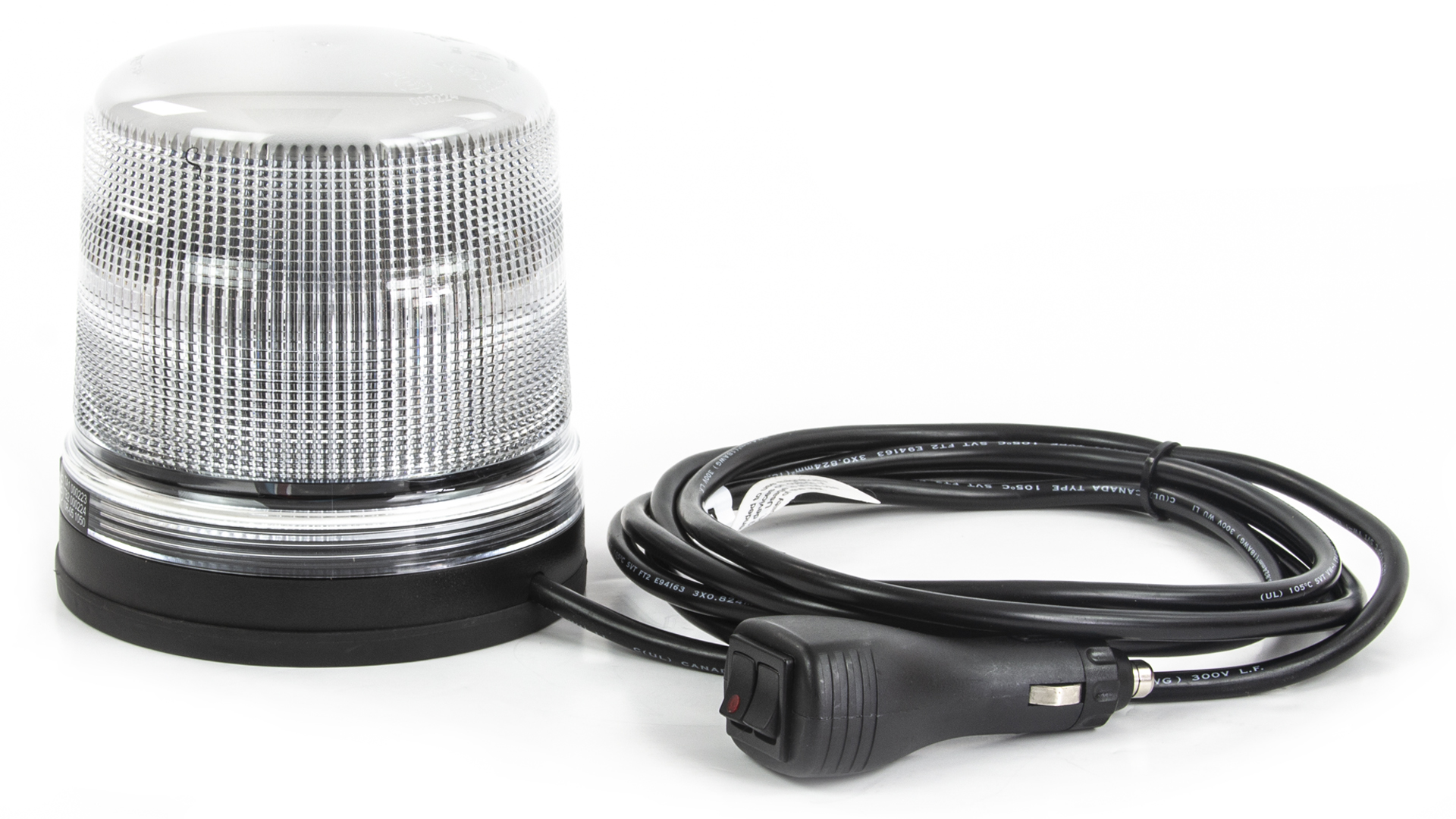

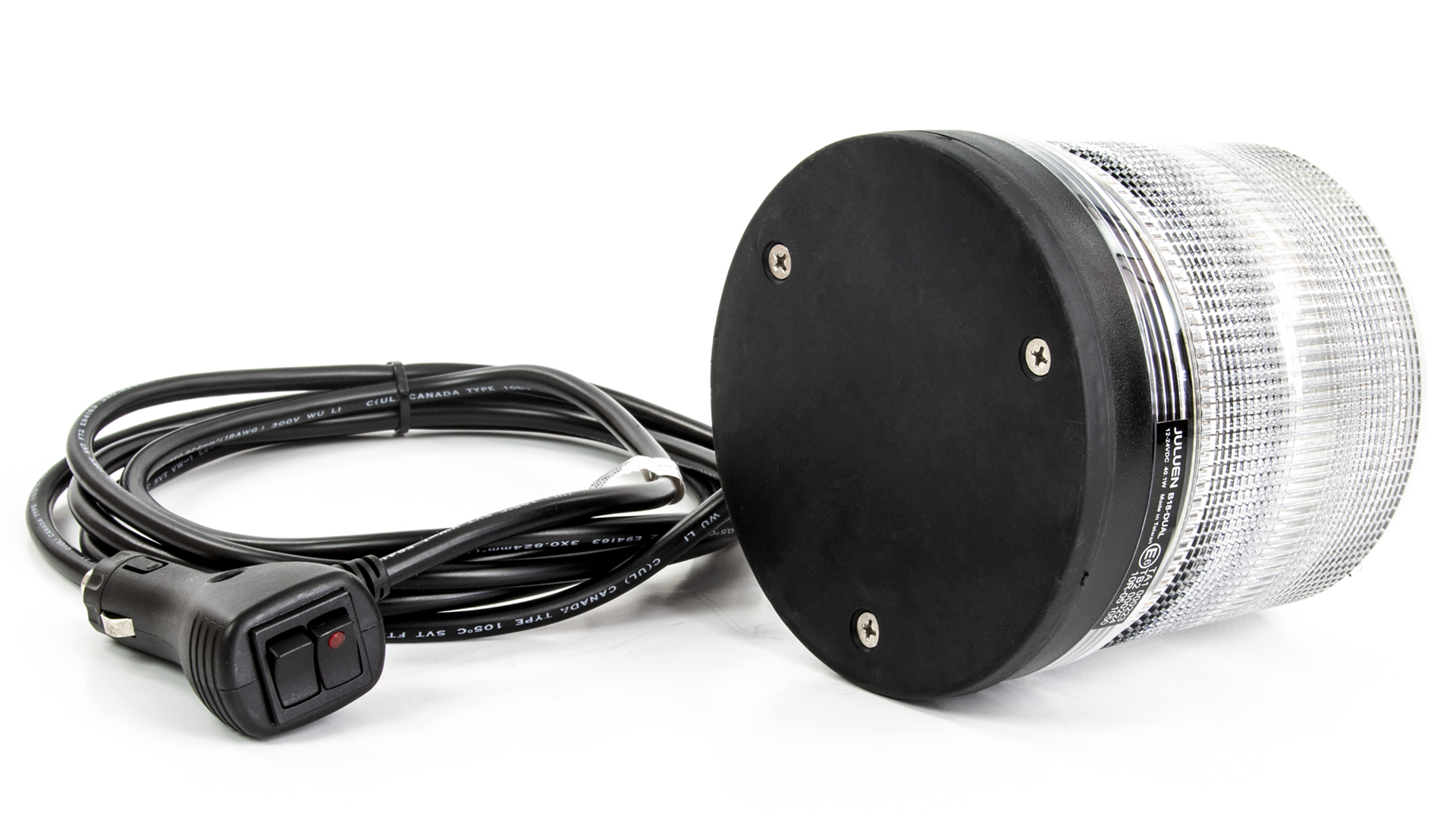

Product code 05180400 Product Name B18 DC - AB (External Power Magnetic Mount) Categories Warning Lights, Beacons, B18 Beacons Product Type Products Dimensions Height 115.8mm (4.56") Colour Type Dual Colour Maximum Current 3.34A@12VDC / 1.67A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 40.1W Connection Type Cigar Plug (Latching & Momentary Switch) Diameter ⌀118mm (4.65") LED Colour Amber LEDs, Blue LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA1), ECE-R65 (TB2), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Power Magnetic Mount (External) Cable Type Cable (Straight) LED Elements 30x LEDs IP Rating IPX5 Flash Patterns 16 Flash Patterns Wire Length 3000mm Gross Weight 0.7kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 3 Year Warranty -
Spare Parts
-
-
Mounting
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Circular 2 Hole Mounting Flange
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Horizontal Mounting Plate
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Clamping Flange
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Vertical Mounting Plate
-
-
-
-
-
