Specifications
Product Specifications

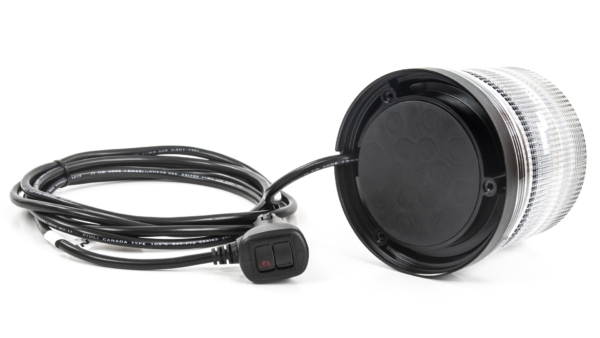

Product code 05180417 Product Name B18 Beacon - Blue/Amber (Magnetic/Power/Internal - Straight) Categories Lighting, Beacons, B18 Beacons Product Type Products Dimensions Height 116mm Colour Type Dual Colour Maximum Current 3.34A@12VDC / 1.67A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 40.1W Connection Cigar Plug (Latching & Momentary Switch) Diameter ⌀118mm LED Colour Blue/Amber Fuse Rating 5A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TA1, ECE R65 - TB2, SAE J845 Class 1 Nominal Voltage 12-24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Quantity 30LED IP Rating IPX5 Flash Patterns 16 Flash Patterns Warranty 3 Year Warranty -
