Specifications
Unique optical design for efficient and powerful output.

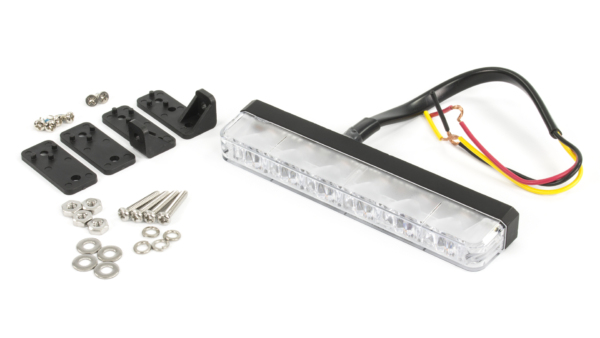

Universal angle adjustable bracket allows diverse mounting options.
Solid aluminium housing for best heat dissipation and maximum durability.
Weatherproof and vibration resistant design for internal or external use.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications
Product code 02180014 Product Name ES6 Warning Lighthead (Horizontal) - Amber Categories Lighting, ES6, Edge Saber, Directionals, Modules Product Type Products Dimensions Length 129mm Dimensions Height 16mm Dimensions Width 27mm Colour Type Single Colour Maximum Current 1.14A@12VDC / 0.57A@24VDC Maximum Power 13.7W LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA1, SAE J595 Class 1, California Title 13 Optic Type TIR Optics Nominal Voltage 12-24VDC Mounting Option L-Bracket, Universal Bracket Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IPX8 Flash Patterns 23 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Mounting
-
