Specifications
Unique optical design for efficient and powerful output.
Universal angle adjustable bracket allows diverse mounting options.
Solid aluminium housing for best heat dissipation and maximum durability.
Weatherproof and vibration resistant design for internal or external use.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

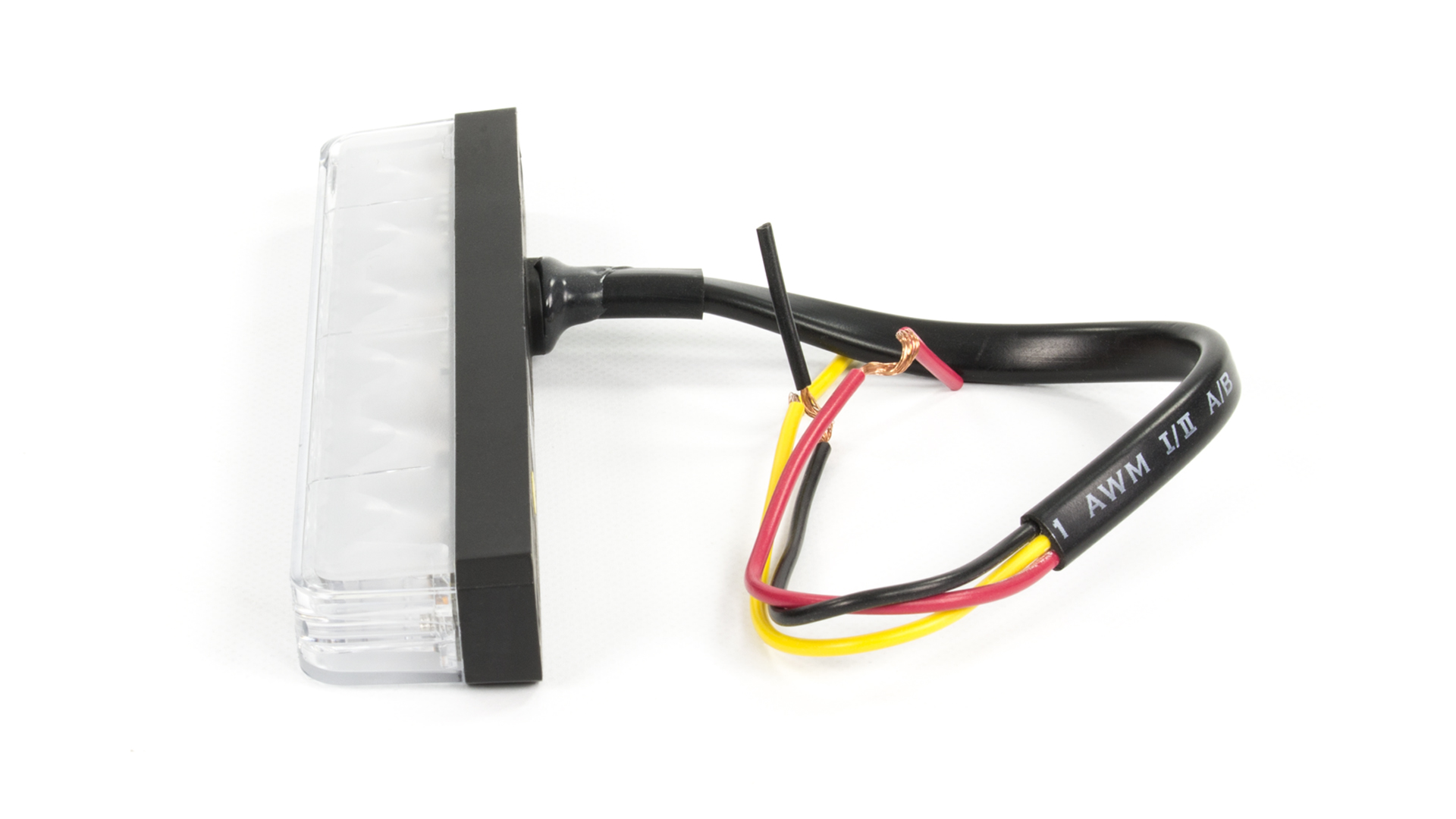

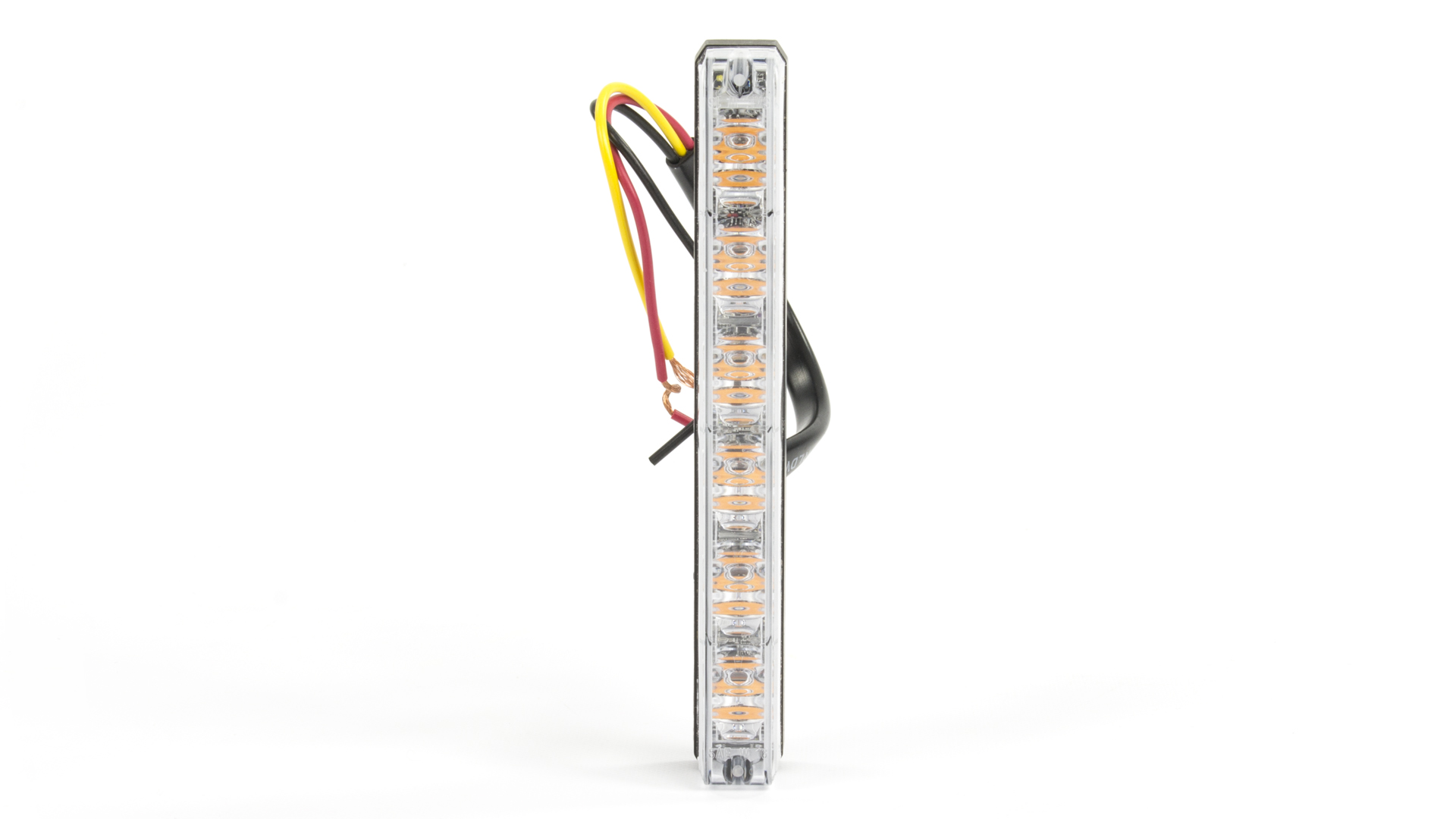

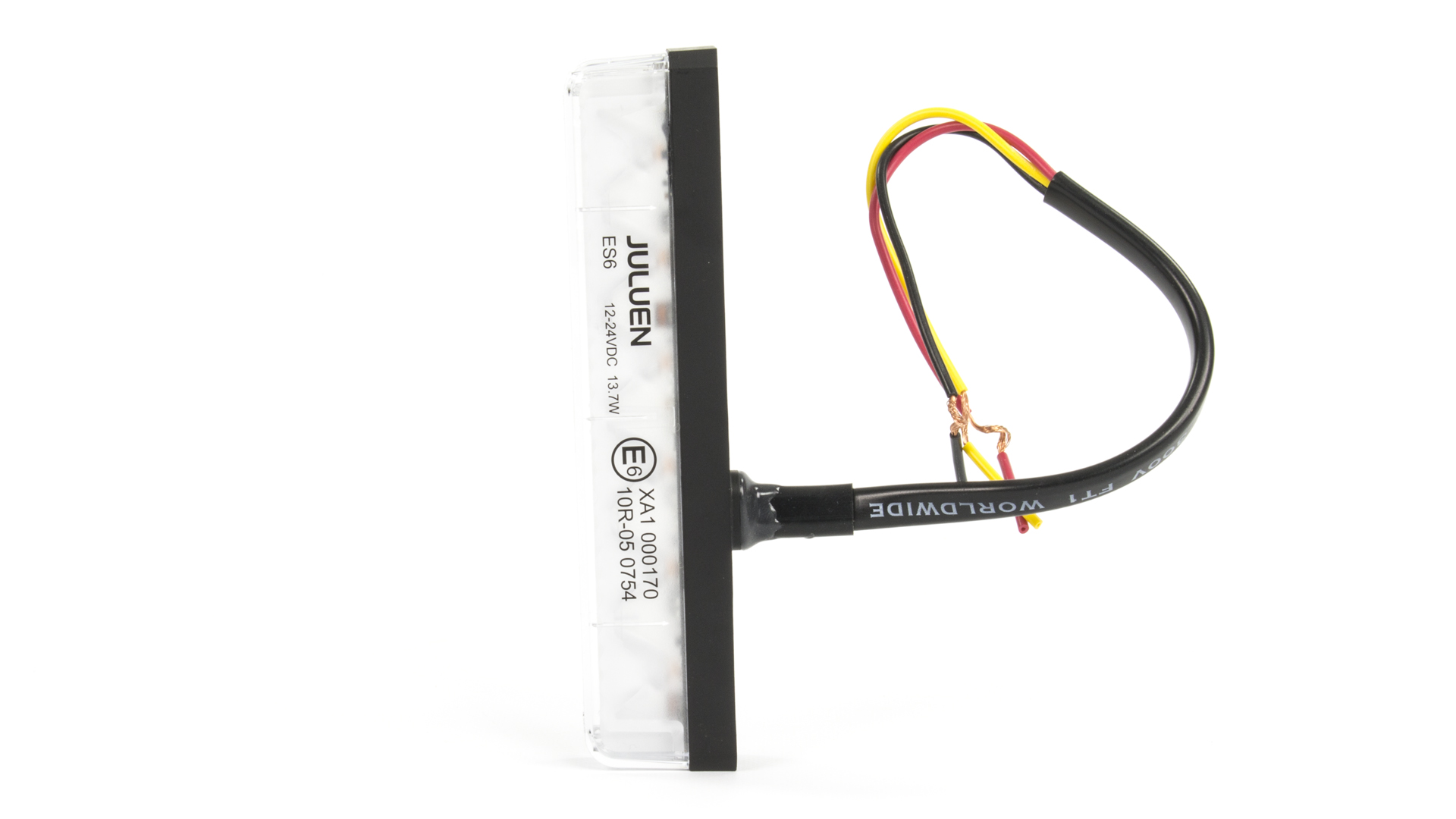

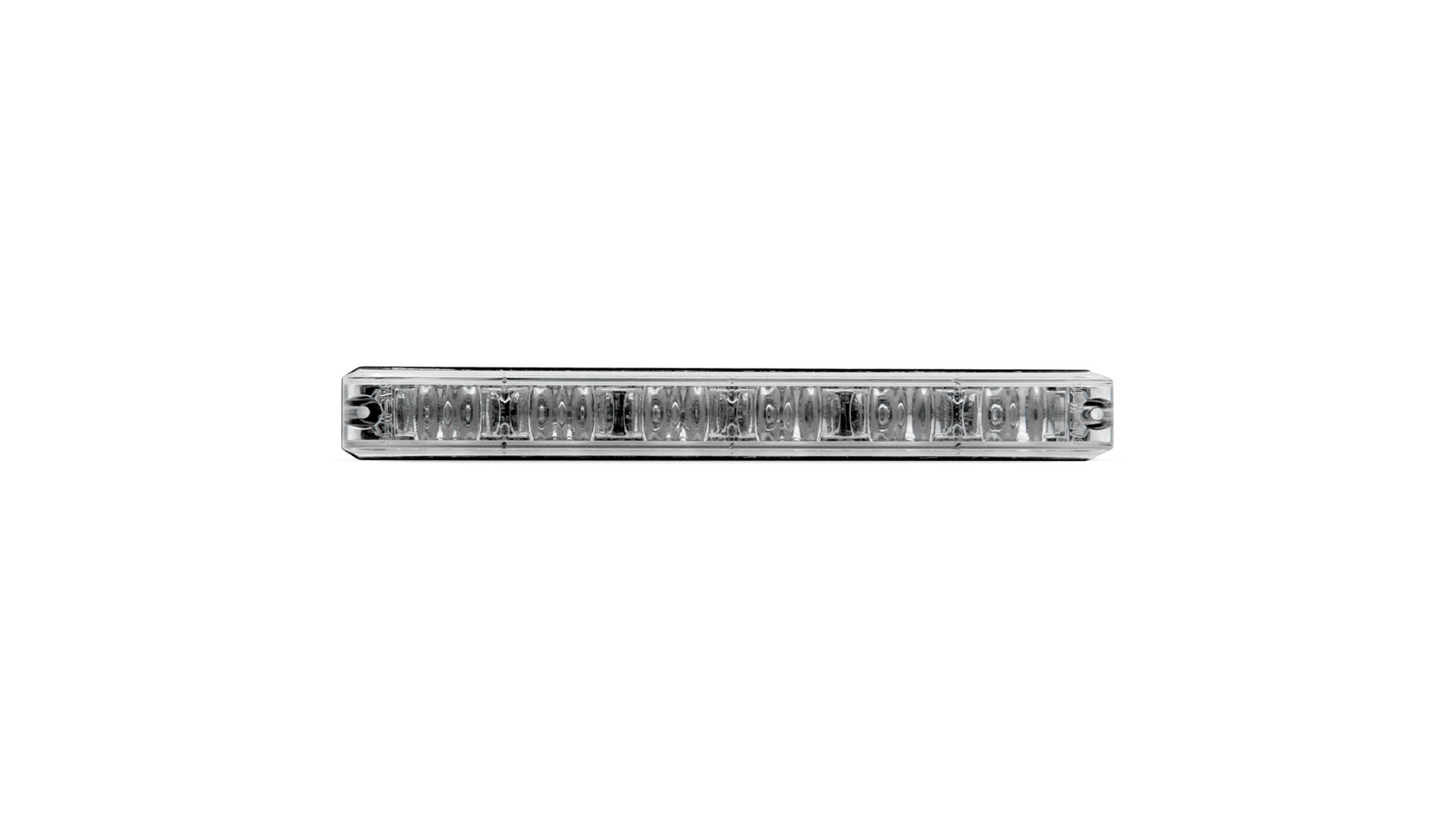

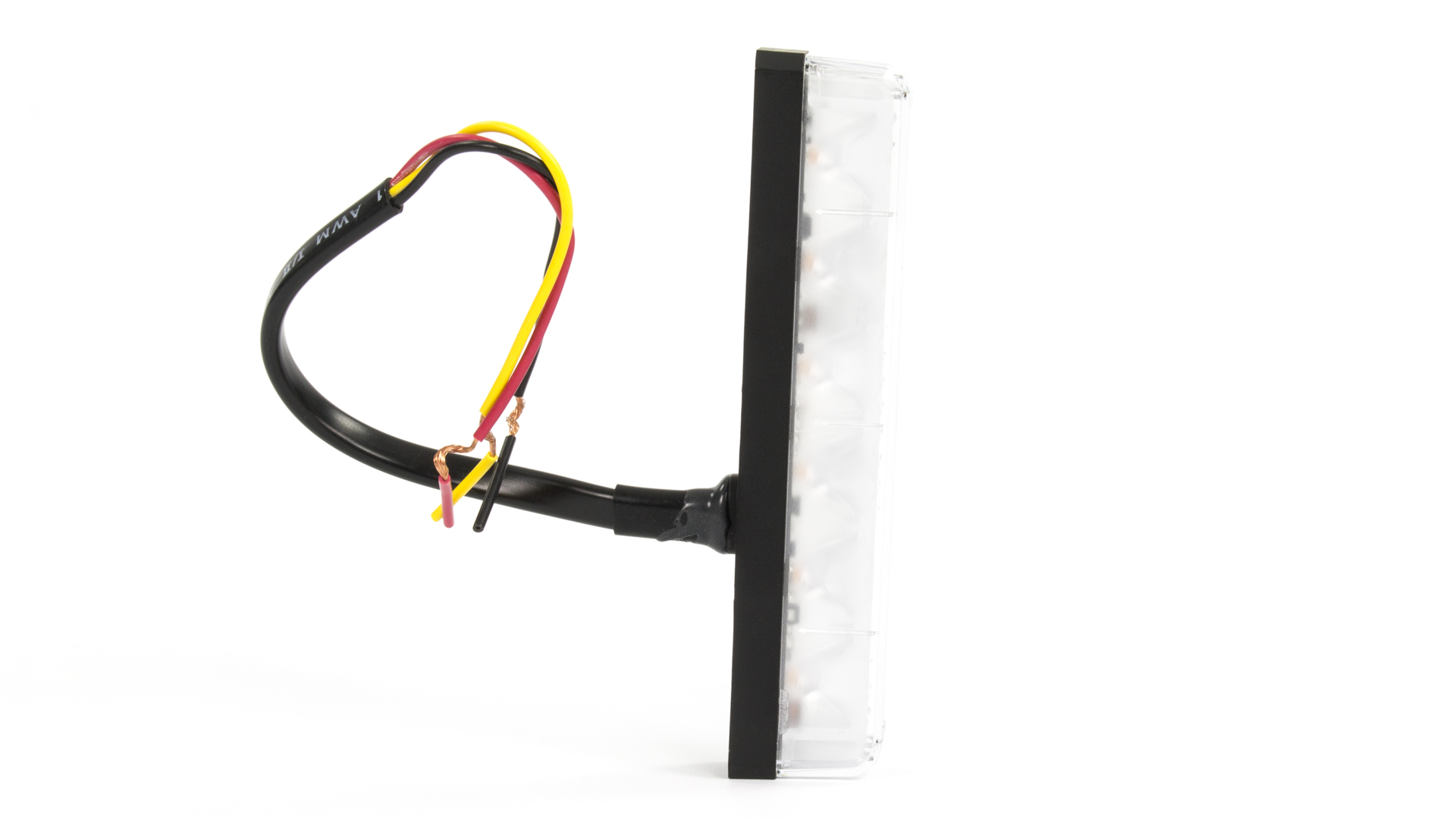

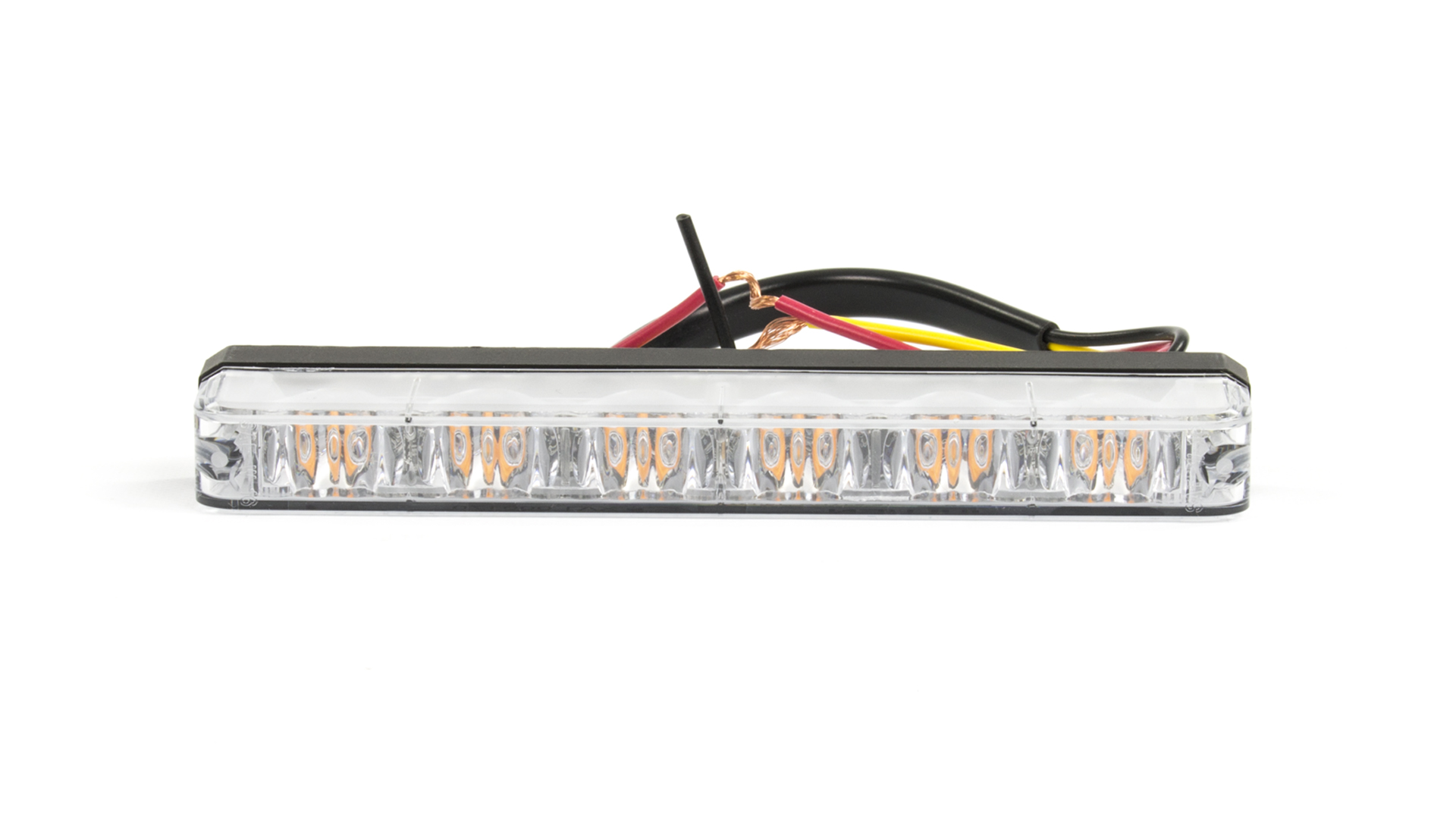

Product code 02180045 Product Name ES6 Warning Lighthead (Horizontal) - White Categories ES6, Warning Lamps, Edge Saber, Directionals, Modules Product Type Products Dimensions Length 129.2mm (5.09") Dimensions Height 15.79mm (0.62") Dimensions Width 27.2mm (1.07") Colour Type Single Colour Maximum Current 1.14A@12VDC / 0.57A@24VDC Maximum Power 13.7W LED Colour White LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10, SAE J595 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option L-Bracket, Universal Bracket Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IPX8 Flash Patterns 23 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Gross Weight 0.15kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

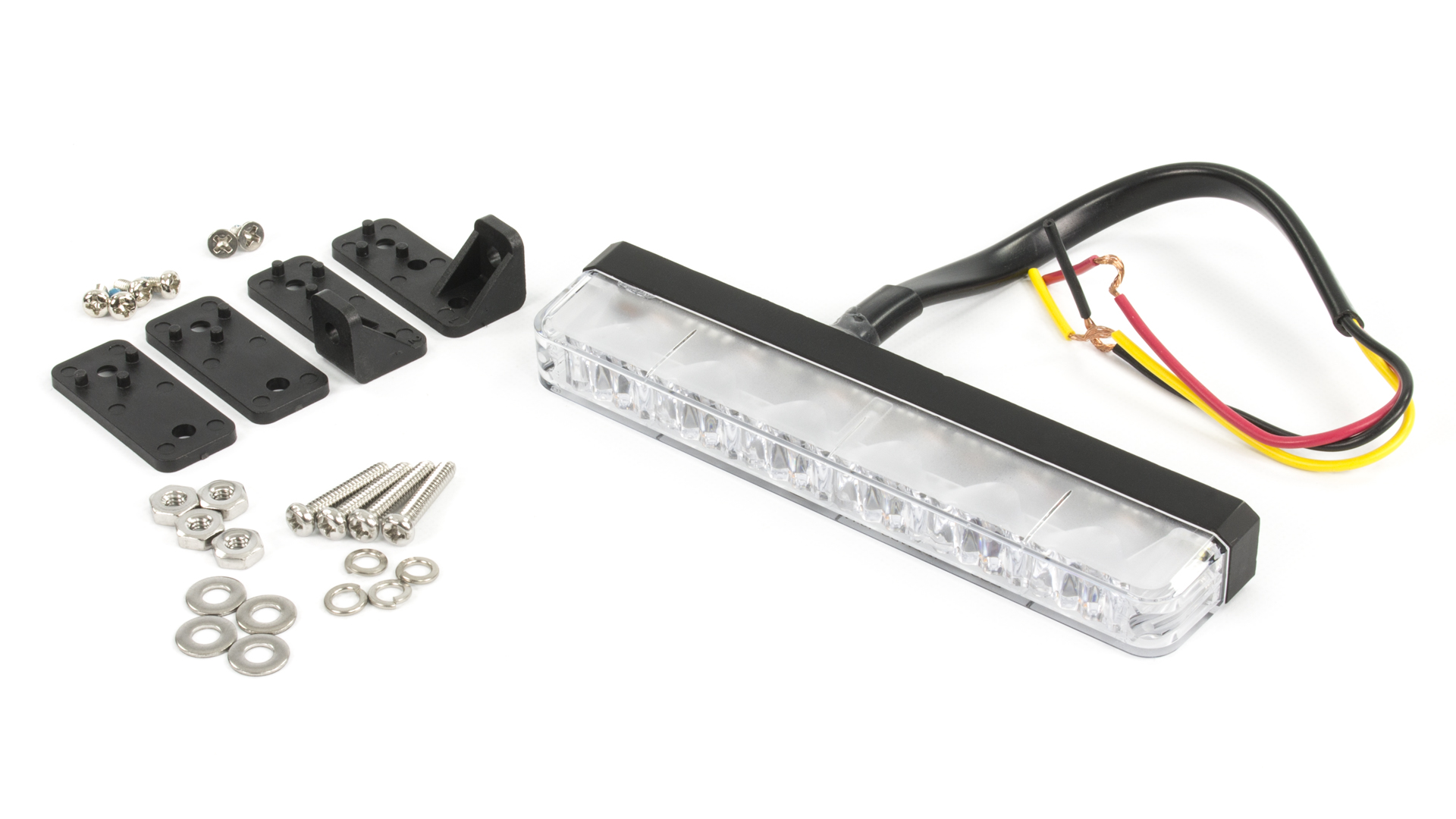

Mounting
-
- Shroud Kits
- 55°
- Acrylonitrile Butadiene Styrene (ABS)
- Self Adhesive Mount
- Black
-
- Shroud Kits
- 10°
- Acrylonitrile Butadiene Styrene (ABS)
- Self Adhesive Mount
- Black
-
- Downloads
