Specifications
Product Specifications

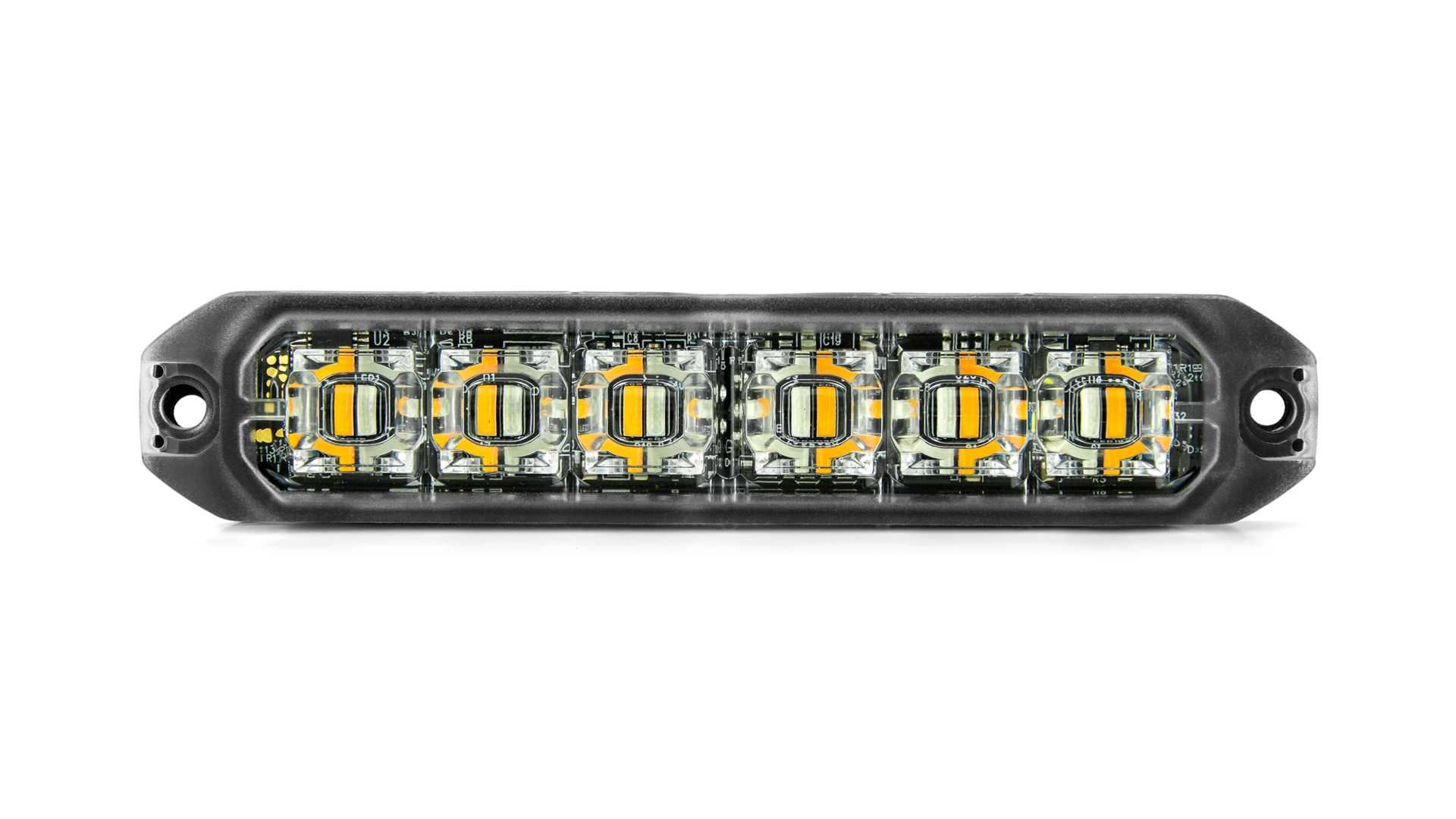

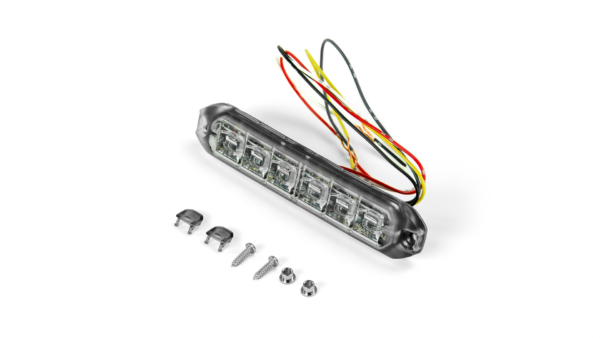

Product code 02250052 Product Name FX6 Warning Lighthead - Blue/Amber Categories Lighting, FX6, Directionals, Modules, Flexion Product Type Products Dimensions Length 127mm Dimensions Height 25mm Dimensions Width 11mm Colour Type Dual Colour Maximum Current 0.64A@12VDC / 0.16A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -40°C to +65°C Maximum Power 7.68W Synchronisation 20 Unit Sync LED Colour Blue/Amber Fuse Rating 1A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA1, ECE R65 - XB1, CISPR25, SAE J595 Class 1, SAE J845 Class 1, California Title 13 Nominal Voltage 12-24VDC Mounting Option Self Adhesive Mount, Surface Mount Cable Type Cable (Pigtail) LED Quantity 12LED IP Rating IP67 Flash Patterns 21 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Conductor Cross-Section 0.34mm² (22AWG) Warranty 5 Year Warranty -
Spare Parts
-
Learn More- ECE R10, ECE R65 - XB1, ECE R65 - XR1, CISPR25, SAE J595 Class 1, SAE J845 Class 1, California Title 13
- 12LED
- Clear Lens
- 12-24VDC
- Self Adhesive Mount, Surface Mount
New Product
-
-

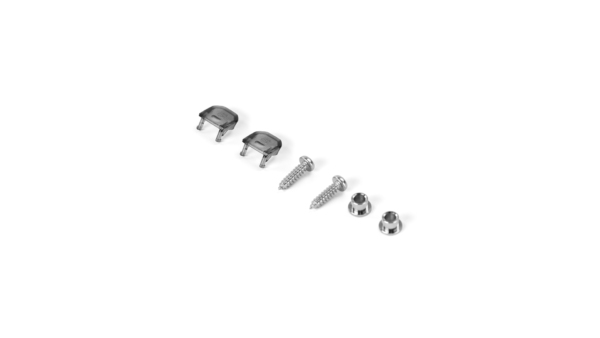

Mounting
-
New Product
-
New Product
-
- Downloads
