Specifications
Product Specifications

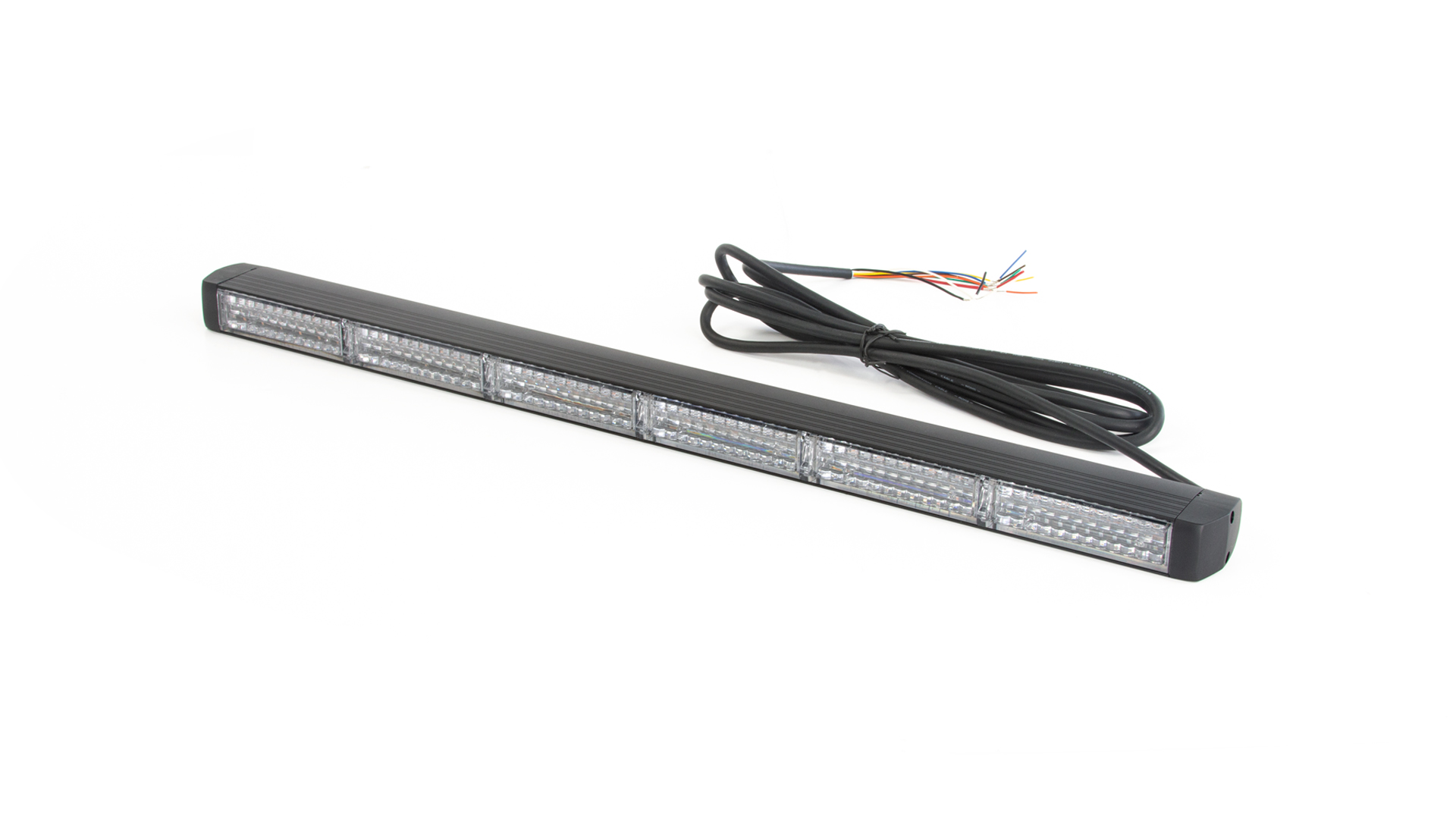

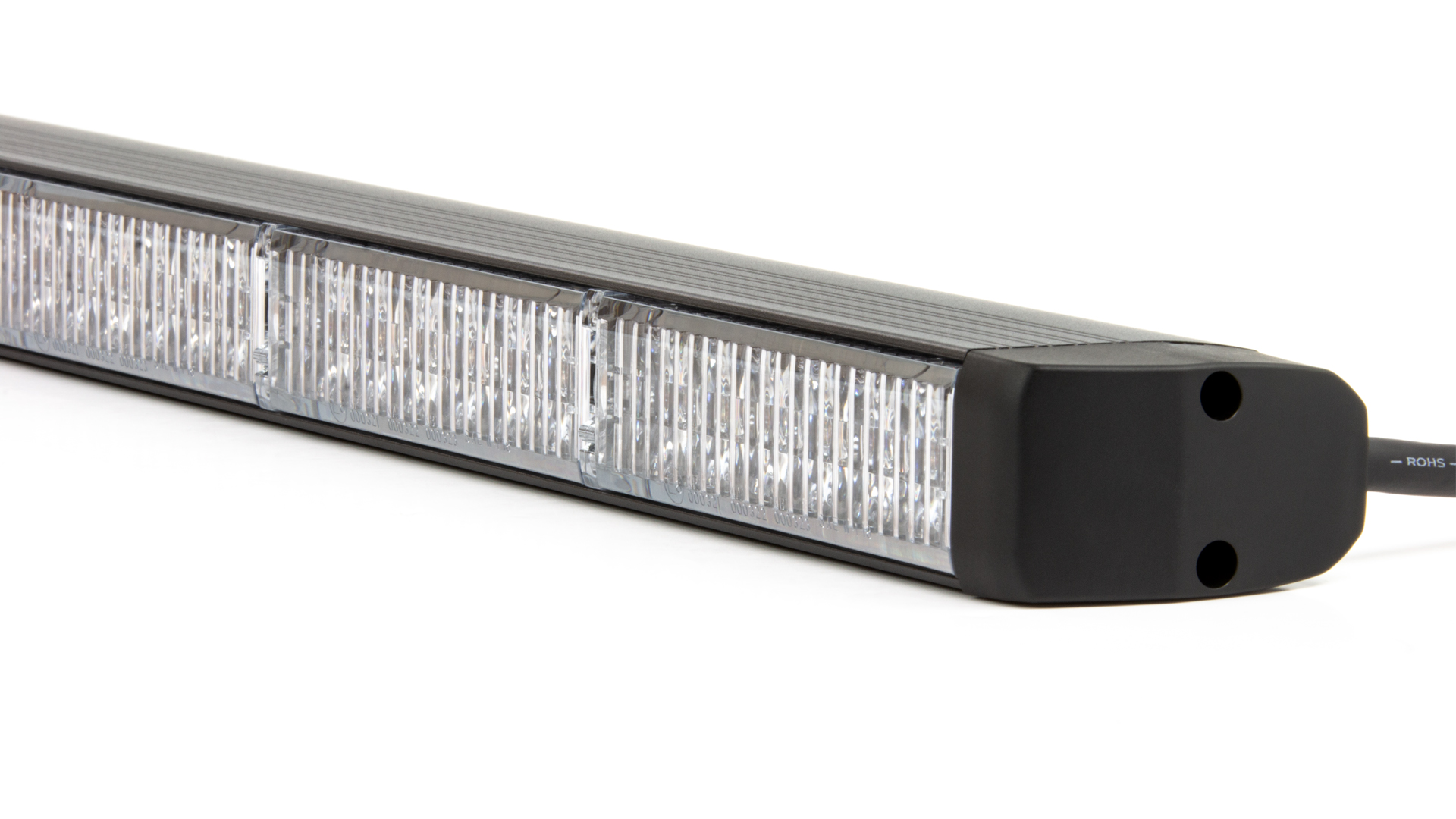

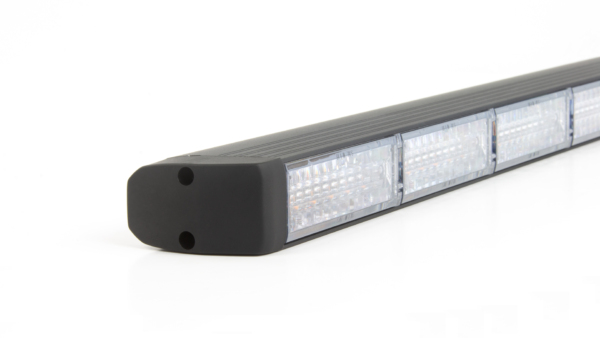

Product code 01100259 Product Name Horizon Traffic Director 0651mm - W6 Categories Lighting, Horizon, Horizon (Single Colour), Traffic Advisors Product Type Products Dimensions Height 32mm Dimensions Width 53mm Colour Type Single Colour Maximum Current 5.16A@12VDC / 2.58A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 61.8W Traffic Advisor Length 0651mm LED Colour White LEDs Fuse Rating 6A@12VDC / 3A@24VDC Lens Colour Clear Lens Traffic Director Functions Traffic Arrow, Warning Mode, End Flashers Compliance ECE R10, CISPR25, SAE J595 Class 1, California Title 13 Optic Type Horizon Optics Nominal Voltage 12-24VDC Mounting Option 2-Bolt Mount Cable Type Single Harness (6 Function/2 Power) LED Quantity 36x LEDs Lighthead Quantity 6x Lightheads IP Rating IPX7 Flash Patterns 50 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Wire Length 3000mm Mounting Orientation Horizontal Warranty 5 Year Warranty -
