Specifications
Individual lightheads meet ECE R65 certification.
New Q-lock mechanism provides a tool-free, quick releasing of lightheads for easy replacement.
New Horizon 6LED optics, super low profile with seamless output.
Dual warning memory for instant switch between flash patterns.
Non-volatile memory recalls last flash pattern used at power up.
End flasher mode for concurrent traffic advising and warning.
Solid aluminium extrusion for heat dissipation.
Steady burn mode as full flood or scene light.
Reverse polarity protection.Product Specifications

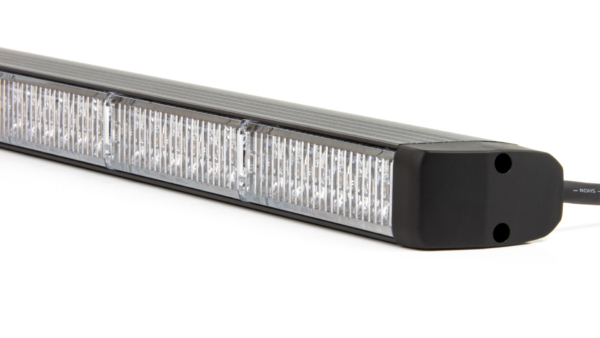

Product code 01100235 Product Name Horizon Traffic Director 0651mm - A6 Categories Lighting, Horizon (Single Colour), Horizon, Traffic Advisors Product Type Products Dimensions Height 32mm Dimensions Width 53mm Colour Type Single Colour Maximum Current 5.16A@12VDC / 2.58A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 61.8W Traffic Advisor Length 0651mm LED Colour Amber LEDs Fuse Rating 6A@12VDC / 3A@24VDC Lens Colour Clear Lens Traffic Director Functions Warning Mode, End Flashers, Traffic Arrow Compliance ECE R10, ECE R65 - XA1, CISPR25, SAE J595 Class 1, California Title 13 Optic Type Horizon Optics Nominal Voltage 12-24VDC Mounting Option 2-Bolt Mount Cable Type Single Harness (6 Function/2 Power) LED Quantity 36x LEDs Lighthead Quantity 6x Lightheads IP Rating IPX7 Flash Patterns 50 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Wire Length 3000mm Mounting Orientation Horizontal Warranty 5 Year Warranty -
