EAN: 06360368

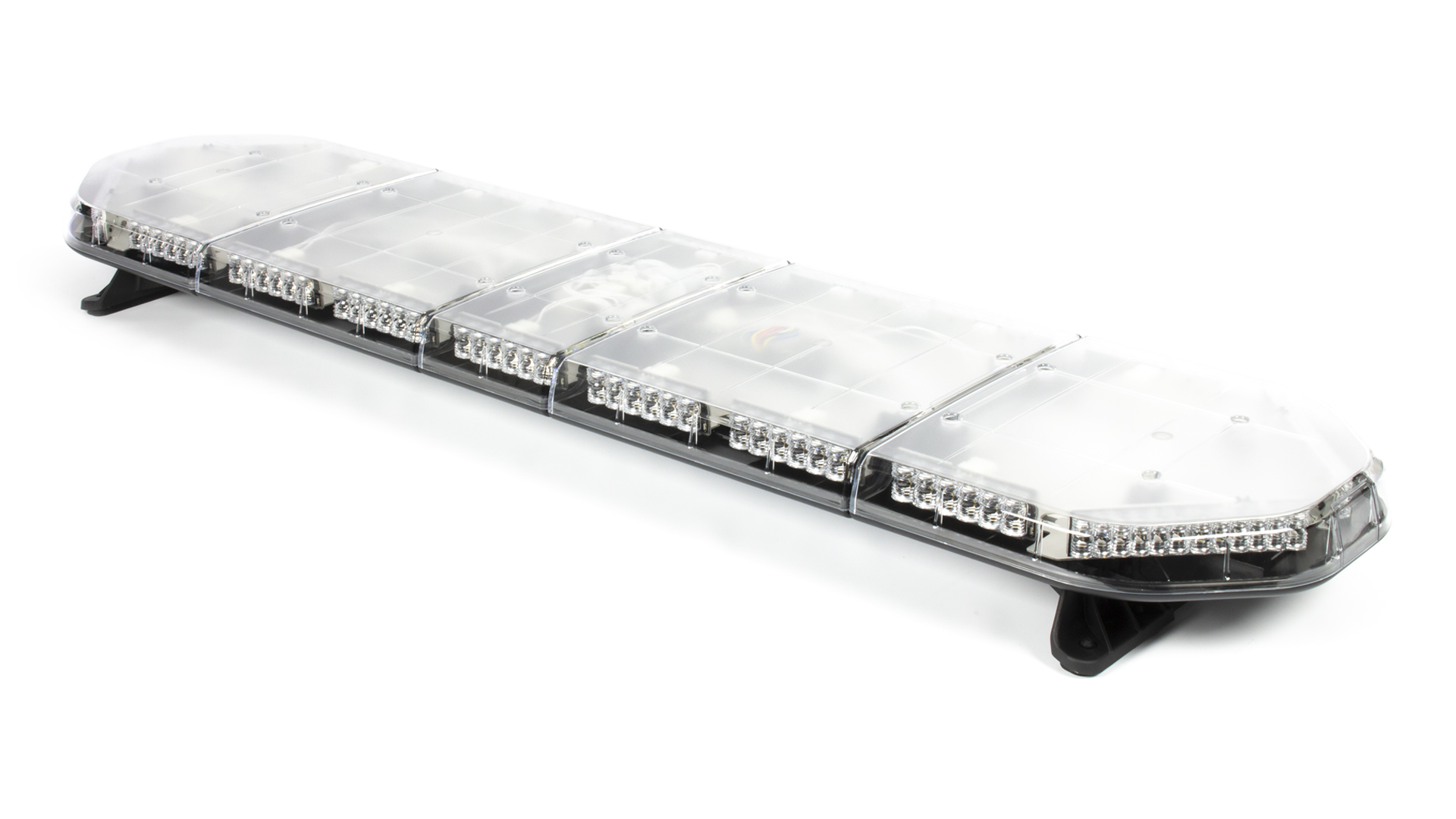

Legion Dual Colour Lightbar, 1387mm (54.6″), 48x BLUE/WHITE LEDs, CLEAR LENS, ECE R10, ECE R65 (TB2), IPX4K, D-Fuser Optics, 12 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
Integrated take-down light and alley light options.
Full dual colour lightheads for instant change between colours.
New improved d-fuser optic with SAE Class 1 and ECE R65 certified performance.
Solid aluminium base plate for best rigidity and heat dissipation.
Long life LEDs technology rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications
Product code 06360368 Product Name Legion DC 1387mm (54.6") - BW (24VDC) Categories Warning Lamps, Legion Dual Colour Standard, Lightbars, Legion Dual Colour, Legion Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Traffic Director, Stop / Tail / Turn, Steady On Dimensions Length 1387mm (54 Default Functions Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Take-Down Lights (2 heads, Right-Side Alley Light, Hi/Low Power (50%, Left-Side Alley Light, Steady On, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Width 331mm (13") Colour Type Dual Colour Maximum Current 10A@12.8VDC Operating Temperature -30°C~+65°C Lightbar Length 1387mm (54.6") LED Colour Blue LEDs, White LEDs Software Version (Default) CA Software (16 Wire Modes, 4 Power Wires, 2 Cable Harness Fuse Rating 20A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB2), SAE J845 Class 1, CA13 Input Voltage 24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power/2 Speaker) LED Quantity 48x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 15.4kg Gross Weight 16.4kg Dummy Bracket Qty 14x Dummy Plates Warranty 5 Year Warranty -
Spare Parts
-
-
- Lightheads
- Single Colour
- 3x LEDs
- 2 Pin Connector
- White LEDs
-
- Lightheads
- Single Colour
- 6x LEDs
- 3 Pin Connector
- White LEDs
-
- Lightheads
- Dual Colour
- 12x LEDs
- 4 Pin Connector
- Blue LEDs, White LEDs
-
- Lightheads
- Single Colour
- 9x LEDs
- 3 Pin Connector
- White LEDs
-
- Lightheads
- ECE-R7
- Split Colour
- 12x LEDs
- Amber LEDs, Red LEDs
-
-
-
-
-
-
-
-
- Lightheads
- Dual Colour
- 12x LEDs
- 4 Pin Connector
- Blue LEDs, White LEDs
-
-
-
Accessories
-
- Connectors
- Polycarbonate (PC)
- 9 Pin Connector
- Single Harness (8 Function/2 Power)
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
- Black
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
- Powder-Coated Aluminium
- Standard Bolt Mount Brackets
- Black
-
