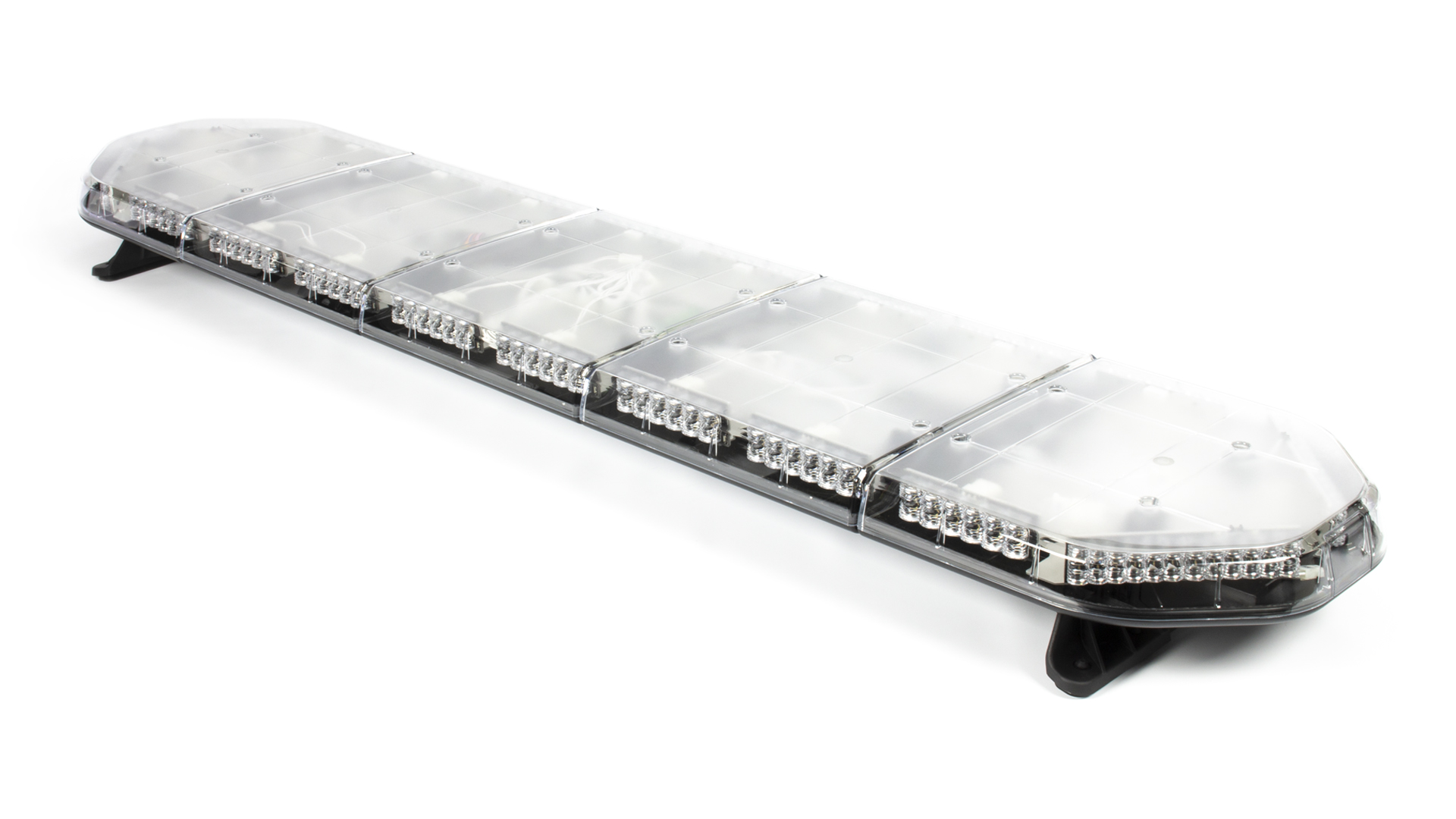

Legion Dual Colour Lightbar, 1537mm (60.5″), 48x BLUE/WHITE LEDs, CLEAR LENS, ECE R10, ECE R65 (TB2), IPX4K, D-Fuser Optics, 12 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
Integrated take-down light and alley light options.
Full dual colour lightheads for instant change between colours.
New improved d-fuser optic with SAE Class 1 and ECE R65 certified performance.
Solid aluminium base plate for best rigidity and heat dissipation.
Long life LEDs technology rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications
Product code 06360375 Product Name Legion DC 1537mm (60.5") - BW (24VDC) Categories Warning Lamps, Legion Dual Colour Standard, Lightbars, Legion Dual Colour, Legion Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Traffic Director, Stop / Tail / Turn, Illuminated Centre, Steady On Dimensions Length 1537mm (60") Default Functions Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Take-Down Lights (2 heads, Traffic Director - Rear Left Arrow., Hi/Low Power (50%, Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Width 331mm (13") Colour Type Dual Colour Maximum Current 11.2A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 1537mm (60.5") LED Colour Blue LEDs, White LEDs Software Version (Default) CA Software (16 Wire Modes, 4 Power Wires, 2 Cable Harness Fuse Rating 20A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB2), SAE J845 Class 1, CA13 Optic Type D-Fuser Optics Input Voltage 24VDC Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power/2 Speaker) LED Quantity 48x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 15.4kg Gross Weight 16.4kg Dummy Bracket Qty 16x Dummy Plates Warranty 5 Year Warranty -
