Specifications
Ultra low profile 6.6mm lighthead for discreet mounting.
Weatherproof and vibration resistant design for external or internal use.
Solid aluminium backing for efficient heat dissipation and maximum durability.
Double stack design with built-in selectable flash patterns in simultaneous or split flash.
Multi-units synchronization in simultaneous or alternating flash.
Versatile installation in horizontal or vertical mount.
Self-adhesive backing for quick & easy installation.
Self-contained; no external flasher required.
Reverse polarity protection.Product Specifications

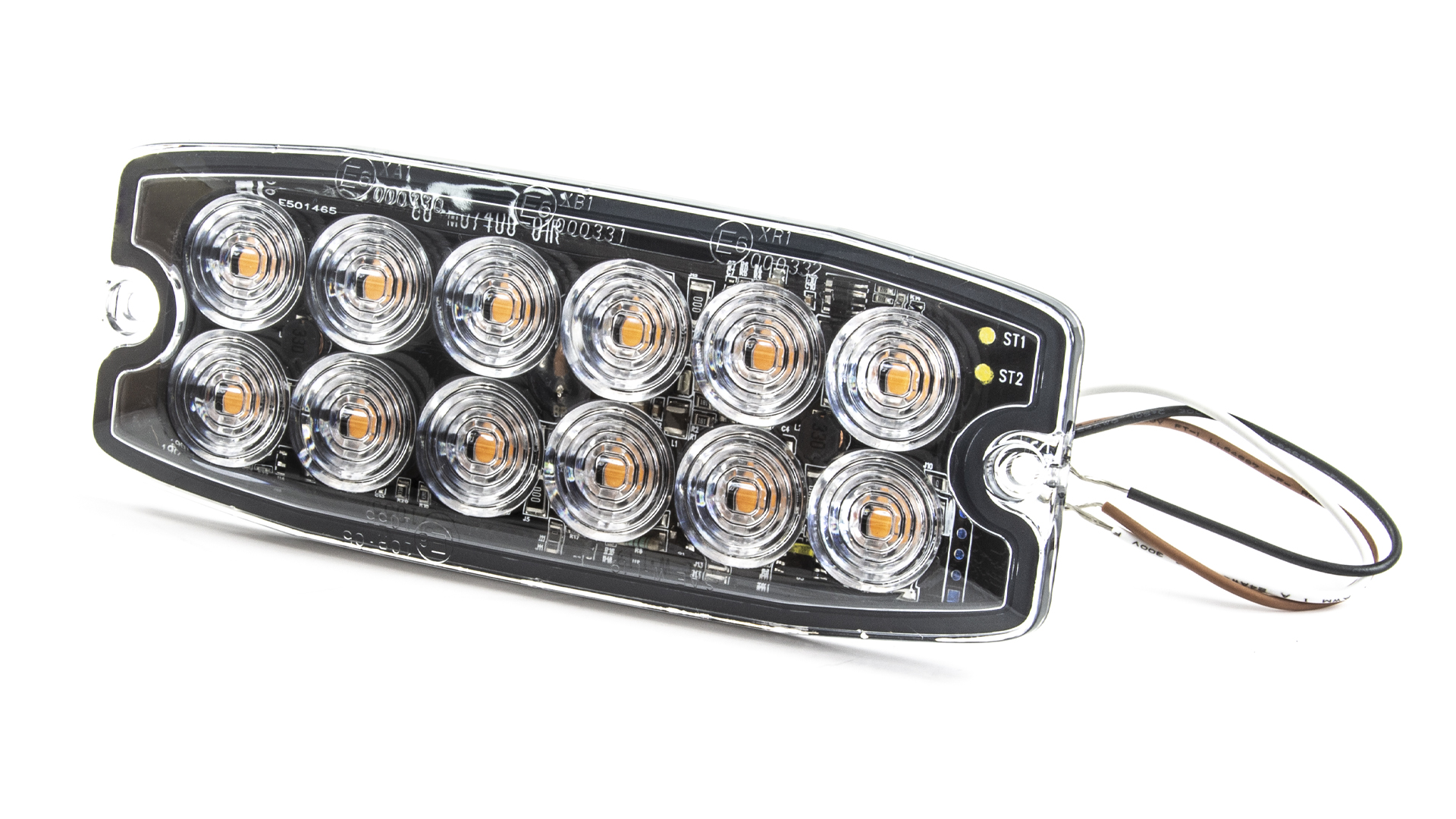

Product code 02130224 Product Name LP26 - Amber (12~24VDC) Categories Warning Lights, Directionals, Modules, Light Pad, LP26 Product Type Products Dimensions Length/width 130.5mm (5.14") Dimensions Height 50.6mm (1.99") Dimensions Depth 6.6mm (0.29") Colour Type Single Colour Maximum Current 1.43A@12VDC / 0 715A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 17.2W Synchronisation 20 Unit Synchronisation LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1), SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type Fresnel Optics Mounting Option Self Adhesive Mount, Surface Mount Cable Type Cable (Pigtail) LED Elements 12x LEDs IP Rating IPX7 Flash Patterns 30 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.10kg Conductor Cross-Section 0.25mm² (24AWG) Warranty 2 Year Warranty - Downloads
