Specifications
Product Specifications

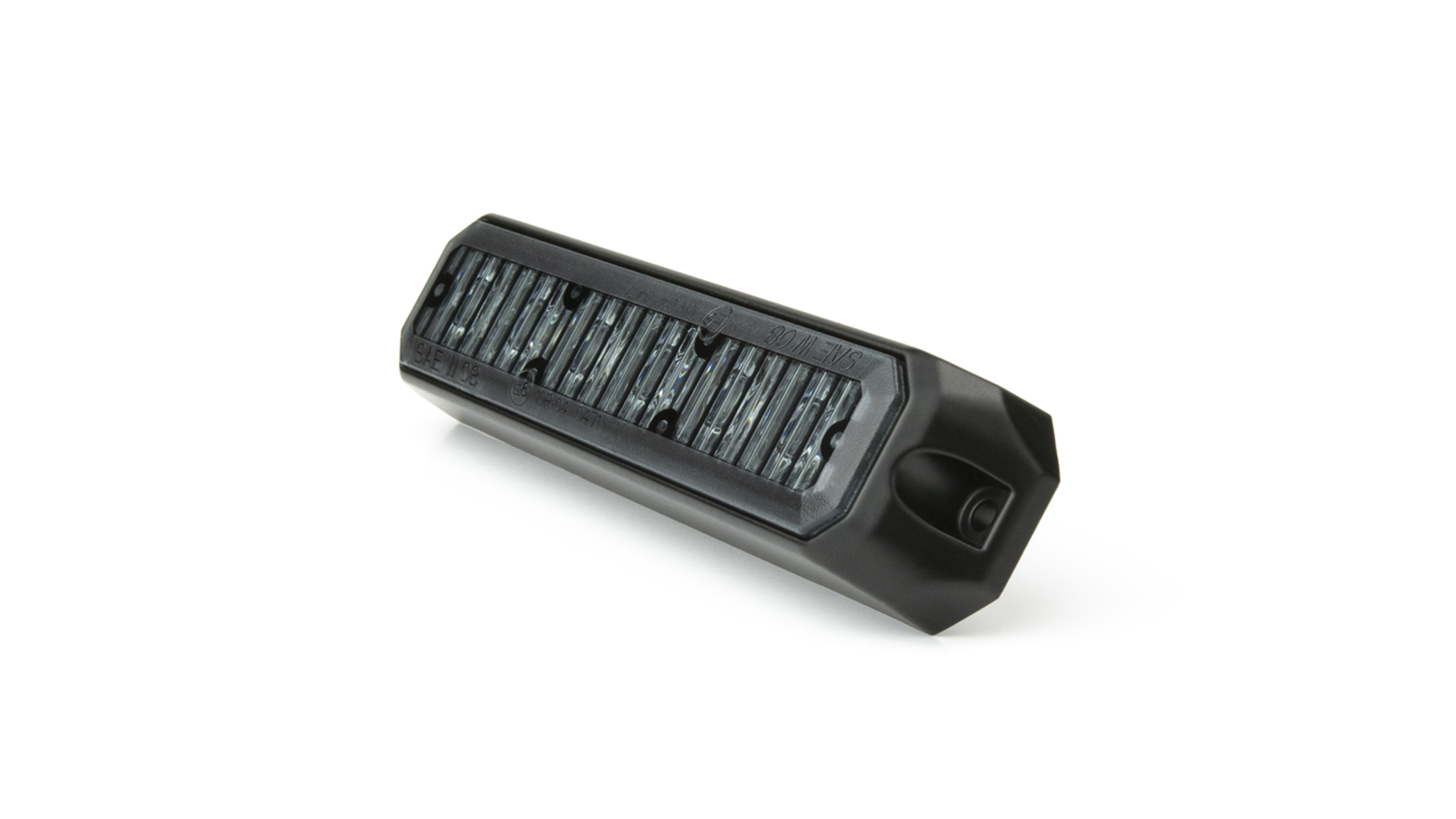

Product code 02040905 Product Name MS6 Warning Lighthead (Surface/Horizontal - Blue (XB1) - Tinted Categories Directionals, Mini Stealth, MS6, Modules Product Type Products Dimensions Length 127.5mm (5.0") Dimensions Height 27.8mm (1.1") Dimensions Width 17.2mm (0.68") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.15A@12VDC / 0.58A@24VDC Operating Temperature -30°C~+65°C Maximum Power 13.8W Synchronisation 15 Unit Sync LED Colour Blue LEDs Fuse Rating 2A Lens Colour Tinted Lens Compliance ECE-R10, ECE-R65 (XB1) Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IP67 Flash Patterns 5 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.01kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Mounting
-
-
- Powder-Coated Aluminium
- Registration Plate Bracket
- Black
-
-
- Powder-Coated Aluminium
- Dual L-Bracket (Side by Side)
- Black
-
-
-
-
- Powder-Coated Aluminium
- Dual L-Bracket (Top/Bottom)
- Black
-
- Powder-Coated Aluminium
- Registration Plate Bracket
- Black
-
