Specifications
Solid aluminium housing for efficient heat dissipation and maximum durability.
Weatherproof and vibration resistant design for internal or external use.
Non-volatile memory recalls last flash pattern used at power up.
Multi-units synchronization in simultaneous or alternating flash.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

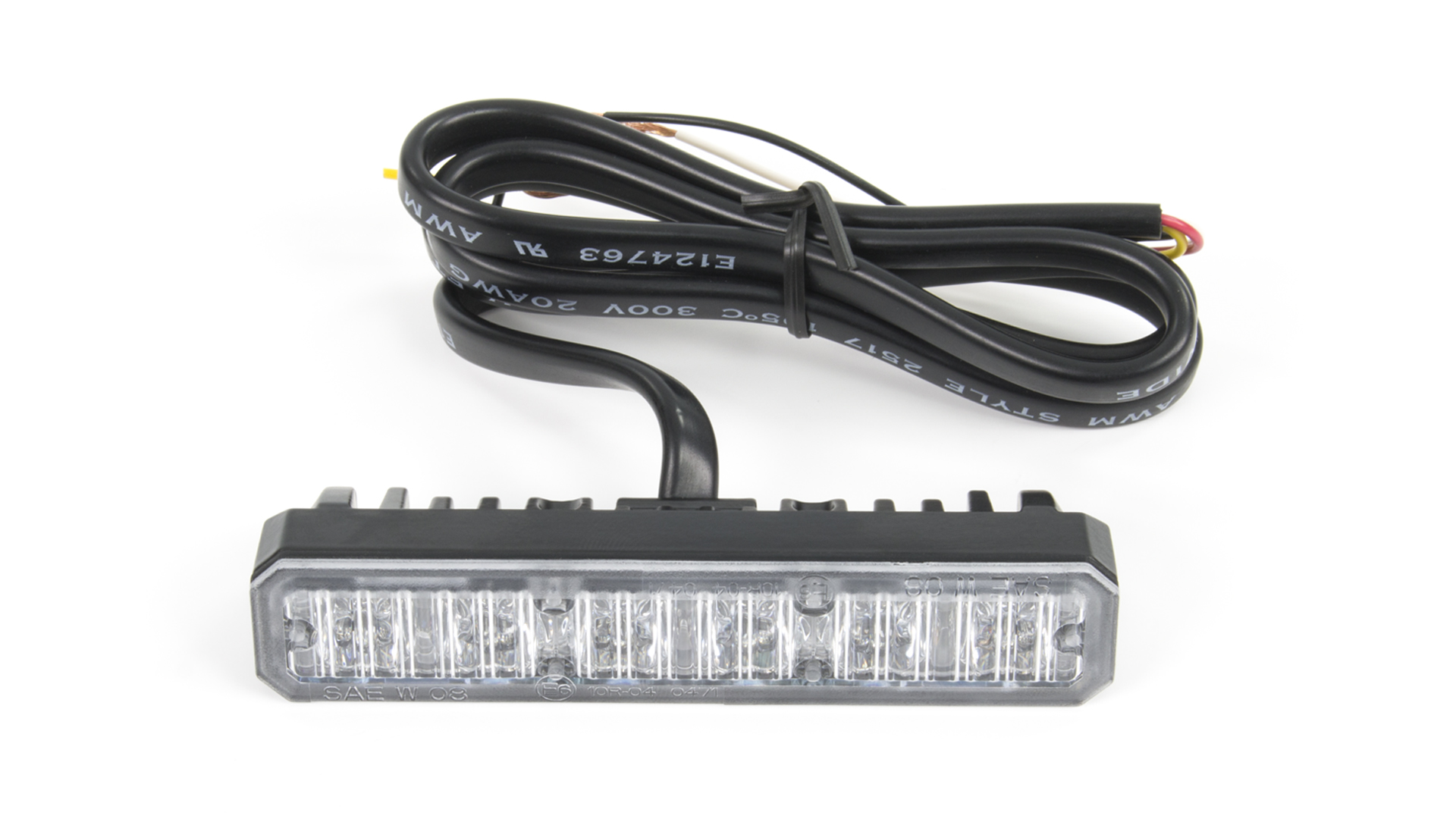

Product code 02040738 Product Name MS6 Warning Module (Hood/Horizontal) Split - Amber/Blue Categories Warning Lights, Directionals, MS6, Mini Stealth, Modules Product Type Products Dimensions Length 107mm (4.2") Dimensions Height 24mm (0.94") Dimensions Width 42mm (1.65") Bezel Colour Black Colour Type Split Colour Storage Temperature -40°C - +75°C Maximum Current 1.15A@12VDC / 0.58A@24VDC Operating Temperature -30°C~+65°C Maximum Power 11.7W Synchronisation 15 Unit Synchronisation LED Colour Amber LEDs, Blue LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE-R10, SAE J595 Class 1, SAE J845 Class 1, CA13 Optic Type T.I.R Optics Input Voltage 12VDC~24VDC Mounting Option Hood Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IP67 Flash Patterns 19 Flash Patterns Wire Length 970mm Mounting Orientation Horizontal Gross Weight 0.20kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
