Specifications
Product Specifications

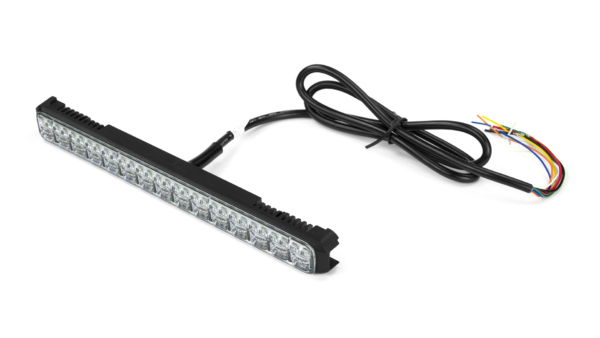

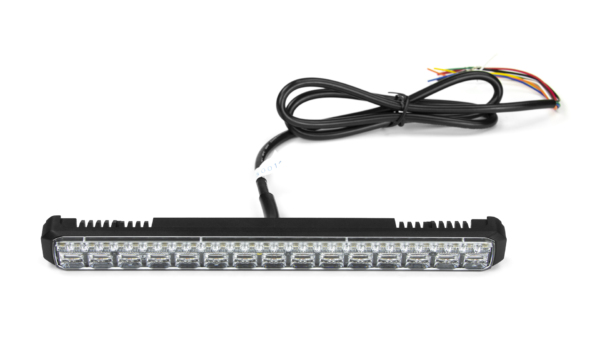

Product code 02260068 Product Name MSP Combo Lamp - White (Upper) & White (Lower) Categories Lighting, Directionals, Modules, MSP Combo Light Product Type Products Dimensions Length 290mm Dimensions Height 30mm Dimensions Width 23mm Colour Type Single Colour Maximum Current 1.87A@12VDC / 0.94A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -40°C to +65°C Maximum Power 22.5W Synchronisation 20 Unit Sync LED Quantity (Halo-Ring/Stripe) 30x (Halo-Ring/Stripe) LEDs LED Colour White LEDs Lens Colour Clear Lens Compliance ECE R7, ECE R10, ECE R148, CISPR25, SAE J595 Class 1, SAE J845 Class 1, California Title 13 Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 15LED IP Rating IPX7 Flash Patterns 39 Flash Patterns Wire Length 1200mm Mounting Orientation Horizontal Warranty 5 Year Warranty -
Mounting
-
