Specifications
Low AMP-drawing 1 LED design.
Even and seamless light output with superb optics design.
Self-contained flasher; optional external flasher control ready.
Weatherproof and vibration resistant design for harsh work environment.

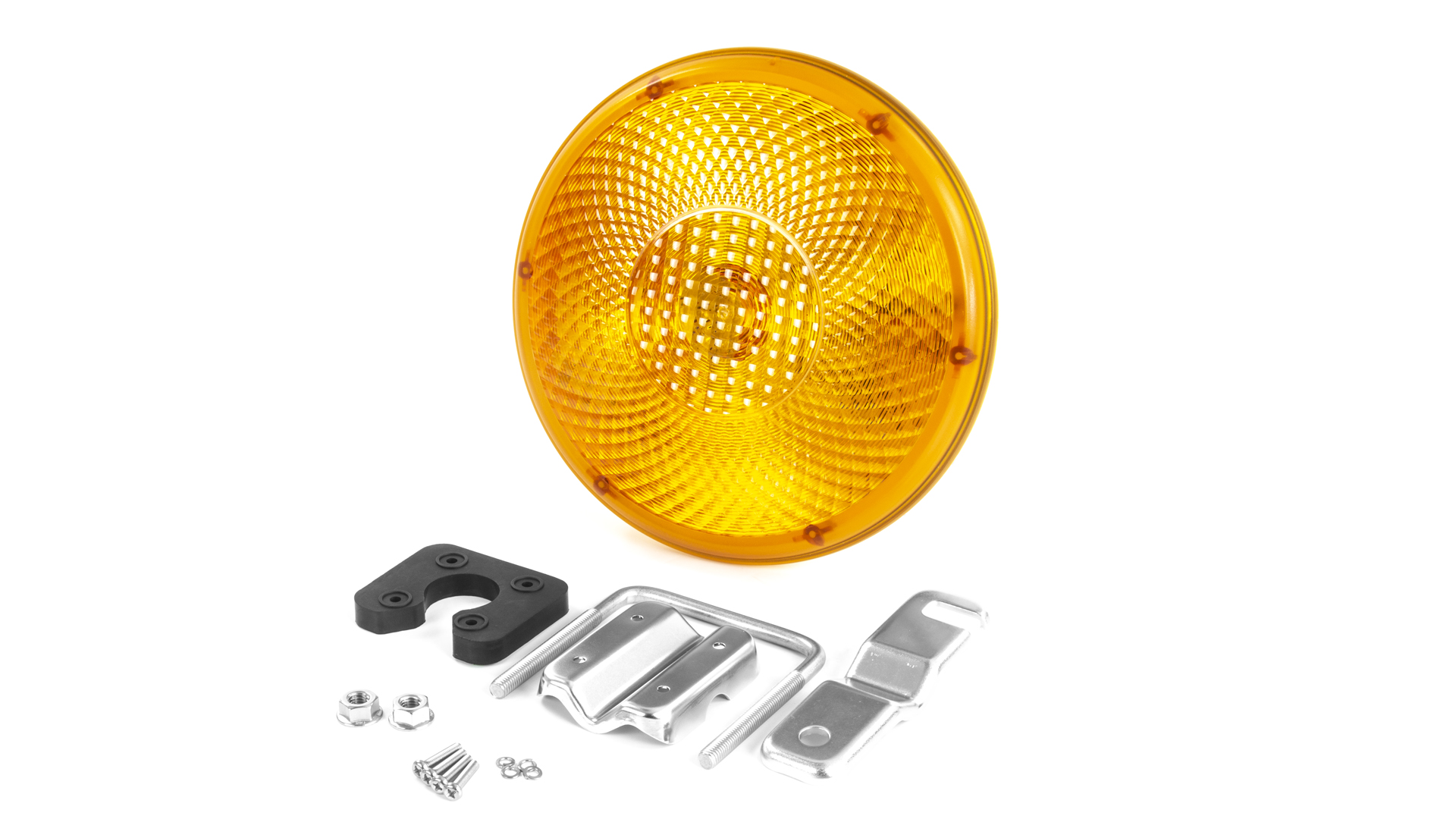

Smart designed for easy clip mount or surface mount installation.
Multi-units synchronization in simultaneous or alternating flash.
Auto-dim function with photocell.
Reverse polarity protection.Product Specifications

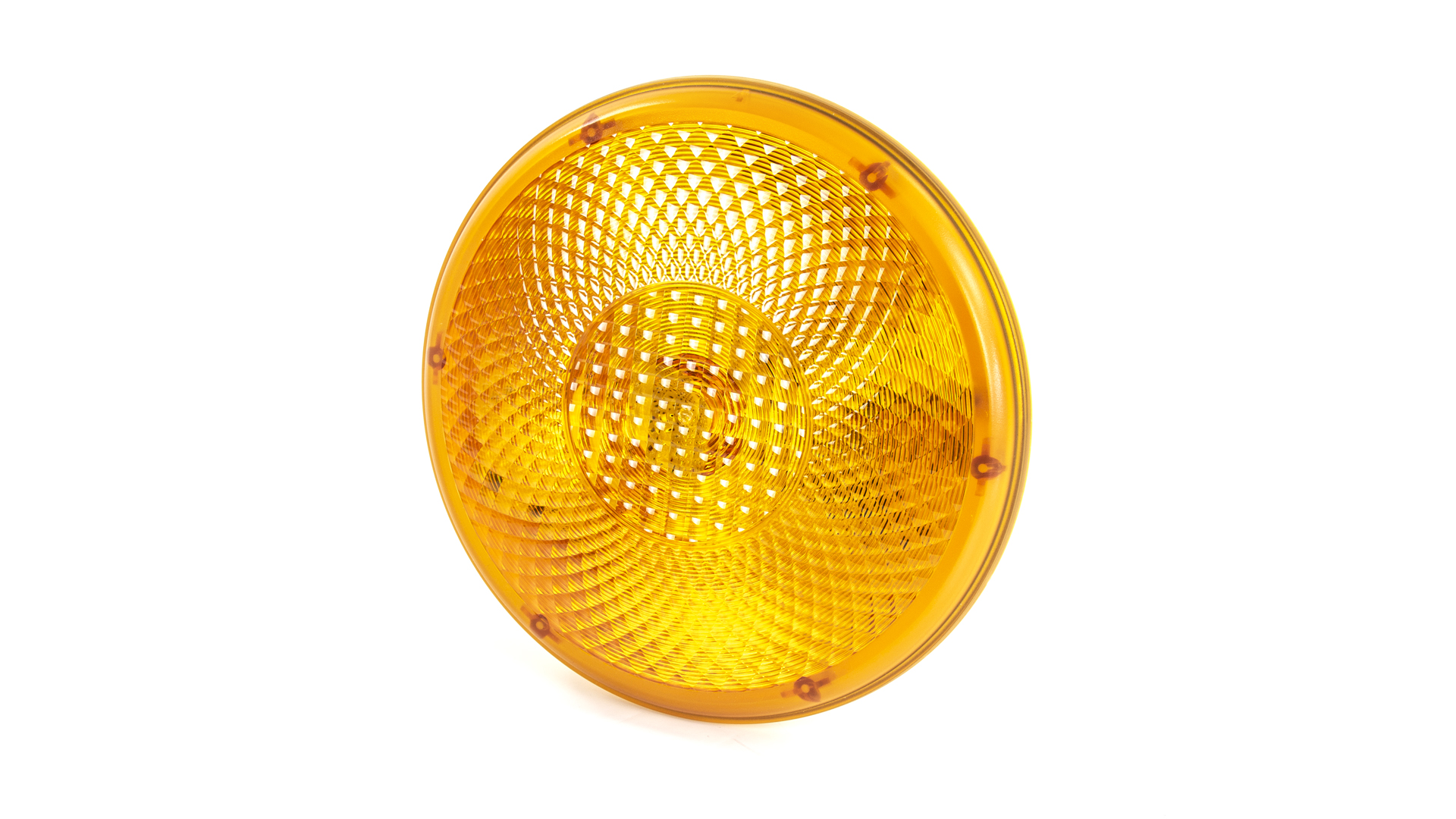

Product code 04010029 Product Name Photon-8H - WA (12~24VDC) Categories Warning Lights, Photon-8H Traffic Warning Light Product Type Products Dimensions Length/width 210mm (08.26") Dimensions Height 210mm (8.26") Dimensions Depth 47.8mm (1.88") Bezel Colour Yellow Colour Type Single Colour Maximum Current 0.32A@12VDC / 0.16A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -40°C~+65°C Maximum Power 3.84W Synchronisation 20 Unit Synchronisation Luminous Intensity 2200 cd Shape Circular LED Colour White LEDs Fuse Rating 1A Lens Colour Amber Lens Compliance ECE-R10, EN12352 L8H Input Voltage 12VDC~24VDC Optic Type Fresnel Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 1x LED IP Rating IPX6 Flash Patterns 3 Flash Patterns Gross Weight 0.7kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 2 Year Warranty -
Mounting
-
