Specifications
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant design for external or internal use.
LEDs rated to 100,000 hours of operation.
Built-in 23 selectable flash patterns.
Reverse polarity protection.Product Specifications
Product code 02030111 Product Name PowerLED4 - BC Categories Warning Lights, Directionals, PowerLED4, Modules, Power LED Product Type Products Dimensions Length/width 122mm (4.8") Dimensions Height 41mm (1.6") Dimensions Depth 29.4mm (1.2") Bezel Colour Black Colour Type Single Colour Maximum Current 0.64A@12VDC / 0.32A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 8W Synchronisation 15 Unit Synchronisation LED Colour Blue LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XB1) Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 4x LEDs IP Rating IP67 Flash Patterns 23 Flash Patterns Wire Length 210mm Mounting Orientation Horizontal Gross Weight 0.01kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-

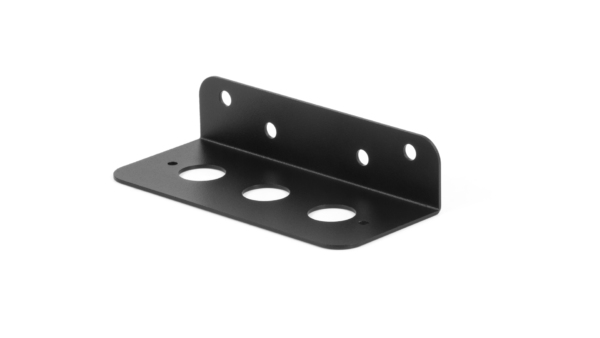

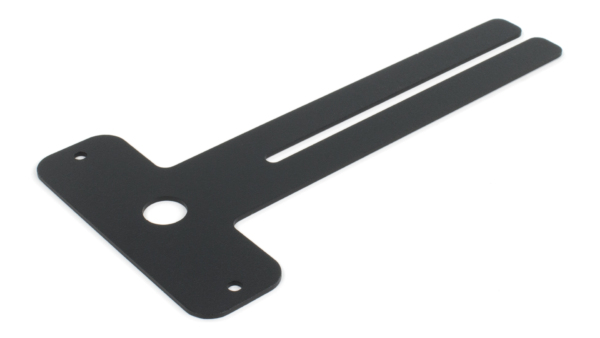

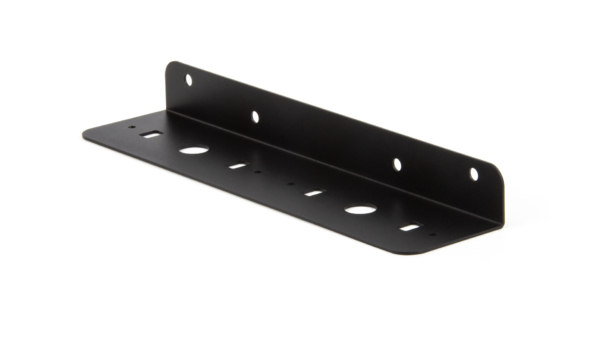

Mounting
-
- Downloads
