Specifications
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant design for external or internal use.
LEDs rated to 100,000 hours of operation.
Built-in 23 selectable flash patterns.
Reverse polarity protection.Product Specifications
Product code 02036502 Product Name PowerLED4 Warning Lighthead - White Categories Lighting, Directionals, PowerLED4, Modules, Power LED Product Type Products Dimensions Length 122mm Dimensions Height 41mm Dimensions Width 29mm Bezel Colour Black Colour Type Single Colour Maximum Current 0.64A@12VDC / 0.32A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 8W Synchronisation 15 Unit Sync LED Colour White LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE R10 Optic Type TIR Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 4LED IP Rating IP67 Flash Patterns 23 Flash Patterns Wire Length 210mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-

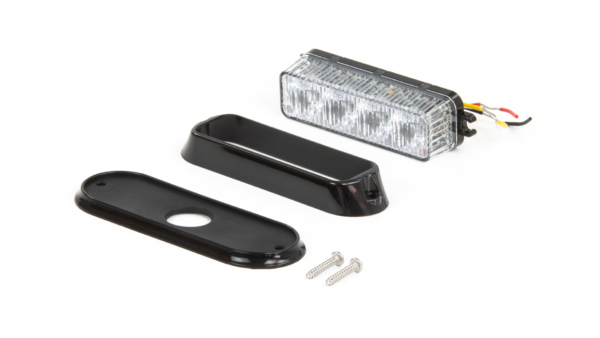

Mounting
-
