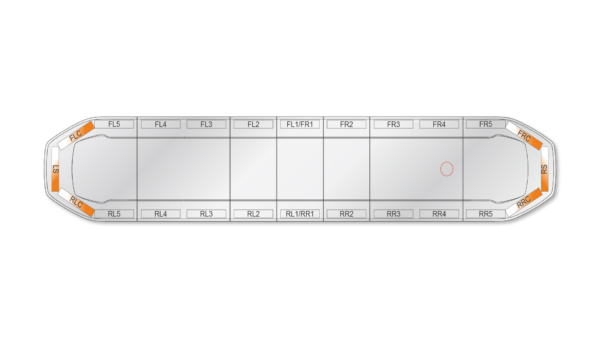

Raiden HE Lightbar, DUAL COLOUR, 1676mm (66″), 72LED, AMBER/WHITE, CLEAR COVERS, ECE R10, ECE R65 (TA2), ICAO, 26 Flash Patterns, Single Harness (2 Power/2 CAN/1 Shield), CAN Control Unit (16 Function), Auto-Dim Sensor, Standard Feet, 12-24VDC.
-
Specifications
Product Specifications
Product code 06601171 Product Name Raiden HE Dual Colour Lightbar 1676mm (66") - AWC Categories Lighting, Raiden, Lightbars, Raiden HE Product Type Products Dimensions Height 40mm Dimensions Width 309mm Colour Type Dual Colour Lightbar Length 1676mm (66") LED Colour Amber/White Cover Colour Clear Cover Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TA2, ICAO, CISPR25, SAE J845 Class 1, California Title 13 Optic Type Linear Optics Nominal Voltage 12-24VDC Mounting Option Standard Low Profile Feet Cable Type Single Harness (2 Power/2 CAN/1 Shield) LED Quantity 72x LEDs Lighthead Quantity 6x Lightheads IP Rating IPX4K Flash Patterns 26 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Wire Length 5000mm CAN Control Unit CAN Control Unit (16 function) Warranty 5 Year Warranty -
