Specifications
Built-in 25 selectable flash patterns.
0.35″ (9mm) Super low-profile thickness.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for internal or external use.
Multi-units synchronization in simultaneous or alternating flash.
LED rated to 100,000 hours of operation.
Aluminium base for heat dissipation.
Reverse polarity protection.Product Specifications
Product code 02160023 Product Name ST26 Warning Lighthead (Horizontal) - Blue Categories Warning Lamps, Super Thin, Directionals, Modules, ST26 Product Type Products Dimensions Length 114.6mm (4.5") Dimensions Height 43.4mm (1.71") Dimensions Width 9mm (0.35") Colour Type Single Colour Maximum Current 1.56A@12VDC / 0.78A@24VDC Maximum Power 18.5W Synchronisation 15 Unit Sync LED Colour Blue LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XB2), SAE J595 Class 1 Optic Type T.I.R Optics Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 12x LEDs IP Rating IPX8 Flash Patterns 25 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Gross Weight 0.10kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-

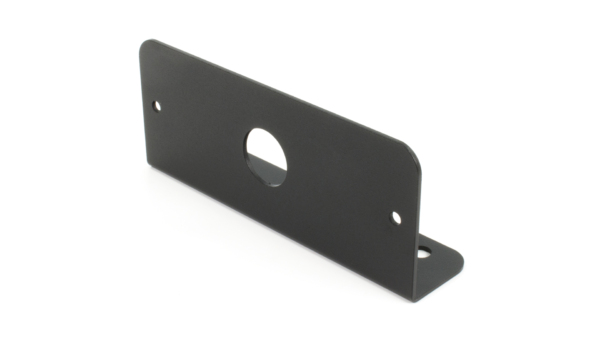

Mounting
-
- Downloads
