Specifications
Product Specifications

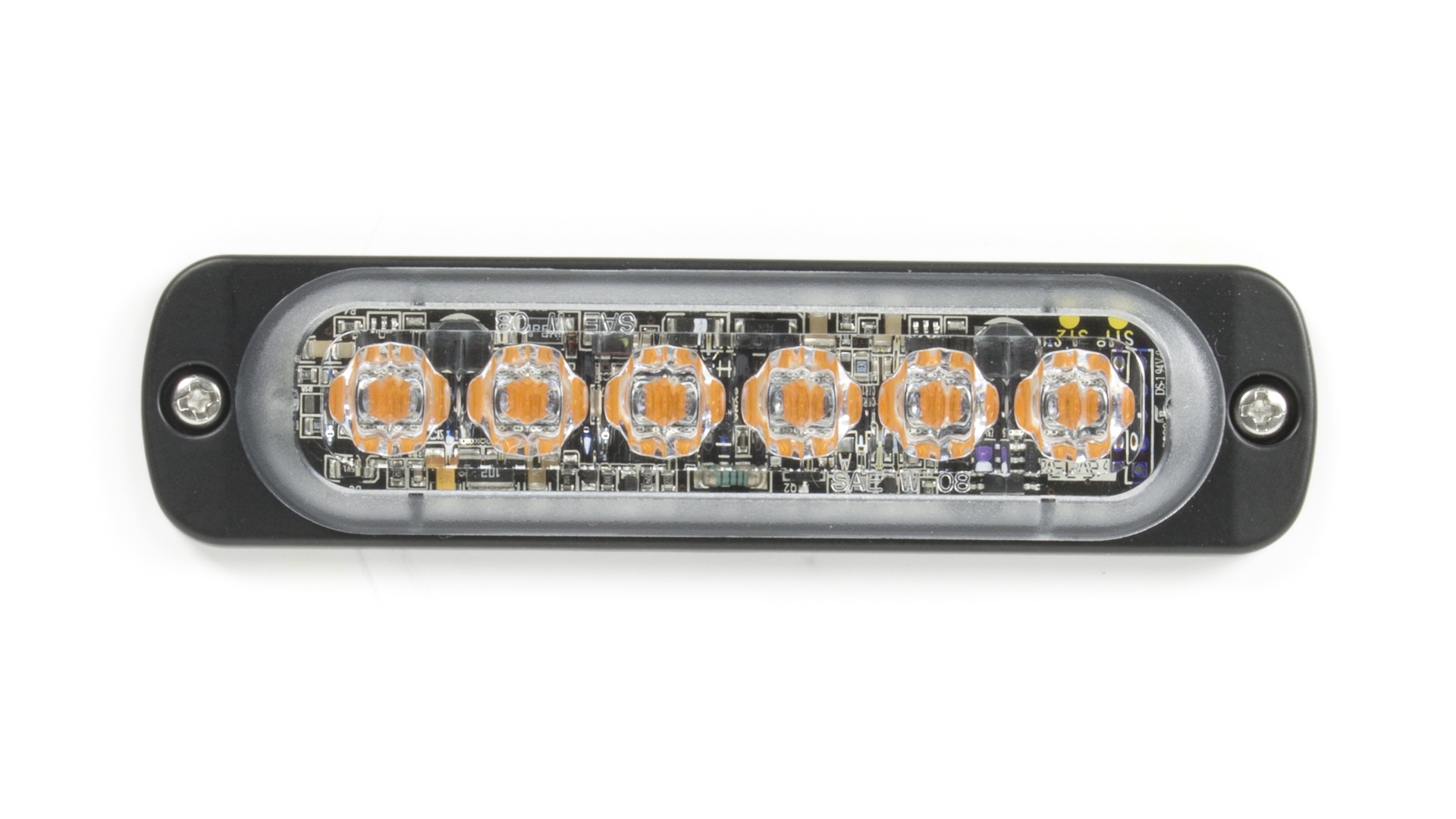

Product code 02160689 Product Name ST6 R65 Class 1 (Horizontal) - AC (Cruise Mode) Categories Warning Lamps, Directionals, Super Thin, ST6, Modules Product Type Products Dimensions Length 112mm (4.4") Default Functions Cruise Light Mode Dimensions Height 28mm (1.10") Dimensions Width 9mm (0.35") Bezel Colour Black Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1A@12VDC / 0.5A@24VDC Operating Temperature -30°C~+65°C Maximum Power 10W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1), SAE J595 Class 1 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IPX7 Flash Patterns 20 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Gross Weight 0.05kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Downloads
