Specifications
Small profile with powerful ECE R65 certified output.
Long life LEDs technology rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Fully weatherproof and vibration resistant design for external or internal use.
All-in-one self-contained for easy and versatile installation without external flasher.
Aluminium base for efficient heat dissipation and maximum durability.
Multi-units synchronization in simultaneous or alternating flash.
Reverse polarity protection.Product Specifications

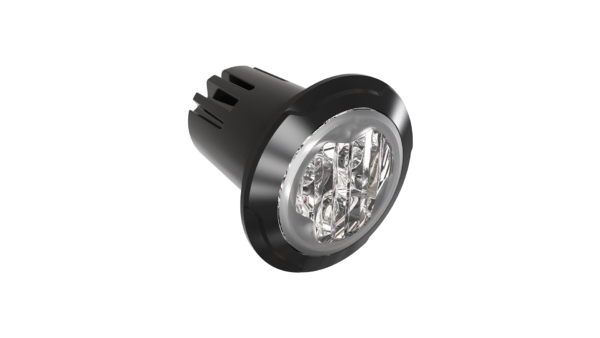

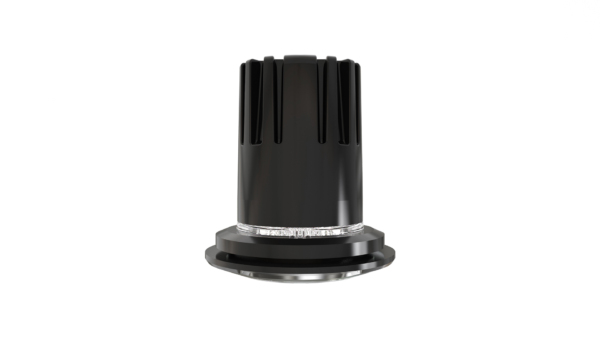

Product code 02060286 Product Name UR03 Warning Lighthead - Blue Categories Lighting, UR03 Self-contained Warning Lighthead, Modules, Covert Hideaways Product Type Products Dimensions Width 39mm Colour Type Single Colour Maximum Current 0.77A@12VDC / 0.39A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -40°C to +70°C Maximum Power 9.24W Synchronisation 15 Unit Sync Diameter ⌀36mm LED Colour Blue LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XB1, SAE J595 Class 1, SAE J845 Class 1 Nominal Voltage 12-24VDC Mounting Option Surface Recessed Mount Cable Type Cable (Pigtail) LED Quantity 3LED IP Rating IPX7 Flash Patterns 16 Flash Patterns Wire Length 200mm Conductor Cross-Section 0.25mm² (24AWG) Warranty 5 Year Warranty -
