Specifications

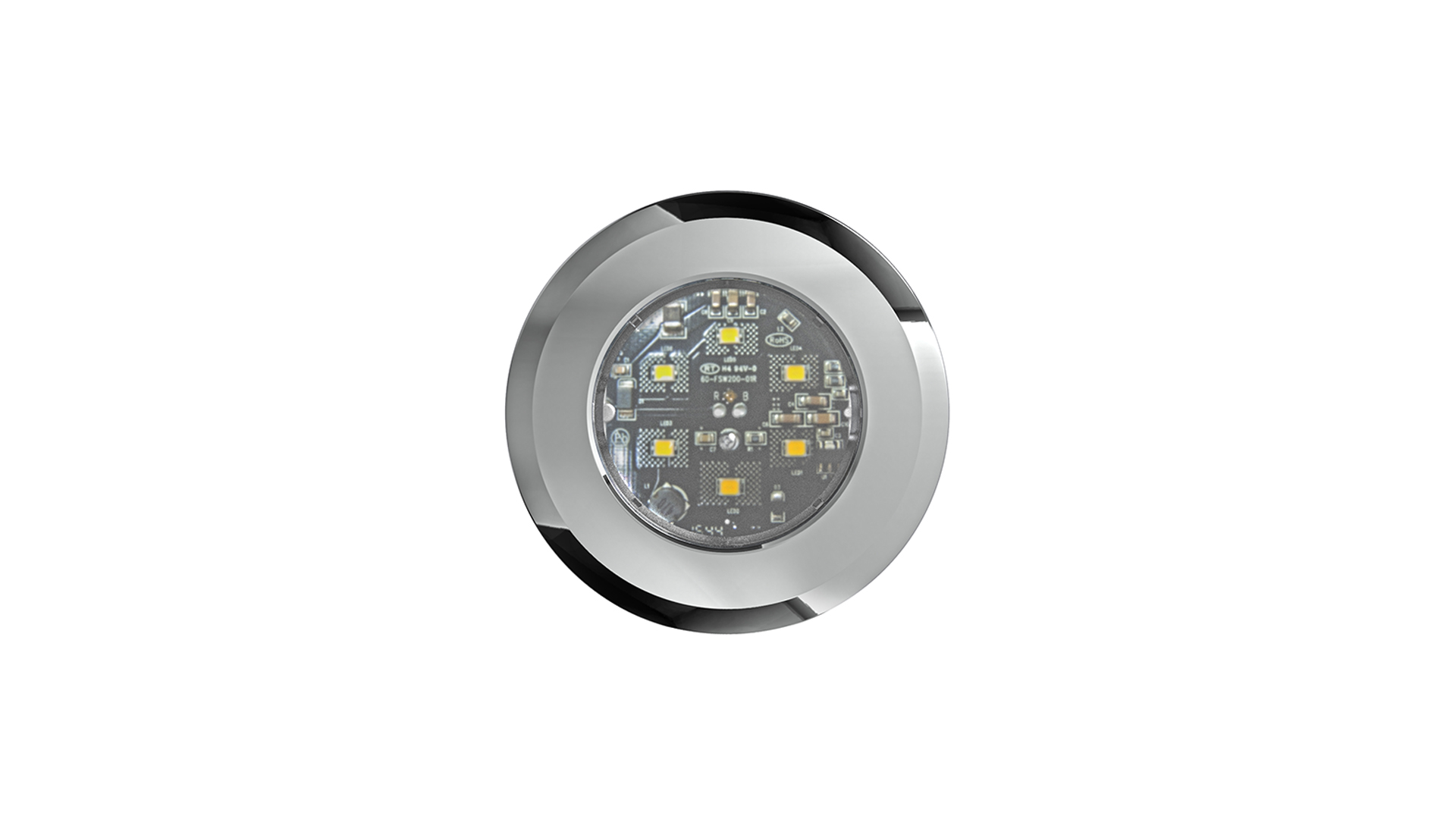

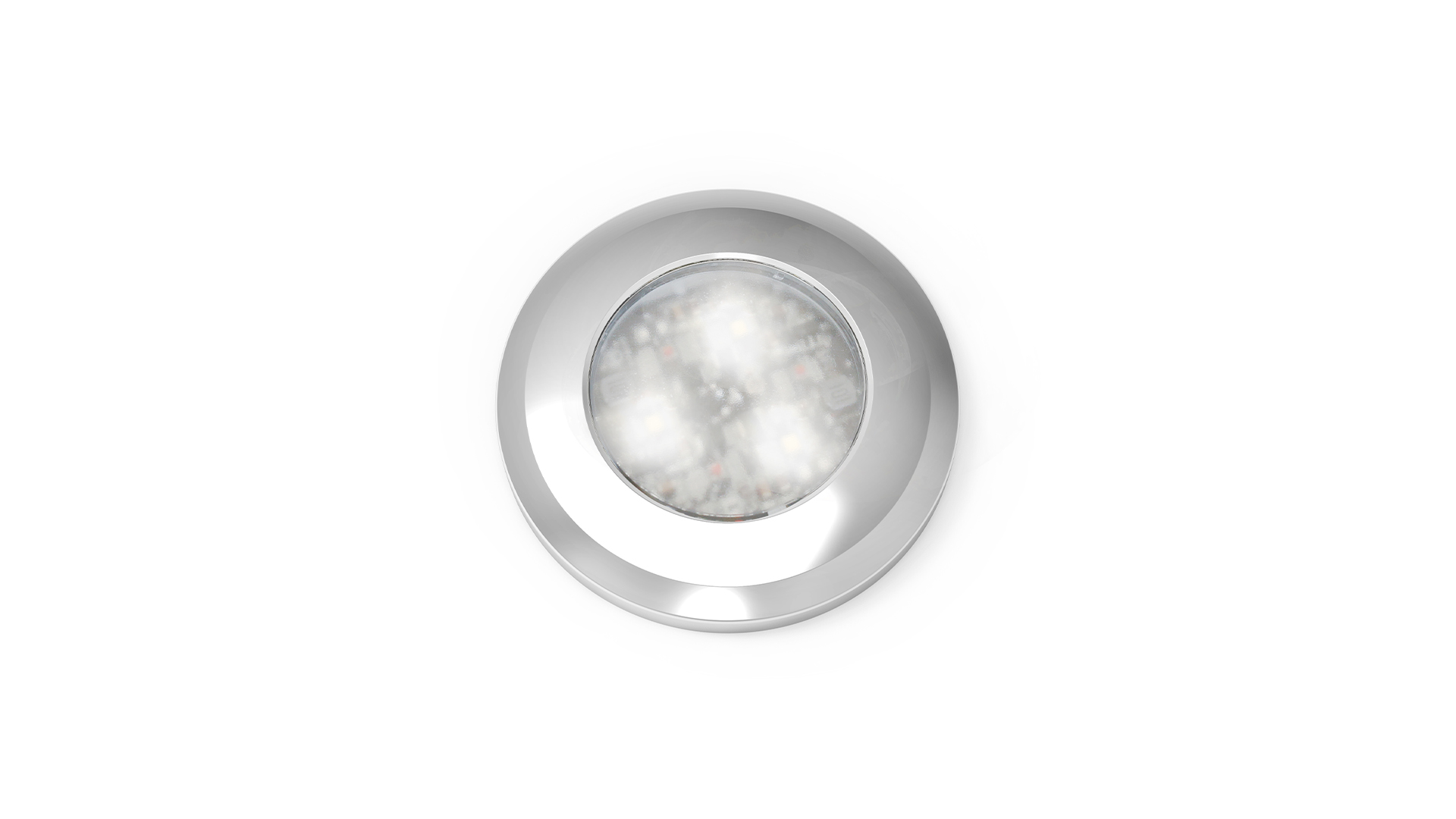

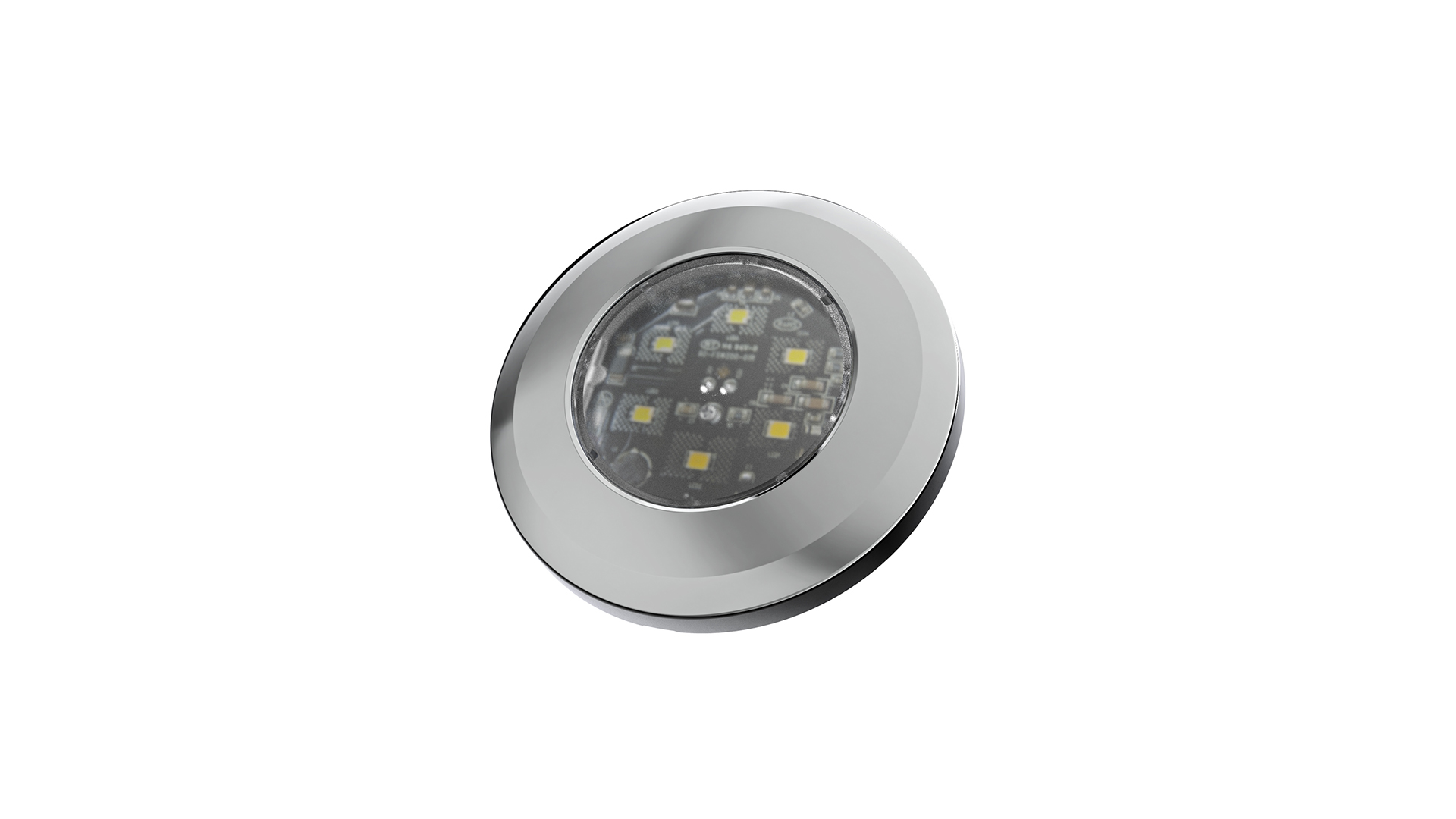

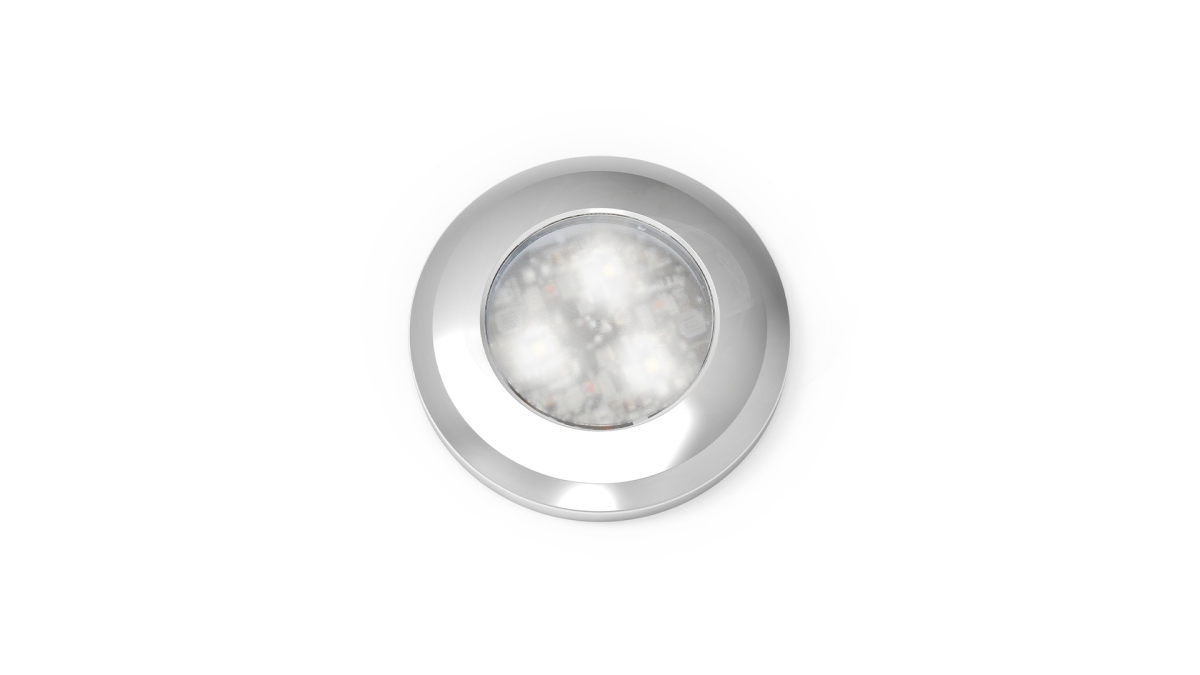

Circular interior light for small area illumination, 390 raw lumens of white light.

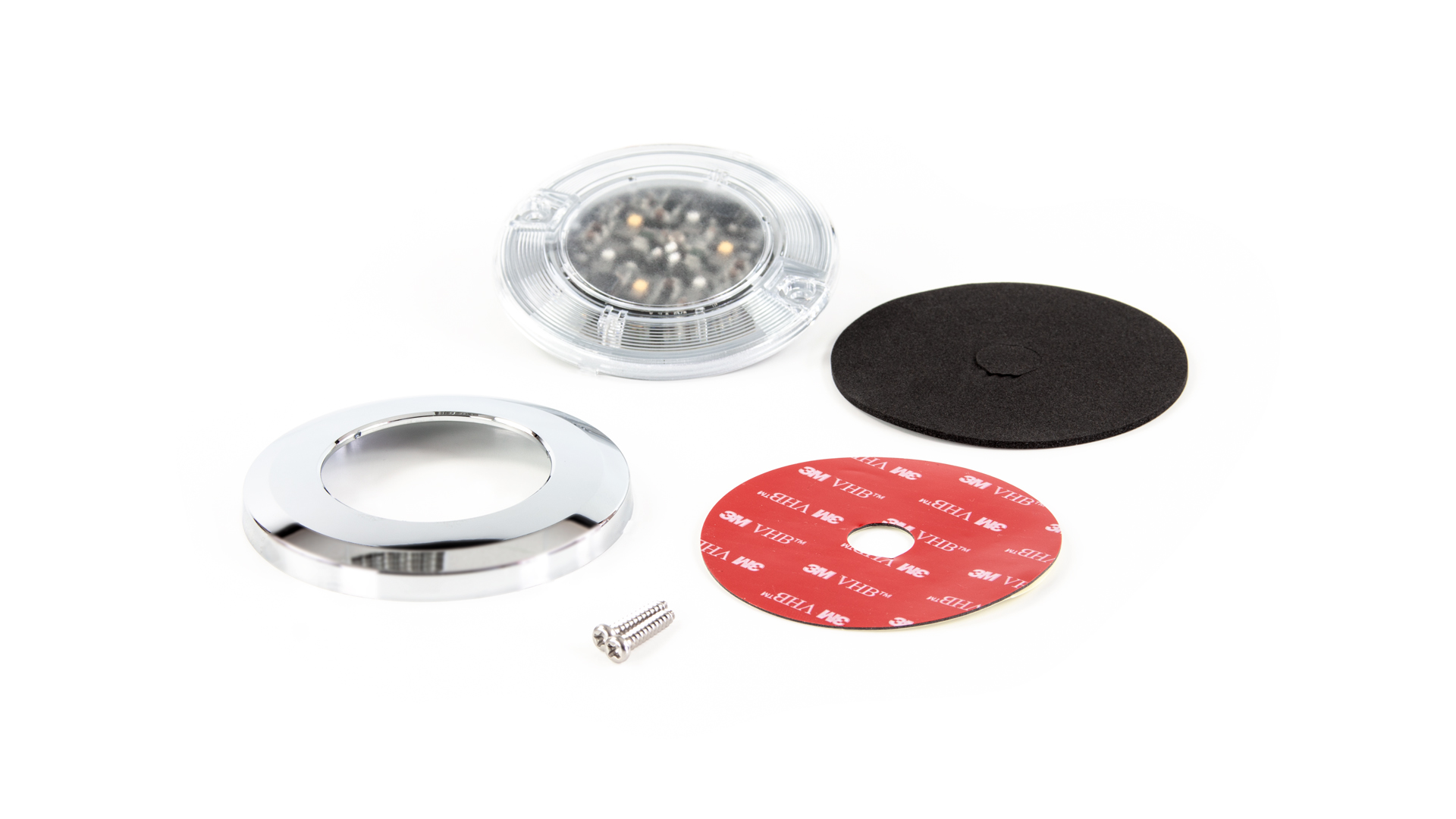

Versatile mounting by using either the 2 included self-tapping screws or the included double-sided self-adhesive pad.

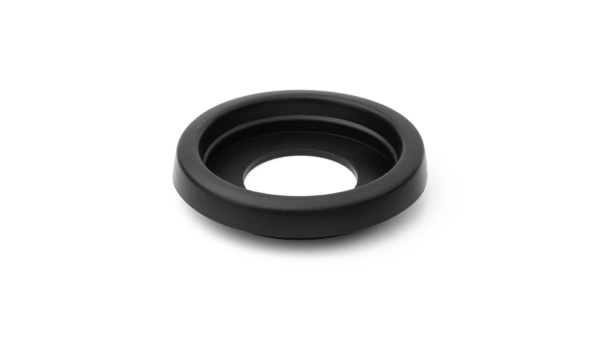

The lamp can also be panel mounted by using the specially designed Flush Mount Rubber Grommet which is separately available.
Aluminium base for efficient heat dissipation and maximum durability.
Waterproof IPX8 rating for both exterior and interior applications.
Reverse polarity protection.Product Specifications
Product code 03080030 Product Name WLJ Interior Lamp - Red/White Categories Lighting, Interior Lamps, WLJ, Illumination Product Type Products Dimensions Height 10mm Bezel Colour Chrome Colour Type Dual Colour Maximum Current 0.45A@12VDC / 0.23A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 5.4W Diameter ⌀66mm LED Colour Red/White Fuse Rating 1A Lens Colour Clear Lens Compliance ECE R10, CISPR25 Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IPX8 Wire Length 200mm Raw Lumens Max. 170.4lm Conductor Cross-Section 0.5mm² (20AWG) Warranty 3 Year Warranty -
Mounting
-
- Downloads
