Your request has been sent to the Cell2 LTD sales team. We will be in touch shortly. Please look out for the Item price appearing on the website. Thank you
EAN: 06060091

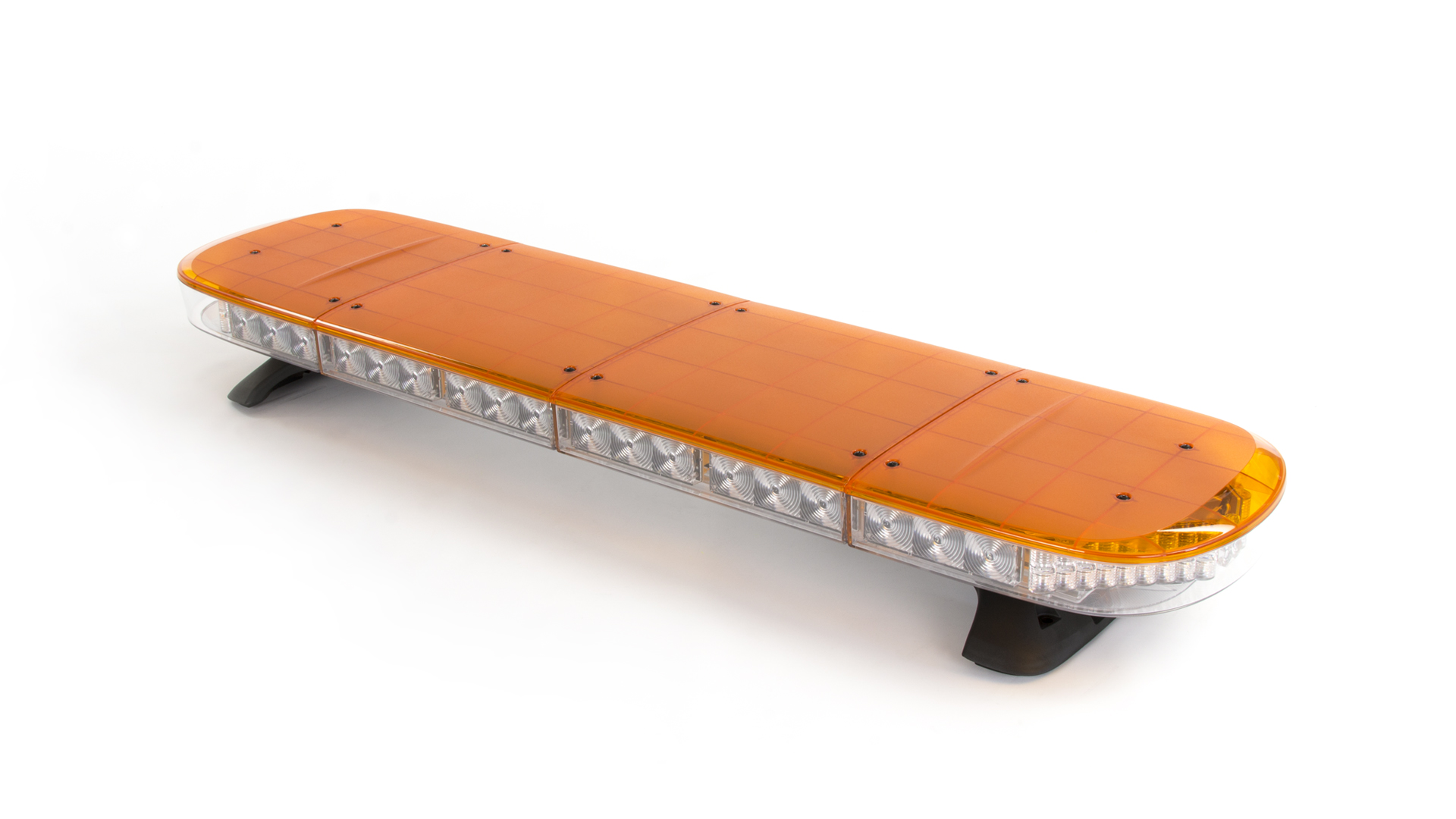

Aegis Dual Colour Lightbar, 1210mm (47.6″), 72x AMBER/BLUE LEDs, AMBER COVERS, ECE R10, ECE R65 (TA2/TB2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 12VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.Product Specifications
Product code 06060091 Product Name Aegis DC 1210mm (47.6") - ABA (12VDC) Categories Warning Lights, Aegis DC Standard, Lightbars, Aegis Dual Colour, Aegis Product Type Products Dimensions Length/width 1210mm (48") Dimensions Height 83mm (3.25") Dimensions Depth 310mm (12.2") Colour Type Dual Colour Fuse Rating 32A Maximum Current 23.3A@12.8VDC Lightbar Length 1210mm (47.6") LED Colour Amber LEDs, Blue LEDs Cover Colour Amber Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA2), ECE-R65 (TB2), SAE J845 Class 1, CA13 Optic Type D-Fuser Optics Input Voltage 12VDC Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power) LED Elements 72x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Net Weight 18.6kg Gross Weight 19.6kg Warranty 5 Year Warranty -
Spare Parts
-
- Lightheads
- Single Colour
- 3x LEDs
- 2 Pin Connector
- Spot Optics
-
- Lightheads
- Dual Colour
- 12x LEDs
- Smaller 3 Pin Connector
- Linear Optics
-
- Lightheads
- Single Colour
- 6x LEDs
- Smaller 3 Pin Connector
- Spot Optics
-
- Lightheads
- Single Colour
- 9x LEDs
- Smaller 3 Pin Connector
- Spot Optics
-
- Lightheads
- Dual Layer
- 12x LEDs (6 per Level)
- Linear Optics, T.I.R Optics
- 12VDC
-
- Lightheads
- Dual Layer
- 12x LEDs (6 per Level)
- Linear Optics, T.I.R Optics
- 12VDC
-
- Lightheads
- Dual Layer
- 12x LEDs (6 per Level)
- Linear Optics, T.I.R Optics
- 12VDC
-
-
-
-
-
- Lightheads
- Dual Colour
- 18x LEDs
- Smaller 3 Pin Connector
- D-Fuser Optics
-
- Lightheads
- Dual Colour
- 18x LEDs
- Smaller 3 Pin Connector
- D-Fuser Optics
-
-
-
-
Mounting
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Wide Feet
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Narrow Feet
-
-
- Powder-Coated Aluminium
- Black
- MS3 - Extrusion Bracket
-
- Powder-Coated Aluminium
- Black
- MS3 - A006 Mounting Bracket
-
- Powder-Coated Aluminium
- Black
- Mount Kit (Adjustable A006)
-
- Powder-Coated Aluminium
- Black
- Mount Kit (Adjustable Bolt)
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Wide Feet
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Narrow Feet
-
- Powder-Coated Aluminium
- Black
- Standard Bolt Mount Brackets
-
- Downloads
