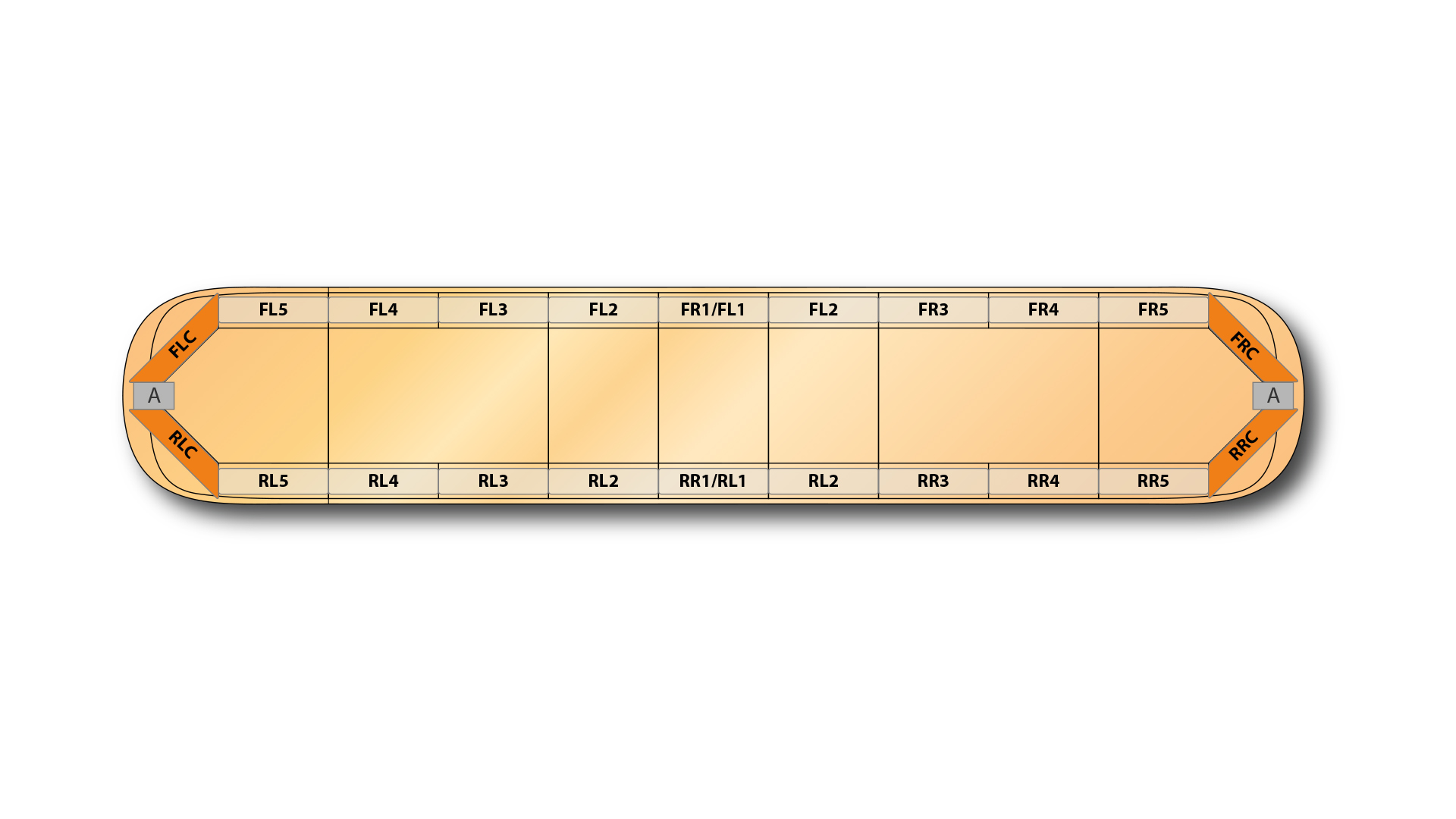

Aegis HE Lightbar, 1678mm (66.1″), 36x AMBER LEDs, AMBER COVERS, ECE ECE R10, R65 (TA2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with a solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.Product Specifications
Product code 06030629 Product Name Aegis HE 1678mm (66.1") - AA (24VDC) Categories Warning Lights, Aegis HE Standard, Aegis High End, Lightbars, Aegis Product Type Products Configurations (available Alley Lights, Take-Downs, Steady On Dimensions Length 1678mm (66") Default Functions Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Take-Down Lights (2 heads, Traffic Director - Rear Left Arrow., Hi/Low Power (50%, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 83mm (3.25") Dimensions Width 310mm (12.2") Colour Type Single Colour Lightbar Length 1678mm (66.1") LED Colour Amber LEDs Cover Colour Amber Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA2), SAE J845 Class 1, CA13 Optic Type D-Fuser Optics Input Voltage 24VDC Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power) LED Quantity 36x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 22.6kg Gross Weight 23.6kg Dummy Bracket Qty 18x Dummy Plates Warranty 5 Year Warranty -
