Specifications
Affordable with simplified function but no compromise in brightness.
Certified powerful ECE R65 performance provides optimum 360 degree coverage.
Unobtrusive design with ultra low-profile dome for lower wind resistance.
Durable polycarbonate lens is available in Amber and Clear.
Multiple mounting options for all vehicle applications.
Weatherproof and vibration resistance design.
50,000 hours rated Long-Life LED.Product Specifications

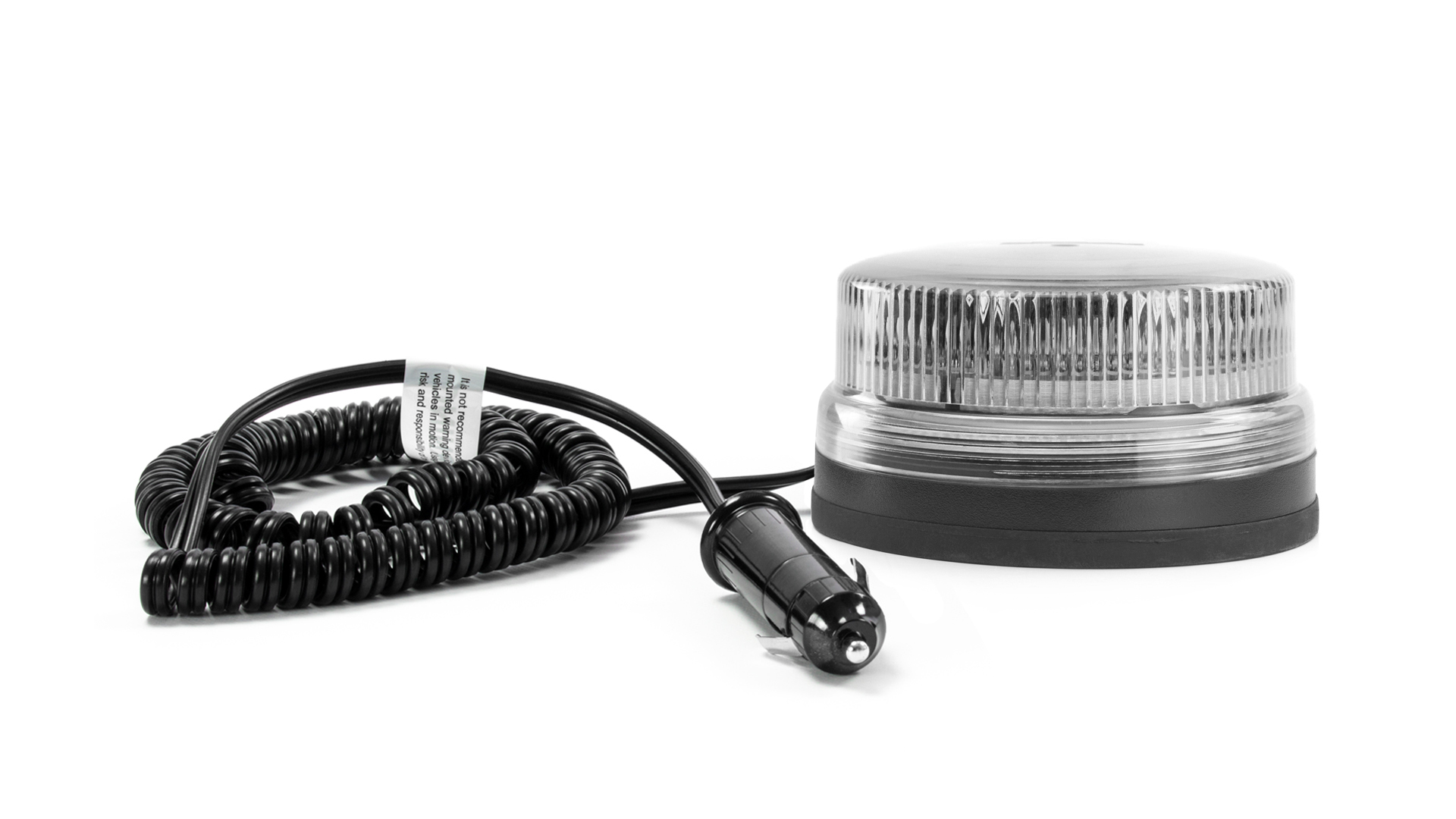

Product code 05160211 Product Name B22 LITE Beacon - AC (Magnetic/Standard - Internal) Categories Lighting, Beacons, B22 Lite, B22 Beacon Product Type Products Dimensions Height 58mm Colour Type Single Colour Maximum Current 2.45A@12VDC / 1.37A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 33W Connection Type Cigar Plug Diameter ⌀142mm LED Colour Amber LEDs Fuse Rating 4A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TA1 Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Coiled) LED Quantity 16x LEDs IP Rating IPX5 Flash Patterns 1 Flash Pattern Wire Length 2500mm Conductor Cross-Section 0.75mm² (18AWG) Warranty 5 Year Warranty -
Downloads
Cell2_B22-LITE_SpecSheet_EN
pdf
402.96 KB
Download
Cell2_B22-LITE_UserManual_EN
pdf
292.39 KB
Download
Cell2_B22-LITE_SpecSheet_ES
pdf
405.21 KB
Download
Cell2_B22-LITE_UserManual_ES
pdf
1.83 MB
Download
Cell2_B22-LITE_SpecSheet_DE
pdf
4.14 MB
Download
Cell2_B22-LITE_UserManual_DE
pdf
2.72 MB
Download
Cell2_B22-LITE_SpecSheet_IT
pdf
4.15 MB
Download
Cell2_B22-LITE_UserManual_IT
pdf
2.71 MB
Download
