Specifications
Non-volatile memory recalls last flash pattern used at power up.
LEDs rated to 100,000 hours of operation.
Aluminium extrusion for heat dissipation.
Reverse polarity protection.
Waterproof connectors.Product Specifications

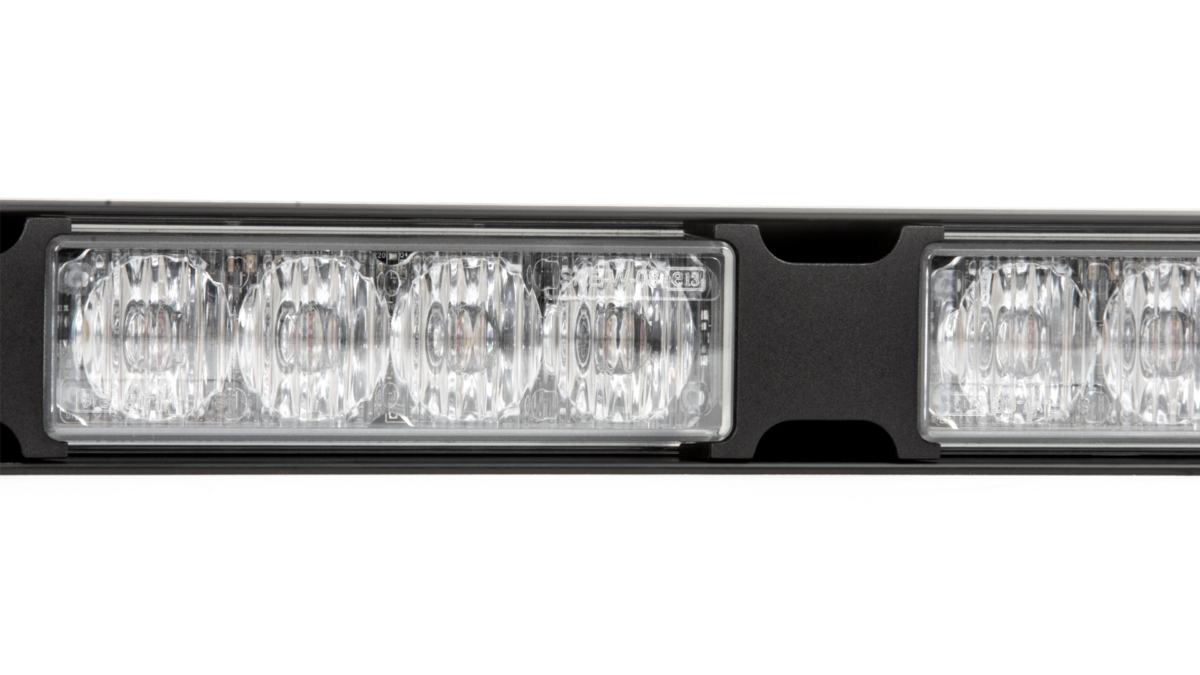

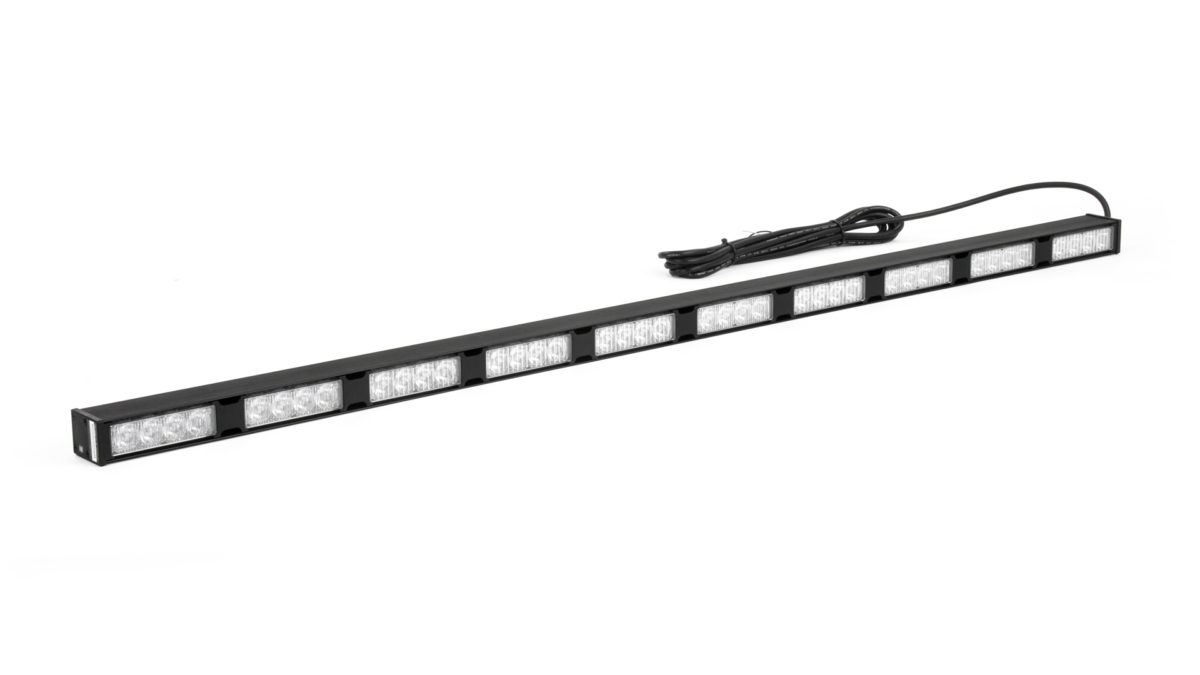

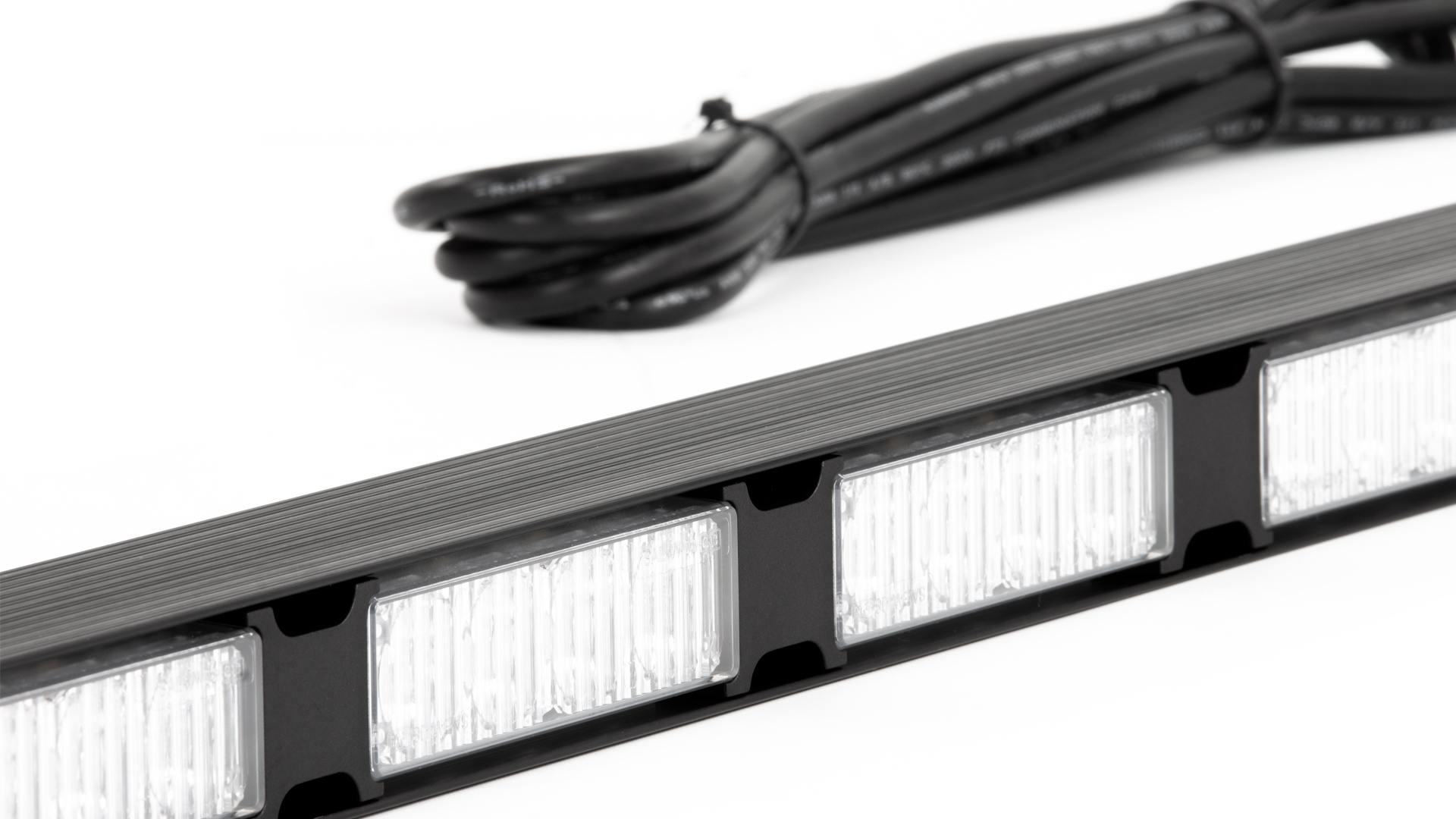

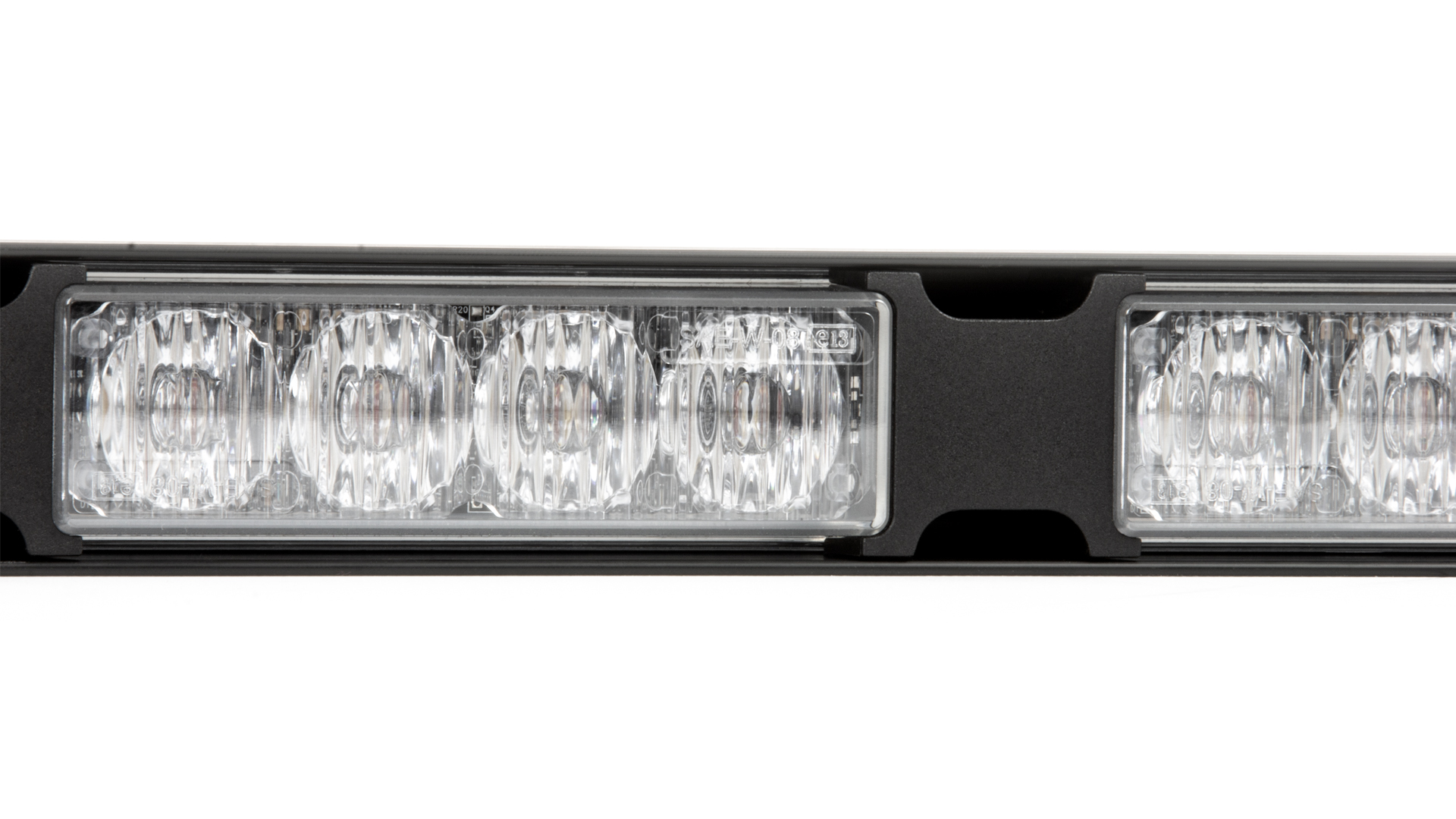

Product code 01030112 Product Name Commander SE4 Traffic Director (10 Lighthead) - A10 Categories Warning Lights, Commander SE4, Traffic Advisors Product Type Products Dimensions Length/width 1470mm (57.87") Dimensions Height 46mm (1.80") Dimensions Depth 57mm (2.25") Material Colour Black Colour Type Single Colour Maximum Current 5.20A@12.8VDC / 2.60A@24VDC Operating Temperature -30°C~+65°C Traffic Advisor Length 1470mm (57.9") LED Colour Amber LEDs Traffic Director Functions Warning Mode, End Flashers, Traffic Arrow Lens Colour Clear Lens Compliance ECE-R10 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Cable Type 1 Cable Harness (6 Function/2 Power) LED Elements 40x LEDs Lighthead Quantity 10x Lightheads Warranty 5 Year Warranty IP Rating IP67 Net Weight 4.33kg Gross Weight 4.5kg -
Spare Parts
-
- Chassis
- Warning Mode, End Flashers, Traffic Arrow
- 2 Pin Connector
- 1 Cable Harness (6 Function/2 Power)
- 10x Lightheads
-
- Power Harness, End Caps
- 1 Cable Harness (6 Function/2 Power)
-
-
-

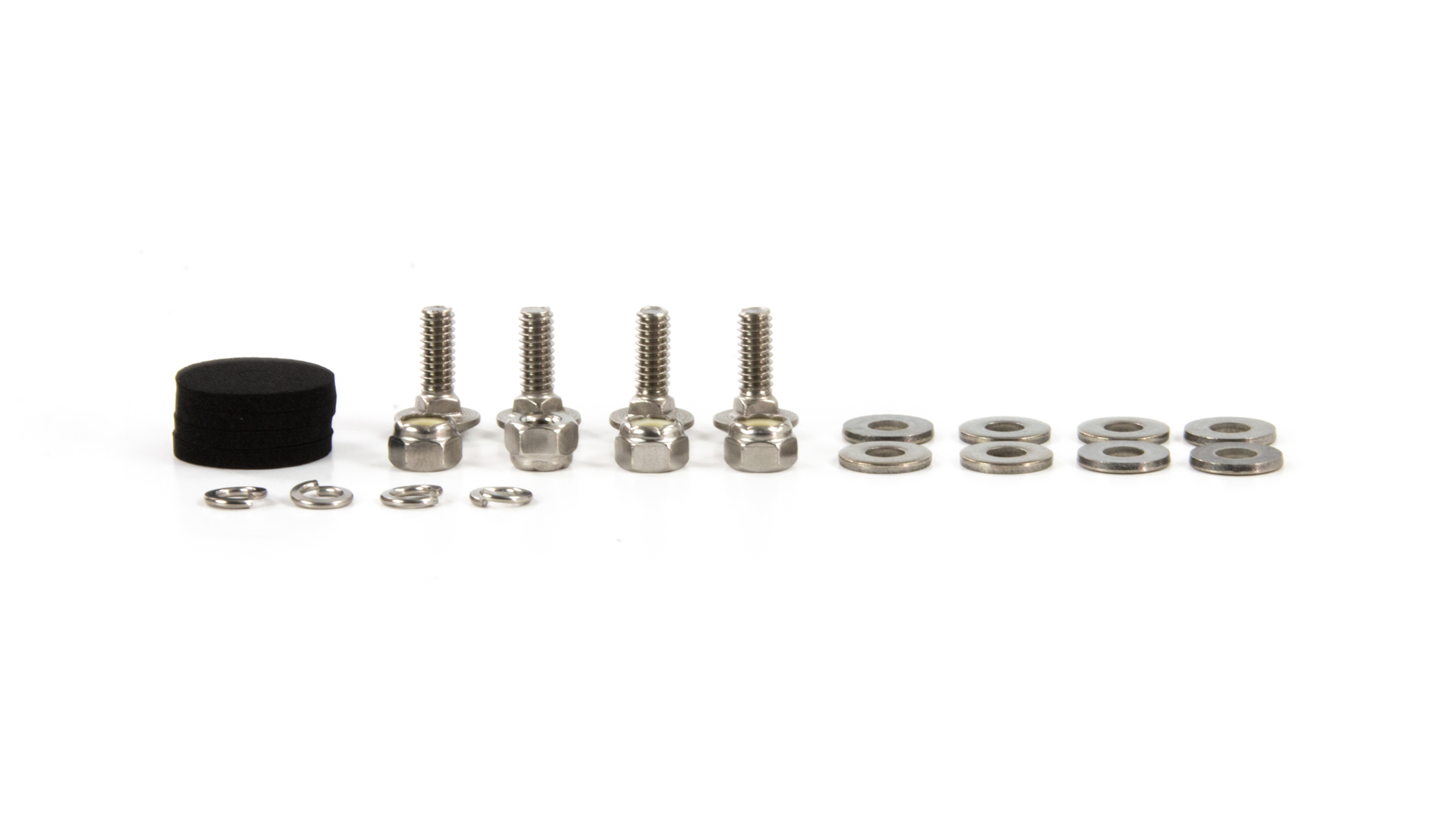

Mounting
-
- Powder-Coated Aluminium
- Surface Mount (Horizontal)
-
-
- Powder-Coated Aluminium
- Angle Adjustable Bracket
-
